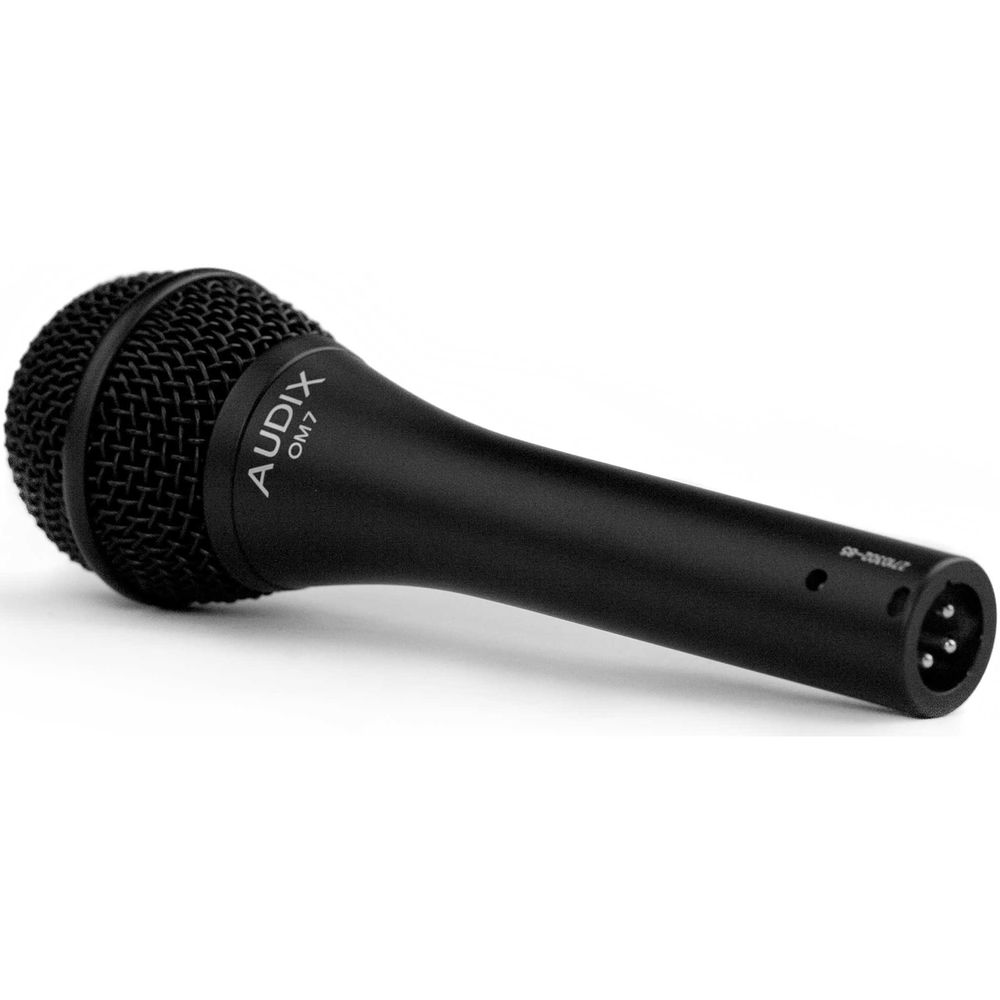

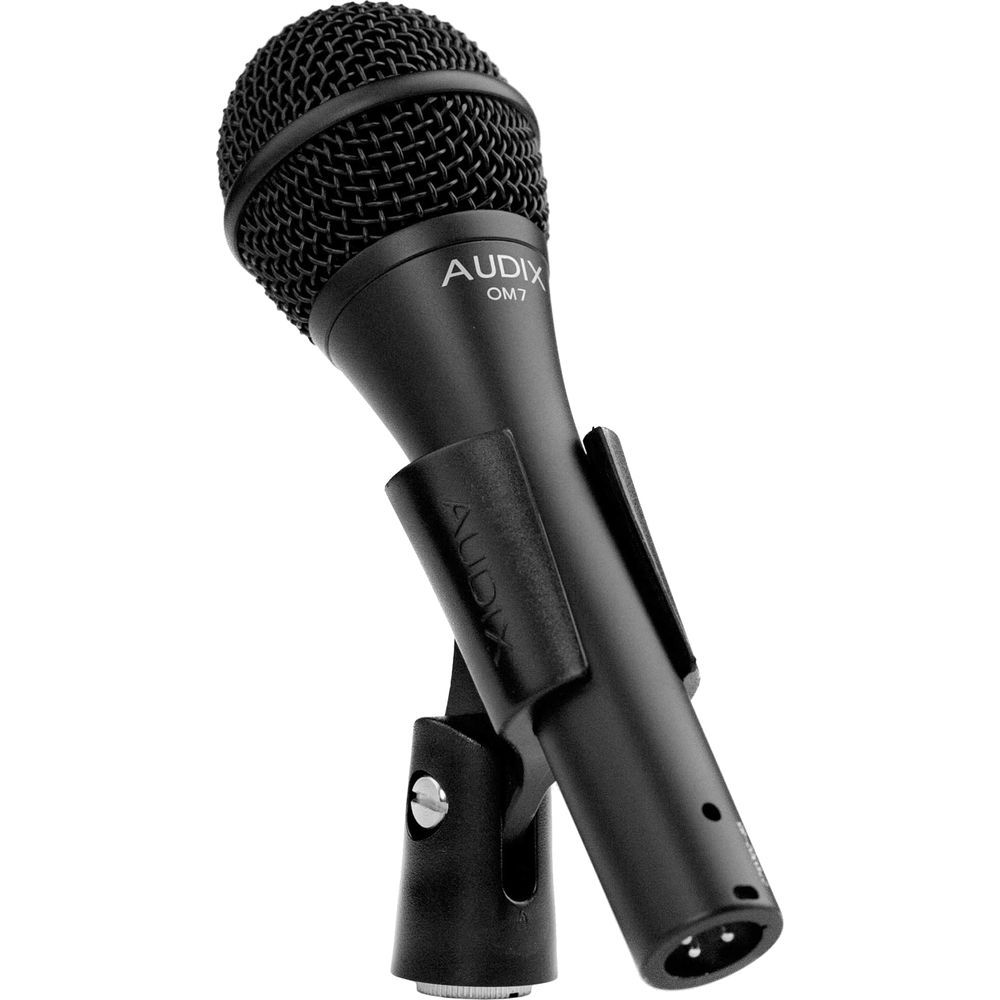

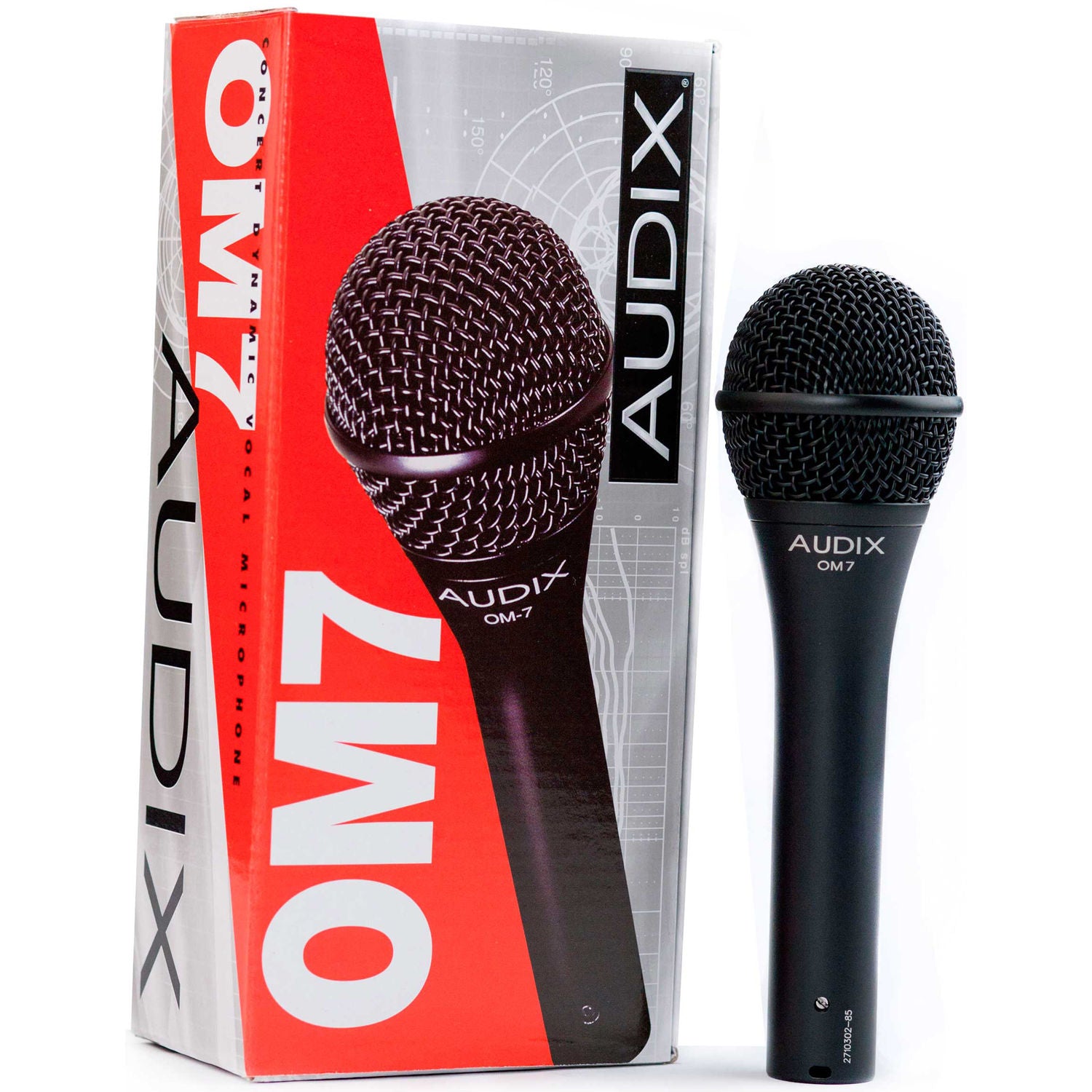

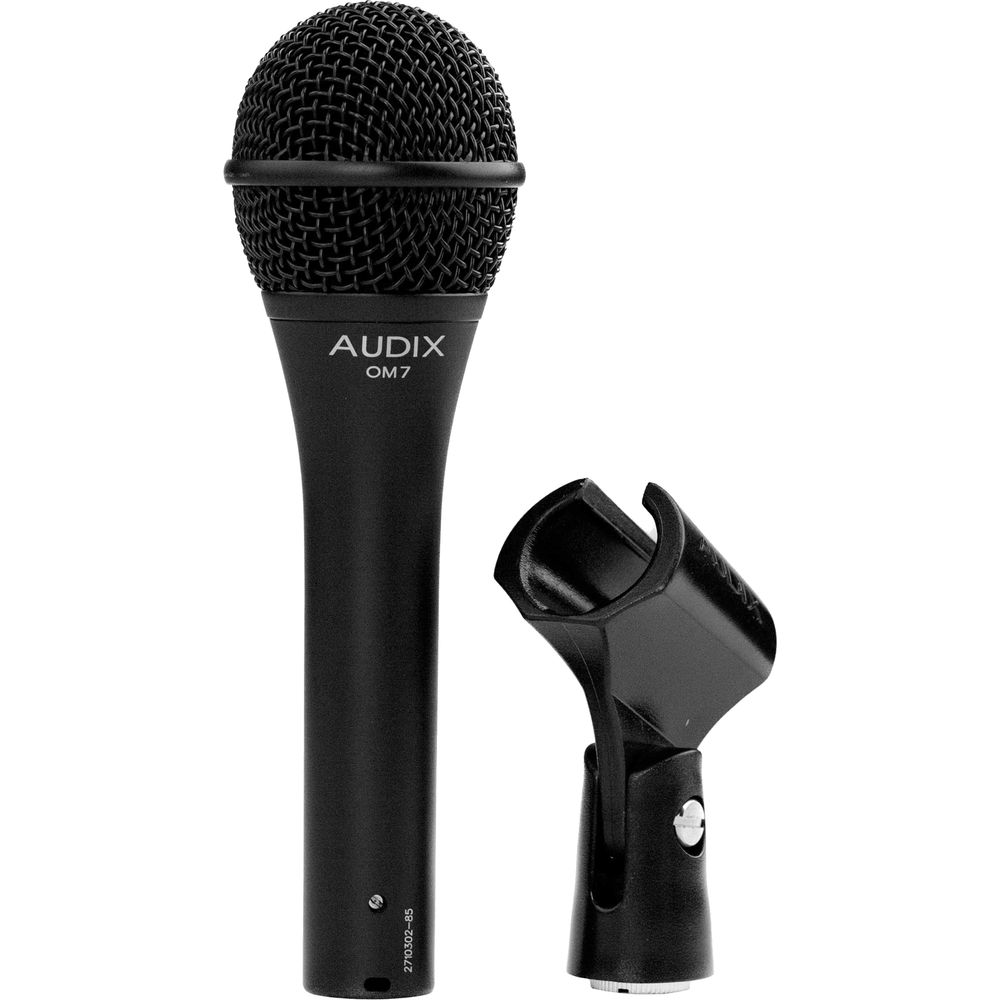

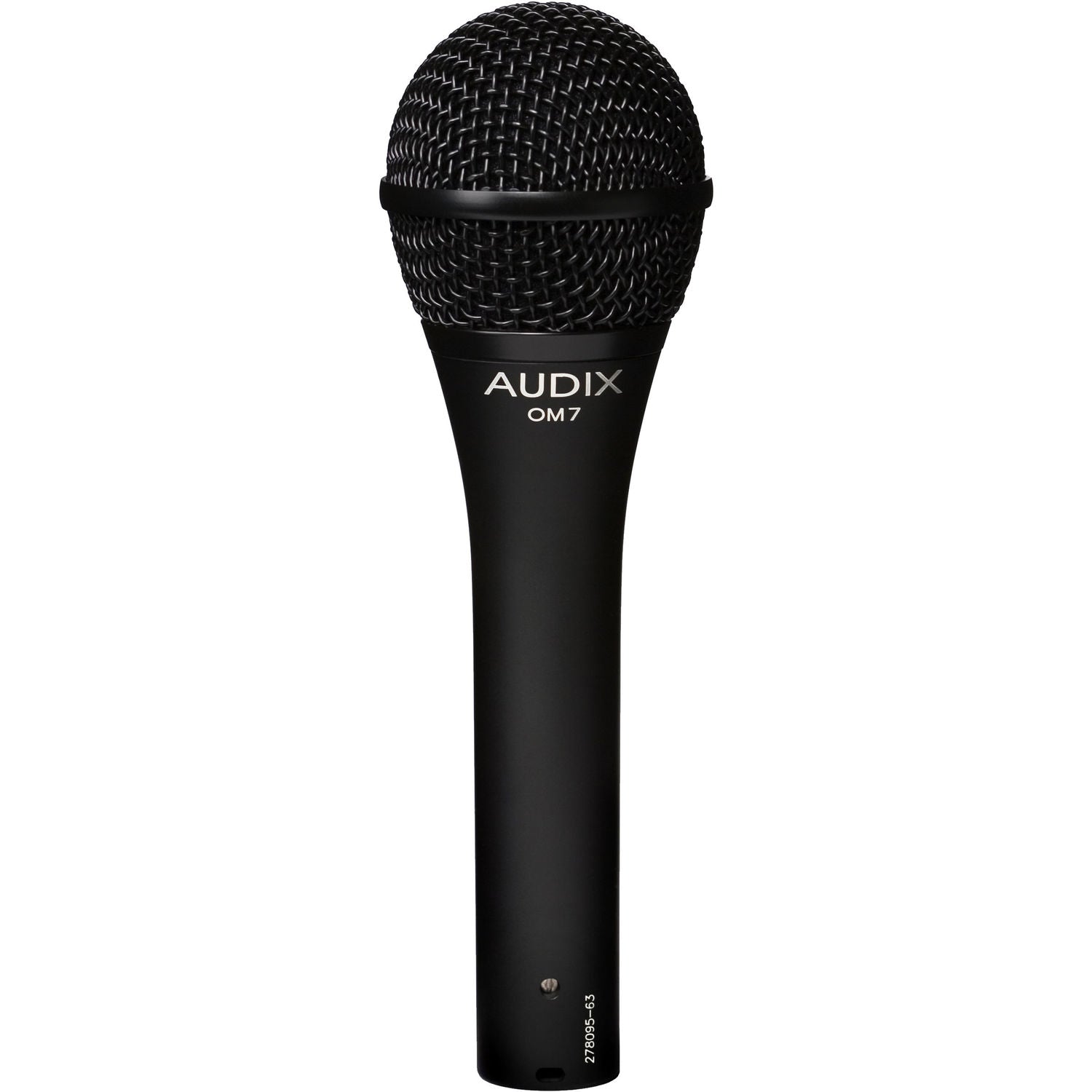

Audix OM7 Handheld Hypercardioid Dynamic Microphone

The OM7 is a dynamic vocal microphone used for professional sound companies, front of house engineers, mixing engineers, and high profile fixed installations. The OM7 is known for its ability to provide unprecedented gain before feedback on concert level stages without sacrificing sound quality. In addition, the OM7 is very resistant to feedback on
extremely loud stages, and for performers who tend to “cup” the microphone with both hands.

In order to achieve these extraordinary performance benefits, the OM7 is designed with an unconventionally low output level (8-10 dB lower than typical dynamic microphones). This low gain stage acts as a natural “pad” at the capsule in order to maintain high fidelity at the source. For this reason, the OM7 is best suited for use with high quality mixing consoles and sound system.

The OM7 is characterized with a super-tight hypercardioid polar pattern which effectively isolates the vocals from the rest of the instruments on stage. With a wide frequency range of 48 Hz - 19 kHz, the OM7 employs a VLM™(Very Low Mass)
diaphragm for a very clean and punchy sound with exceptional transient response.

Well balanced, comfortable to hold and durable, the OM7 is manufactured with very high standards and tight tolerances. The OM7 includes a precision die cast zinc alloy body, durable black E-coat finish, dent resistant steel mesh grill and gold plated XLR connector.

Features:

• Concert level, professional vocal mic for live sound, broadcast and studio
• Unprecedented gain before feedback
• Handles incredibly high SPLs without distortion
• VLM Capsule

Applications:

• Lead or backing vocals
• live recording
• broadcast
• Home studio - vocal and instrument
• Sax, Brass, Guitarm Dobro Flute, Pecussion, Drums

Specifications:

Transducer Type: Dynamic

Frequency Response: 48Hz - 19kHz

Polar Pattern: Hypercardioid

Output Impedance: 50Ohms

Sensitivity: 0.8 mV / Pa @ 1k

Capsule Technology: VLM Type C

Off-Axis Rejection: >30 dB

Maximum SPL: ≥144 dB

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Zinc Alloy / Black Finish

Weight: 307 g / 10.8 oz

Length: 176 mm / 6.9 in
