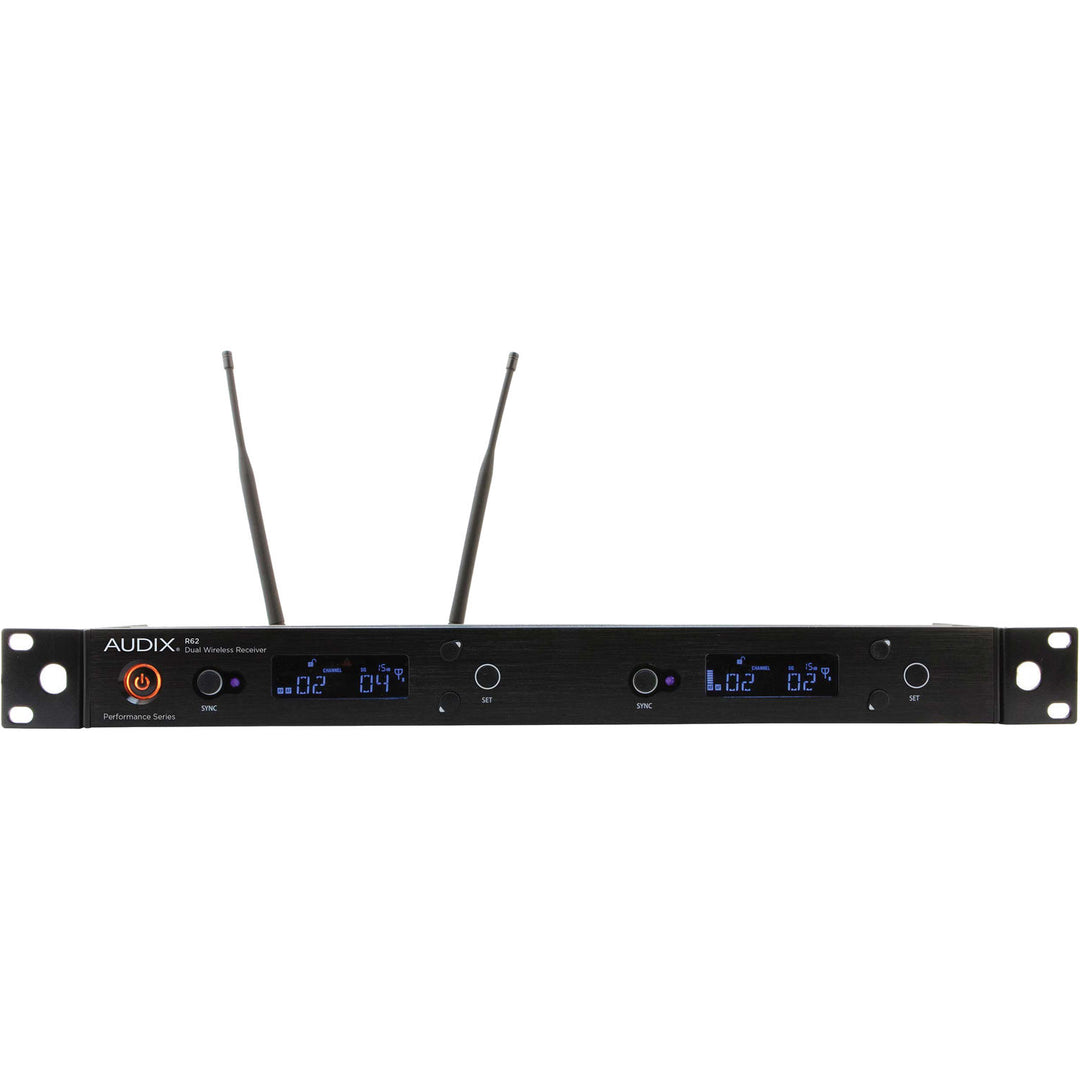

Audix R62KIT Dual-Channel True-Diversity Receiver for Wireless System (A: 522 MHz – 554 MHz)

The Audix R62 Kit is a Performance Series dual-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use two wireless microphones (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R62 Kit ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit.

Features:

• Incorporate up to 12 systems to use 24 unique channels simultaneously
• Dual-channel receiver supports two wireless microphones
• 64 MHz wide spectrum tuning
• 207 pre-coordinated frequencies
• 2560 tunable frequencies
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switches help eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable receiver lock disables the scan, sync, and power buttons
• Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
• Allows front- or rear-mount antenna configurations

Specifications:

Frequency Band: 522 - 586 MHz

Bandwidth: 64MHz

# Of Simultaneous Systems: Up to 12

Switchable Frequencies: 207pre-coordinated frequencies

Reception Frequencies: 2560 tunable frequencies (spaced 25kHz apart)

Wireless Range: Up to 450' / 137 m

Antenna Connector: 2x BNC (8 VDC, 150mA)

Outputs:

• 2x XLR 3-pin balanced
• 2x 1/4" TS unbalanced

Audio Output Level:

• XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain

Audio Level Control: -12 to +9 dB in 3dB steps

Frequency Response: 45Hz to 18kHz

Compander: 2:1

Pilot Tone: 32kHz

Receiving System: Dual tuner, true diversity

Signal-to-Noise Ratio: 112dB at 30kHz deviation (A-Weighted)

Total Harmonic Distortion (THD): <0.4% (33 kHz deviation at 1 kHz)

Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)

Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

Enclosure Material: Metal

Dimensions: 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm

Weight: 4.8 lb / 2.2 kg
