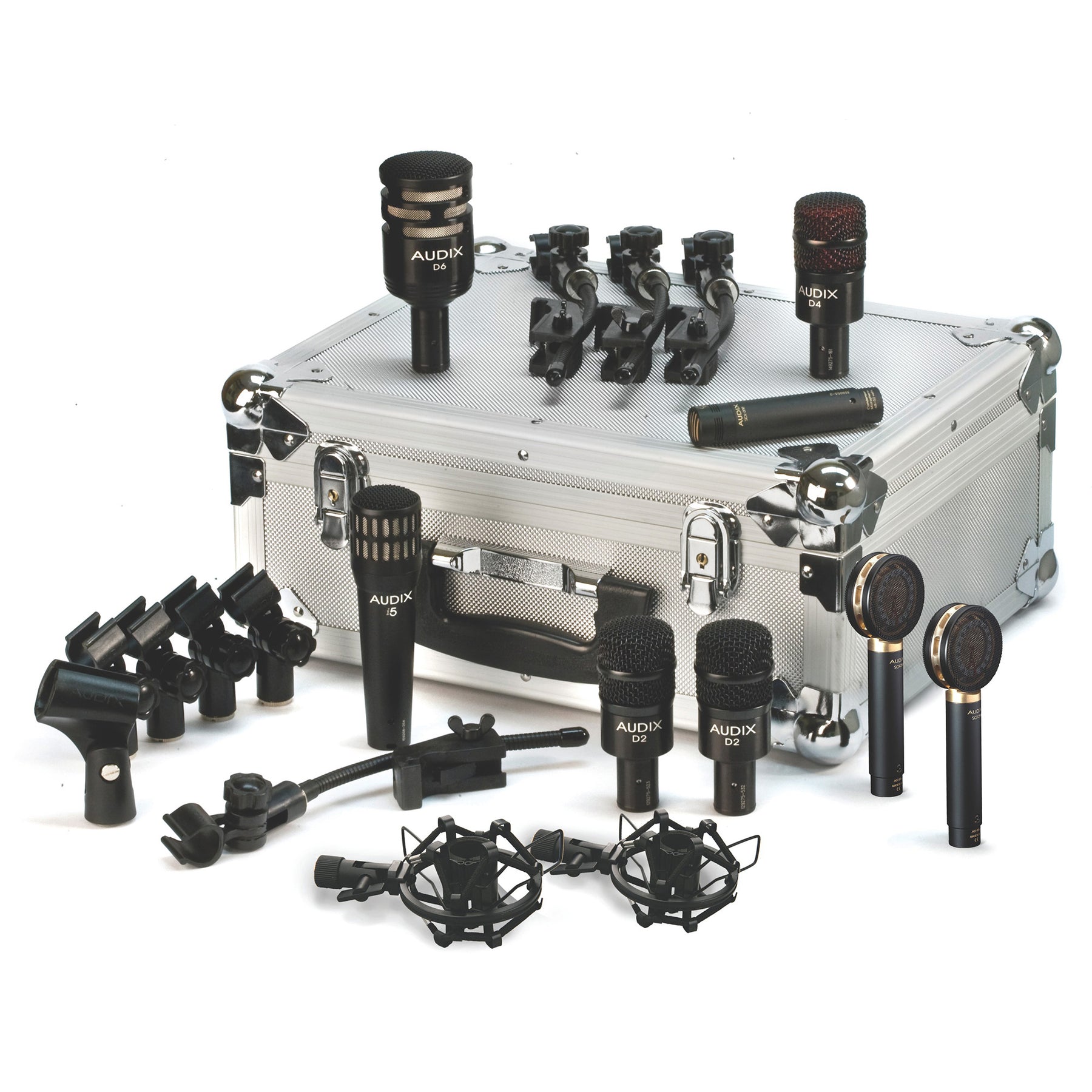

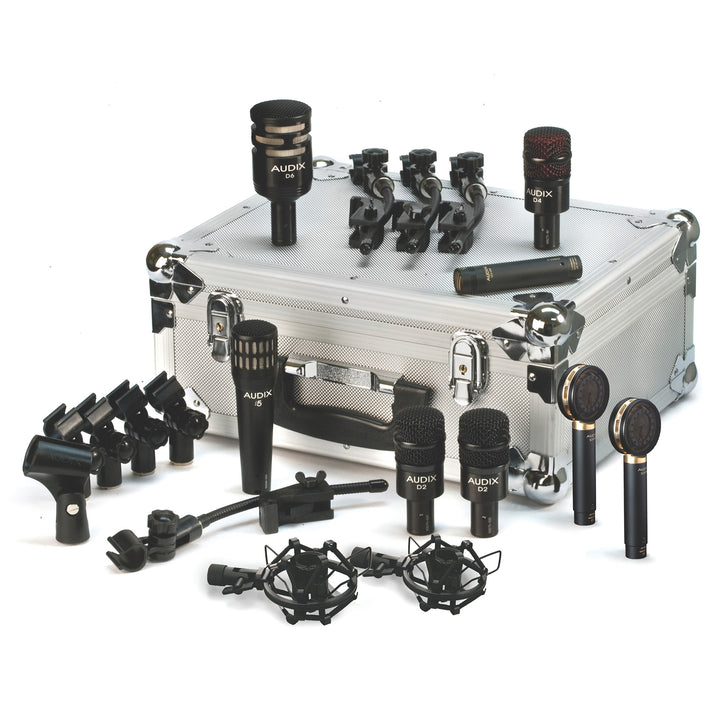

Audix Studio Elite 8 Premium Drum Microphone Package for 8-Piece Kit

LIVE SOUND OR RECORDING
The DP ELITE 8 drum pack is a premium ensemble of microphones designed to mic a
five-piece kit with accuracy and fine control. Kick, snare, rack toms and floor tom mics
feature Audix VLMTM capsule technology for natural and precise sound reproduction in
high SPL applications. A dedicated hi-hat mic and overhead mics capture complex
timbres and wide dynamic ranges. Included are DVICE rim mounts eliminating the need
for bulky mic stands.

• Professional set of 8 drum mics for stage or studio
• Complete solution for a 5 piece kit Includes all mounting clips and rugged aluminum
• road case

Features

• One i-5 Dynamic Cardioid Snare Microphone
• Two D2 Dynamic Hypercardioid Microphones
• One D4 Dynamic Hypercardioid Microphone
• One D6 Low Frequency Kick Microphone
• Two SCX-25A Cardioid Overhead Microphones
• One SCX-1HC Hypercardioid Hi-Hat Microphone
• Four D-Vice Gooseneck Clips
• Two SMT-25 Shock Mounts

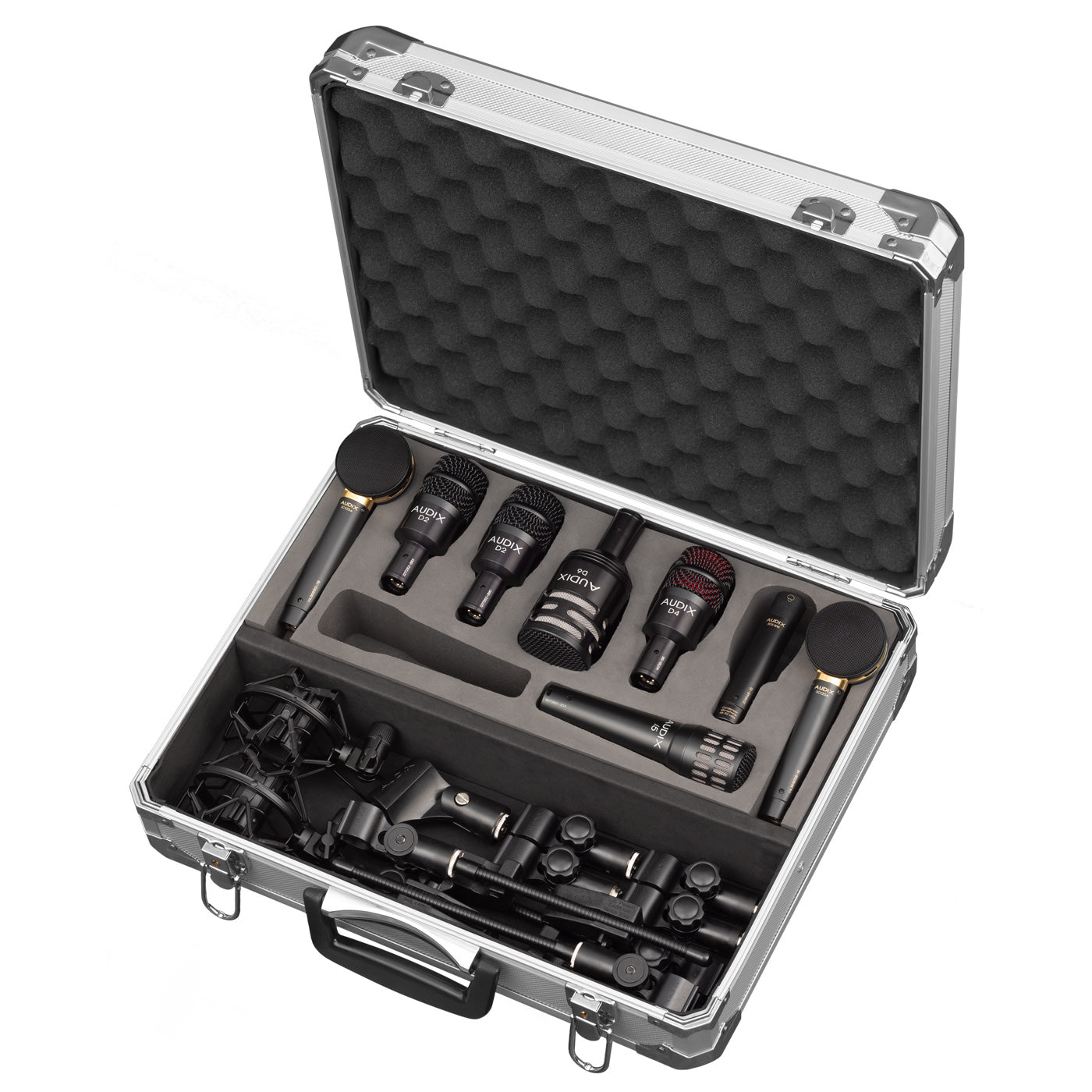

• Aluminum Road Case

Specifications:

i5

• Transducer: Dynamic VLM Type B
• Frequency Response: 50 Hz - 16 kHz
• Polar Pattern: Cardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.6mV / Pa @ 1k
• Maximum SPL: >140dB
• Off-axis rejection: >23dB
• Power Requirements: None
• Materials/Finish: Zinc Alloy / Black Finish
• Weight: 248 g / 8.7 oz
• Length: 141mm / 5.6 in

D2

• Transducer: Dynamic VLM Type B
• Frequency Response: 68 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.2mV / Pa @ 1k
• Maximum SPL: >144dB
• Off-axis rejection: >30dB
• Power Requirements: None
• Materials/Finish: Black Hard Coat
• Weight: 128 g / 4.5 oz
• Length: 100 mm / 3.9 in

D4

• Transducer: Dynamic VLM Type D
• Frequency Response: 40 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.4mV / Pa @ 1k
• Maximum SPL: >144dB
• Off-axis rejection: >20dB
• Power Requirements: None
• Materials/Finish: Black Hard Coat
• Weight: 128 g / 4.5 oz 2
• Length: 100 mm / 3.9 in

D6

• Transducer: Dynamic VLM Type E
• Frequency Response: 30 Hz - 15 kHz
• Polar Pattern: Cardioid
• Output Impedance: 280 ohms
• Sensitivity: .8mV / Pa @ 80Hz
• Maximum SPL: >144dB
• Off-axis rejection: >20dB
• Power Requirements: None
• Materials/Finish: Machined Aluminum / Black Finish
• Weight: 254 g / 8.9 oz
• Length: 117 mm / 4.6 in

SCX25A

• Transducer: Condenser
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 200 ohms
• Sensitivity: 28 mV / Pa @ 1k
• Maximum SPL: >135 dB
• Power Requirements: 48 - 52 V Phantom
• Materials / Finish: Machined Brass / Black Finish
• Weight: 244 g / 8.6 oz
• Length: 148 mm / 5.8 in

SCX1HC

• Transducer: Condenser
• Frequency Response: 40 Hz - 20 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 200 ohms
• Sensitivity: 17 mV / Pa @ 1k
• Maximum SPL: >130 dB
• Power Requirements: 48 - 52 V Phantom
• Materials / Finish: Machined Brass / Black Finish
• Weight: 144 g / 4 oz
• Length: 104 mm / 4.1 in
