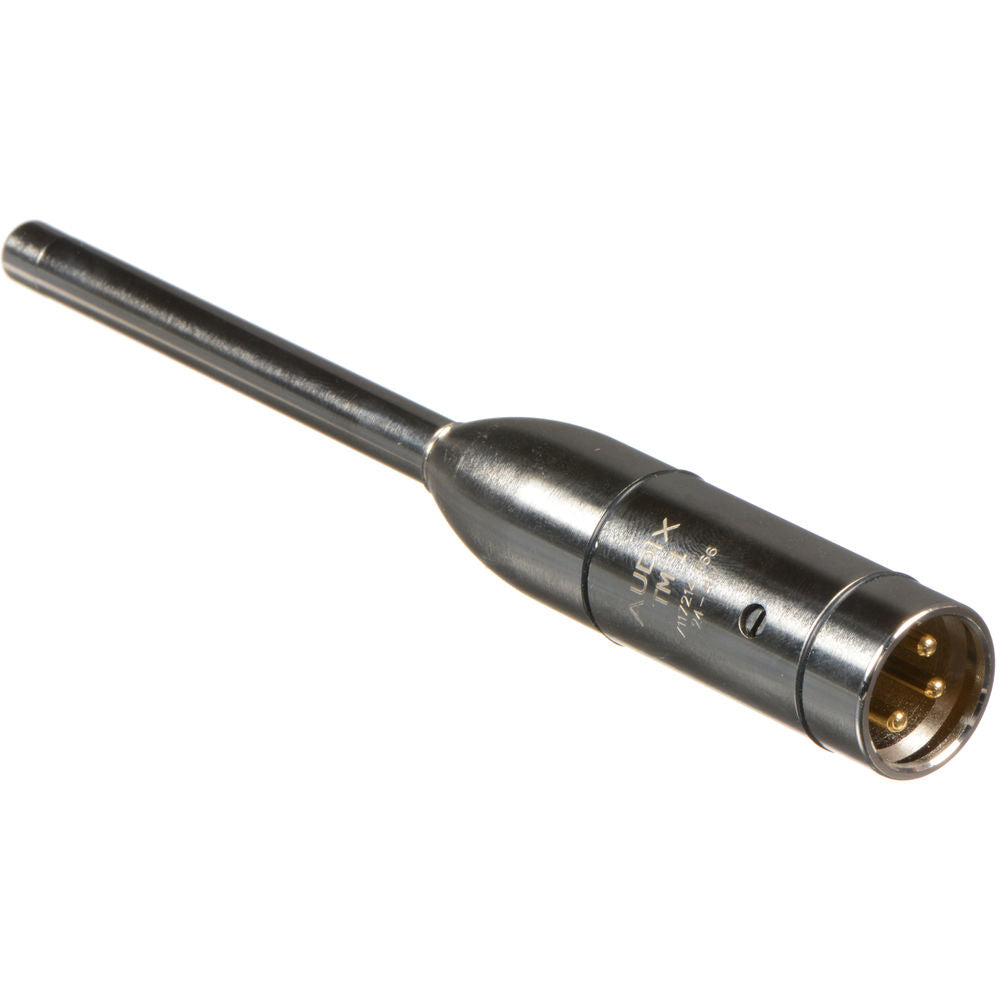

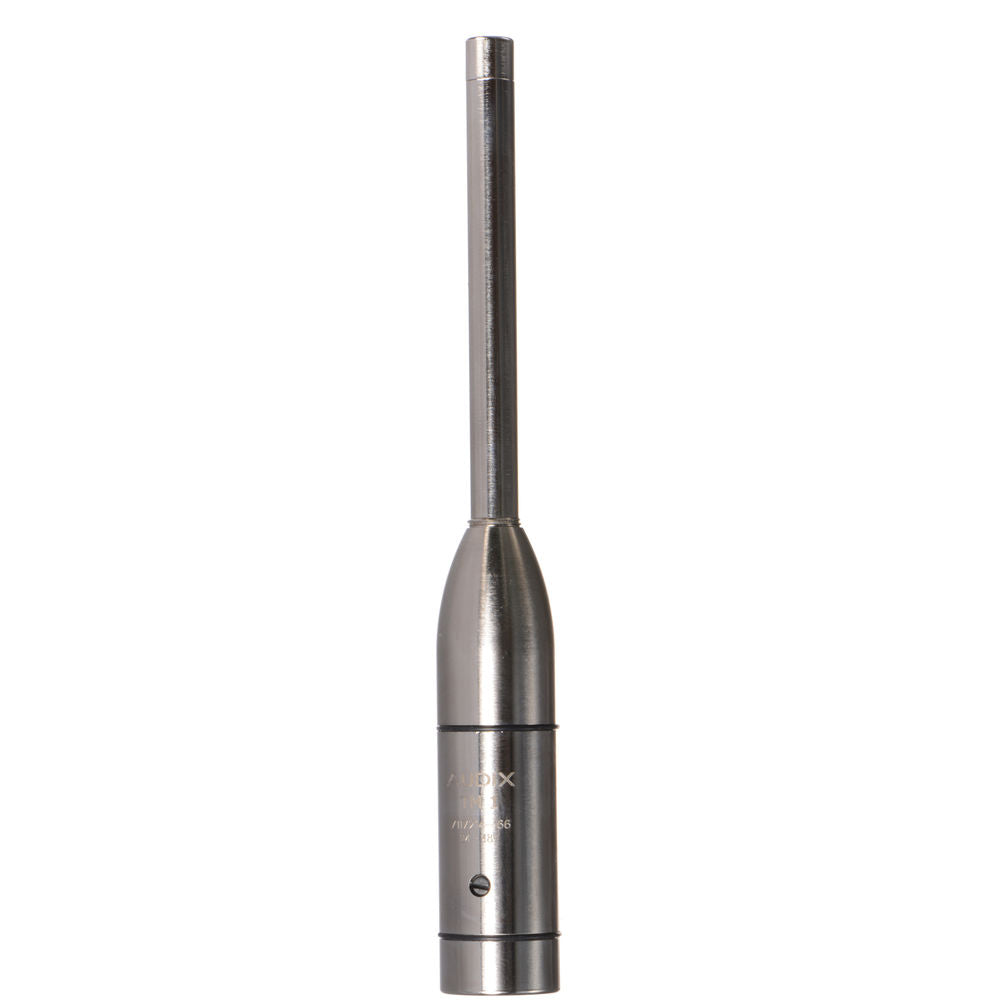

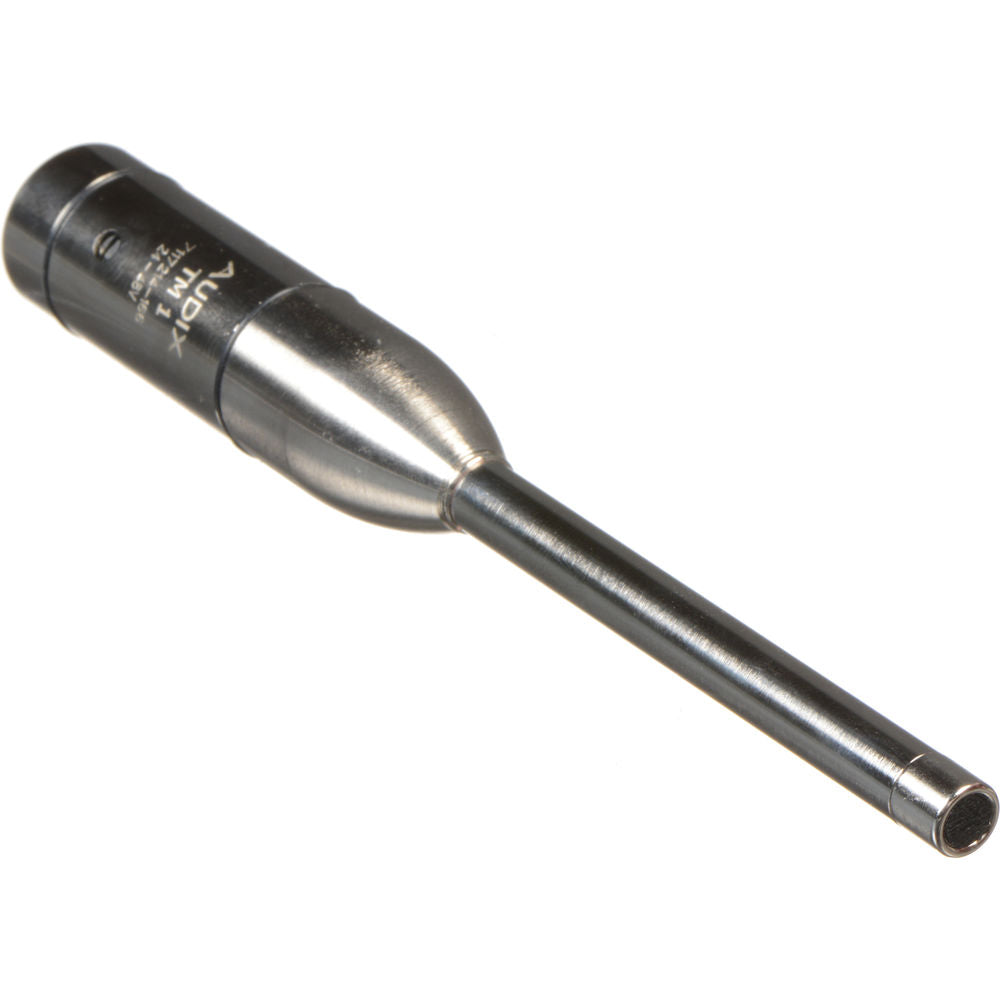

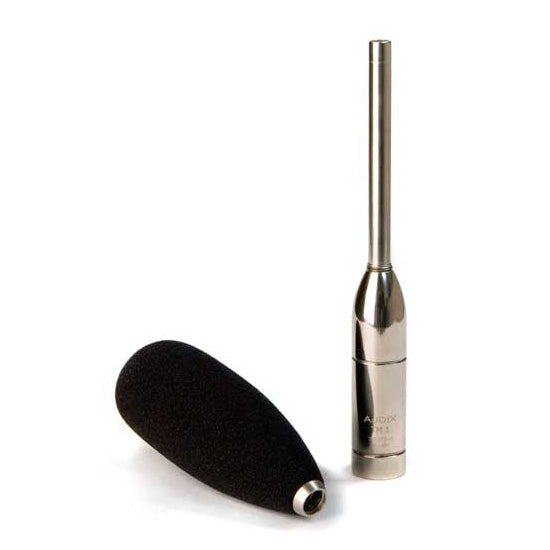

Audix TM1 Omnidirectional Test & Measurement Microphone

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Characterized by a uniformly controlled omni-directional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

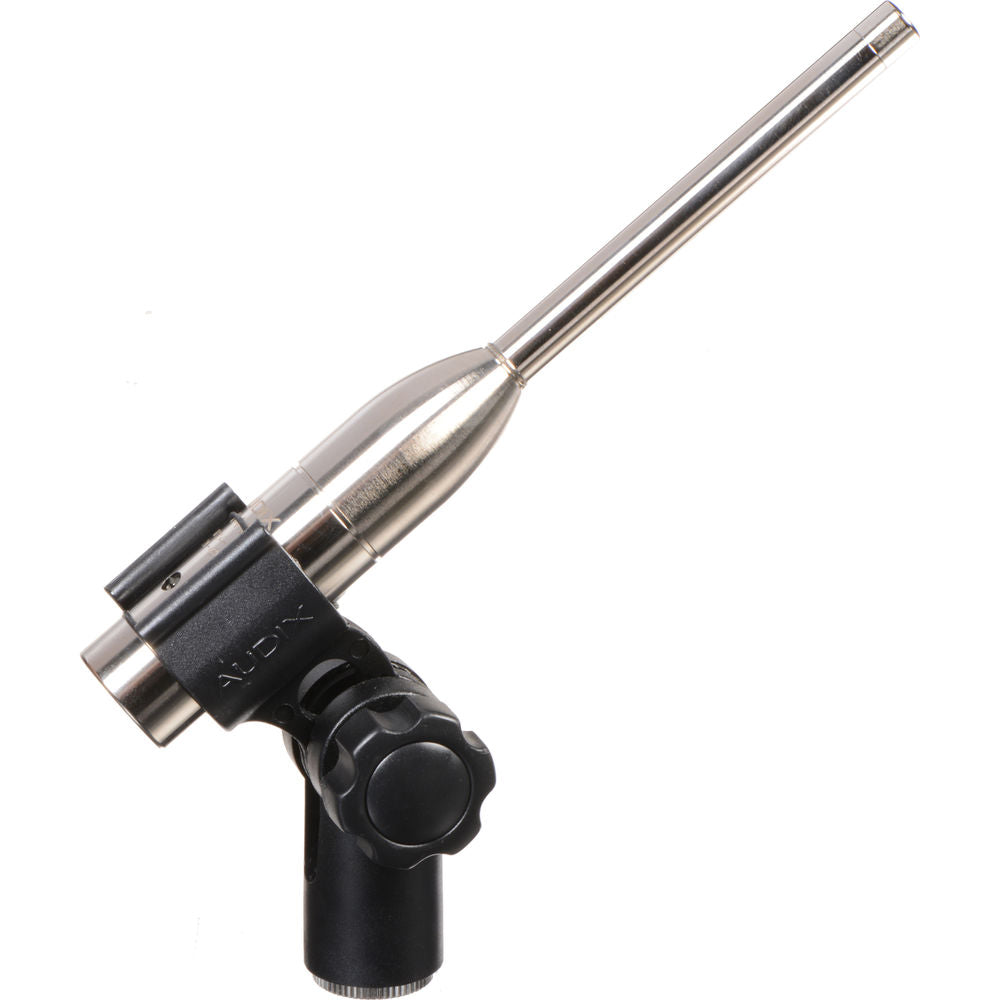

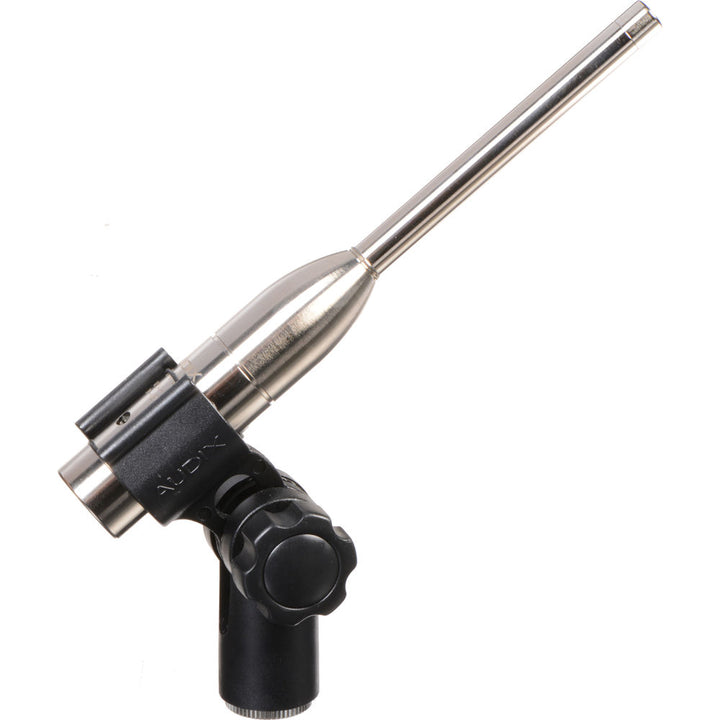

Requiring 24 - 48 Volts phantom power for operation, the TM1 features a precision-machined 4-stage brass body and capsule housing, nickel plate finish, Switchcraft® or Audix XLR, shock absorbent O-rings, and heavy-duty snap-to-fit mic clip.

Features:

• 6mm pre-polarized condenser capsule
• High SPL response
• Precision machined brass housings
• Low noise electronics
• Replaceable electronics and capsule

Applications:

• Test and measurement
• Real-time analyzers
• Room analysis software programs
• Ambient room miking

Specifications:

• Transducer Type: Pre-Polarized Condenser
• Frequency Response: 20Hz - 20kHz +/-2 dB
• Polar Pattern: Omnidirectional
• Output Impedance: 200ohms
• Sensitivity: 6 mV / Pa @ 1k
• Maximum SPL: 130 dB with distortion <1%
   140 dB Max
• Signal-to-Noise Ratio: 66dB
• Equivalent Noise Level: 28dB (A-Weighted)
• Dynamic Range: 112dB
• Connector: male XLR
• Power Requirements: 24 to 48 V Phantom Power
• Power Consumption: 8.9 mA @ 48V
• Polarity: Positive pressure on diaphragm produces postitive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish: 4 piece precision machined
  brass / Nickel Finish
• Weight: 132 g / 4.7 oz
• Length: 150 mm / 5.9 in
