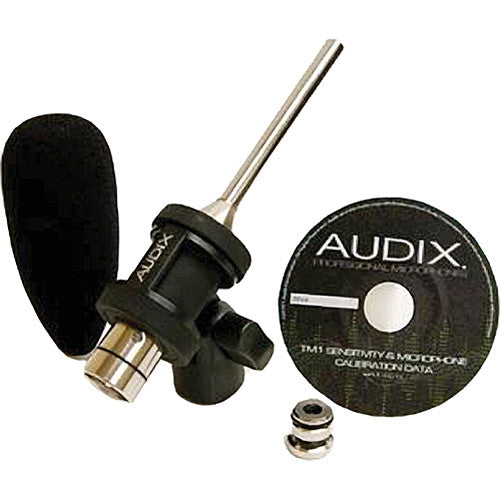

Audix TM1 PLUS Omnidirectional Test & Measurement Microphone Kit

The TM1 Plus is a 6 mm pre-polarised condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analysers, and other sound control devices. With a flat frequency range of 20 Hz - 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

Specifications:

Transducer Type: Pre-polarised Condenser

Frequency Response: 20 Hz - 20 kHz +/-2 dB

Polar Pattern: Omni

Output Impedance: 200 ohms

Sensitivity: 6 mV / Pa @ 1k

Equivalent Noise Level: 28 dB (A weighted)

Signal to Noise Ratio: 66 dB

Maximum SPL: 130 dB with distortion 1% 140 dB Max

Power Requirements: 24 - 48 V Phantom

Power Consumption: 8.9 mA @ 48 Volts

Connector: Switchcraft® or Audix mail XLR

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials/Finish: 4 piece precision machined brass / Nickel Finish

Weight: 132 g (4.7 oz)

Length: 150 mm (5.9")

Includes
- 1x TM1 Test & Measurement Mic
- 1x WSTM1BP Windscreen
- 1x SMT19 Shock Mount Clip
- 1x TM1CA4231 Calibration Adaptor for Use With 1-inch Calibrators
- 1x Sensitivity & Calibration Data CD
