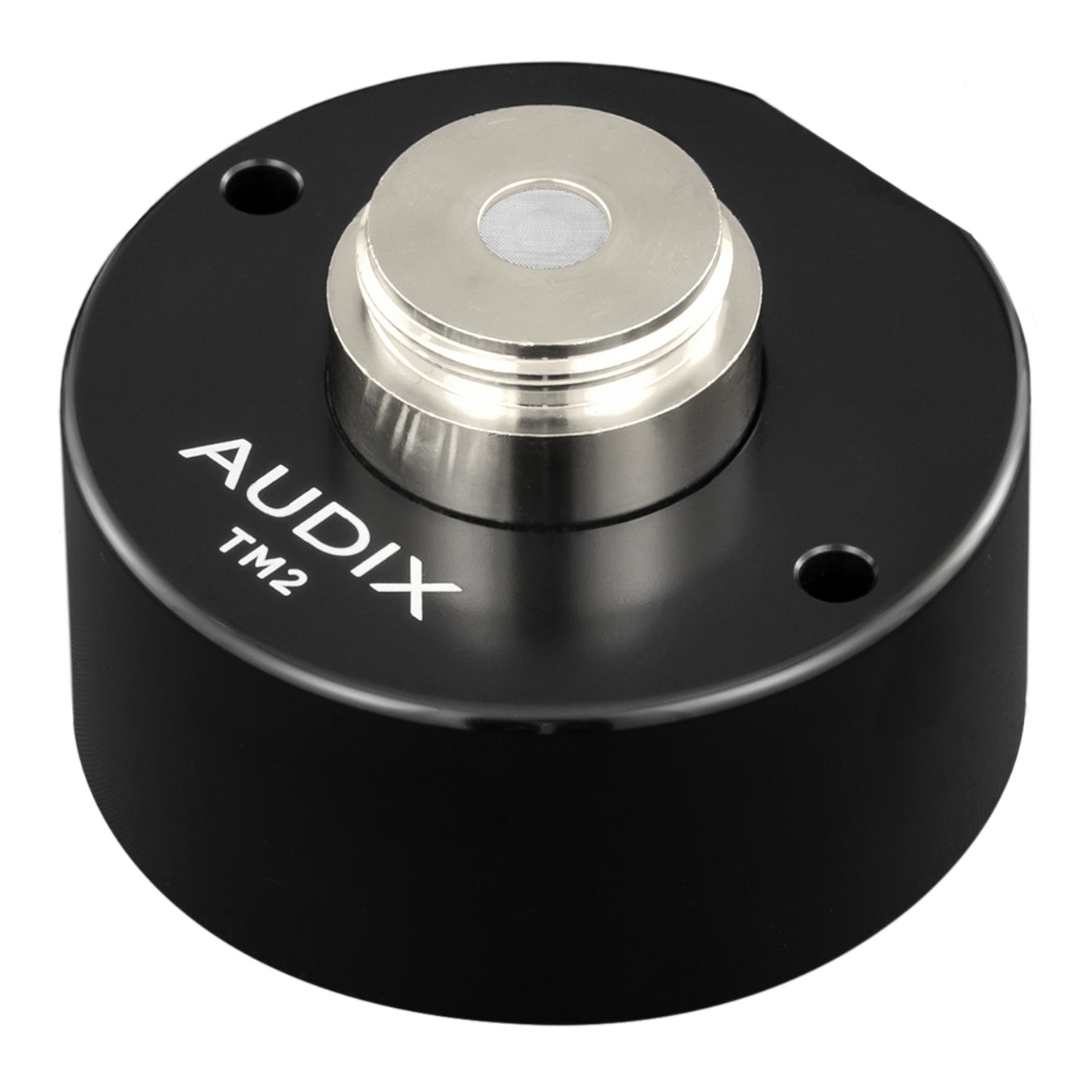

Audix TM2 Integrated Acoustic Coupler for In-Ear Monitors

 The TM2 is an Integrated Ear-Simulator (coupler) specifically designed for test
and measurement in the professional sound industry.
 Ear simulator “couplers” are the measurement devices used by manufacturers
of IEMs for capturing key metrics during research and development, final
production and quality control of IEMs. Using patent-pending technology, the
TM2 incorporates these features into an integrated compact package that is
ideally suited for sound and studio engineers who want a simple, yet effective
way to test IEM performance.

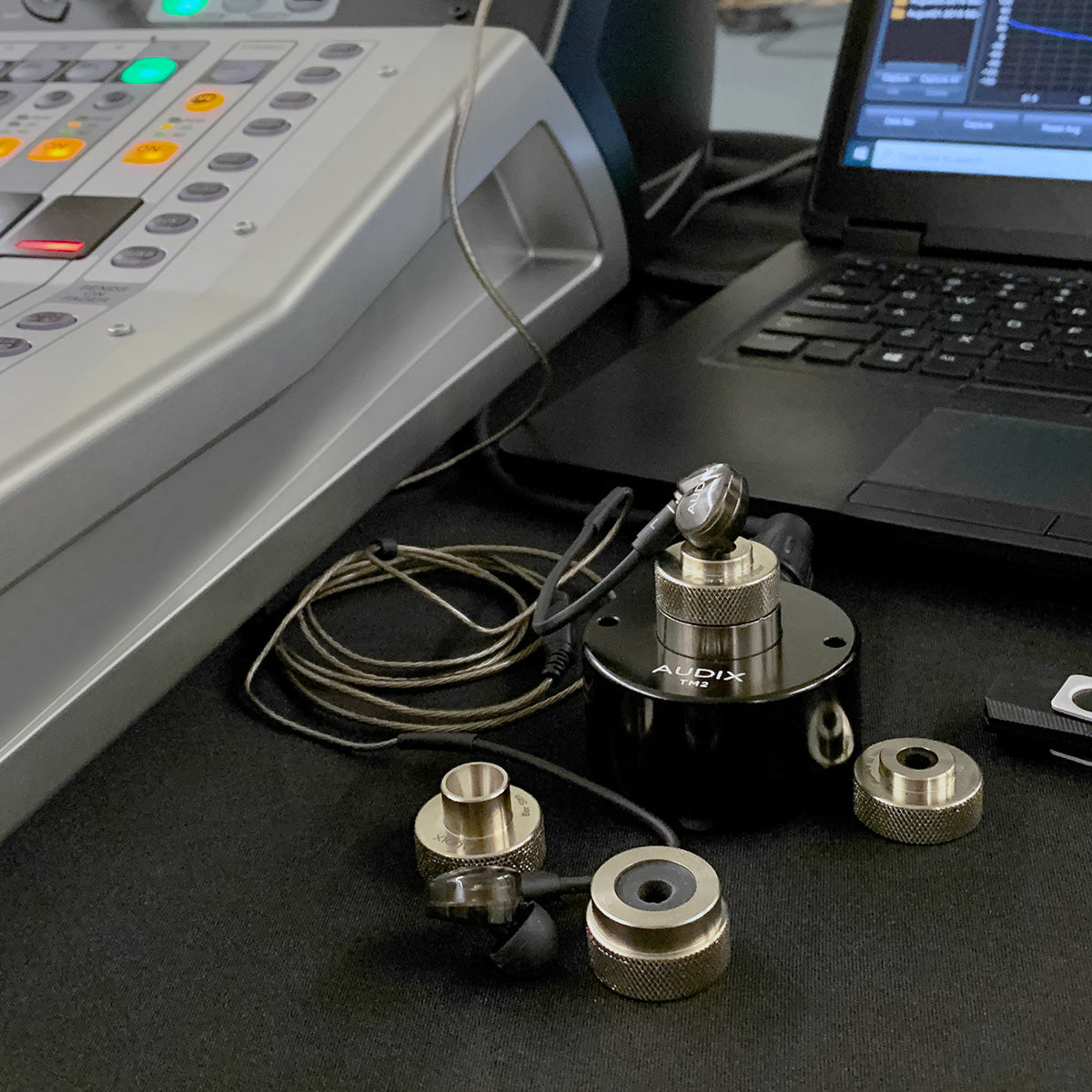

Monitor engineers are often faced with questions from performers regarding
the functionality of their IEMs with no reliably consistent method to test them
in their environment. With the TM2 and readily available measurement software
such as Rational Acoustic’s SMAART or Studio Six Digital’s Audio Tools, a
monitor engineer can easily confirm the functionality of each performer’s IEMs
as part of a pre-show checklist.

Specifications:

Transducer Type: Pre-Polarized Condenser

Frequency Response: 20Hz to 20kHz

Output Impedance: 200ohms

Sensitivity: nom 6.5 mV / Pa @ 1 kHz*
 *Sensitivity for each unit included with calibration data

Maximum SPL: 130dB

Signal-to-Noise Ratio: 68dB

Equivalent Noise Level: 26dB (A-Weighted)

Dynamic Range: 104dB

Connector: 3-pin XLRm

Power Requirements: 24 - 48 V Phantom

Power Consumption: 9mA @48V

Polarity: Positive pressure produces positive voltage on pin 2 relative to pin 3 of XLR

Materials / Finish: Precision-machined components with nickel and anodized finish

Weight: 190g

Dimensions: 57mm x 41mm
