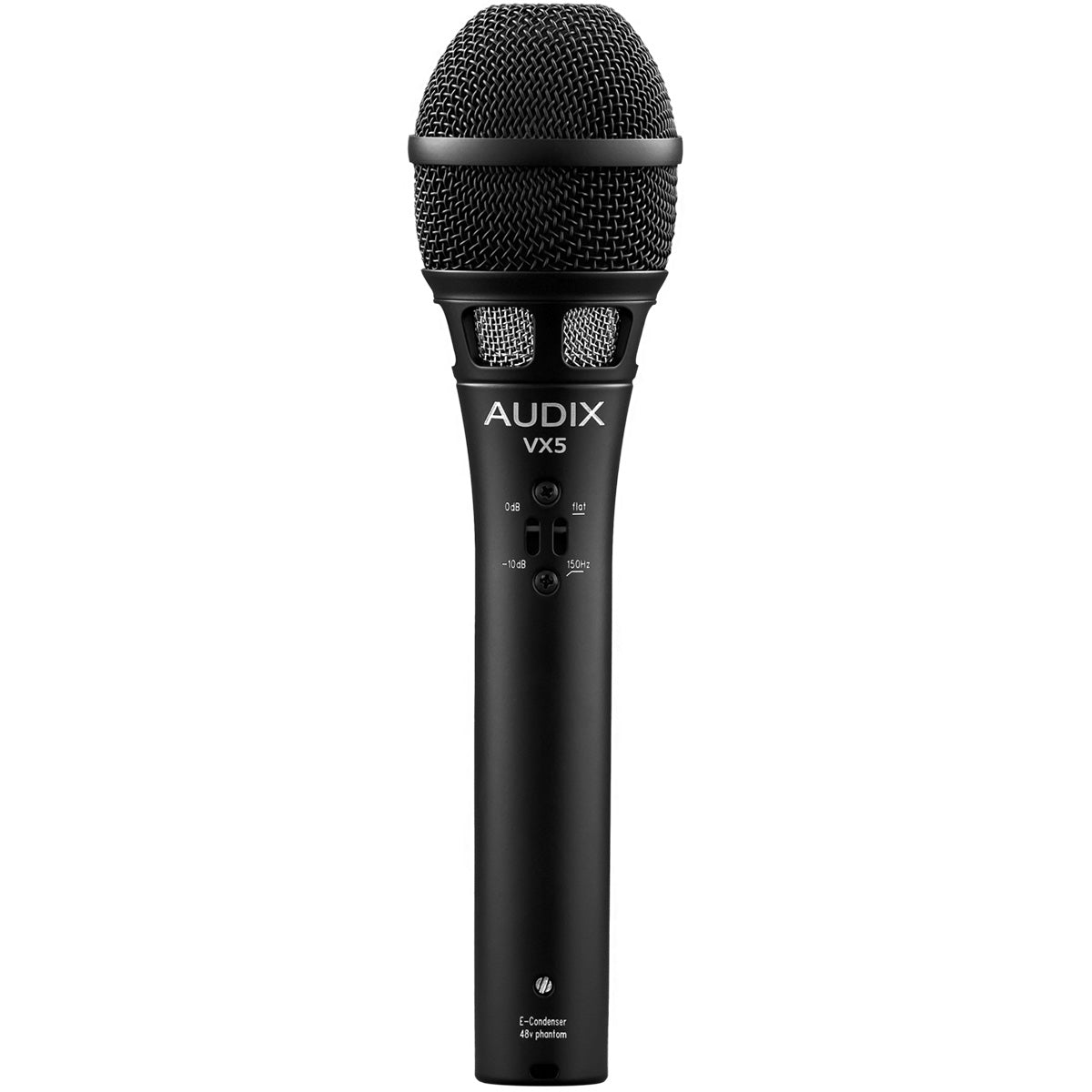

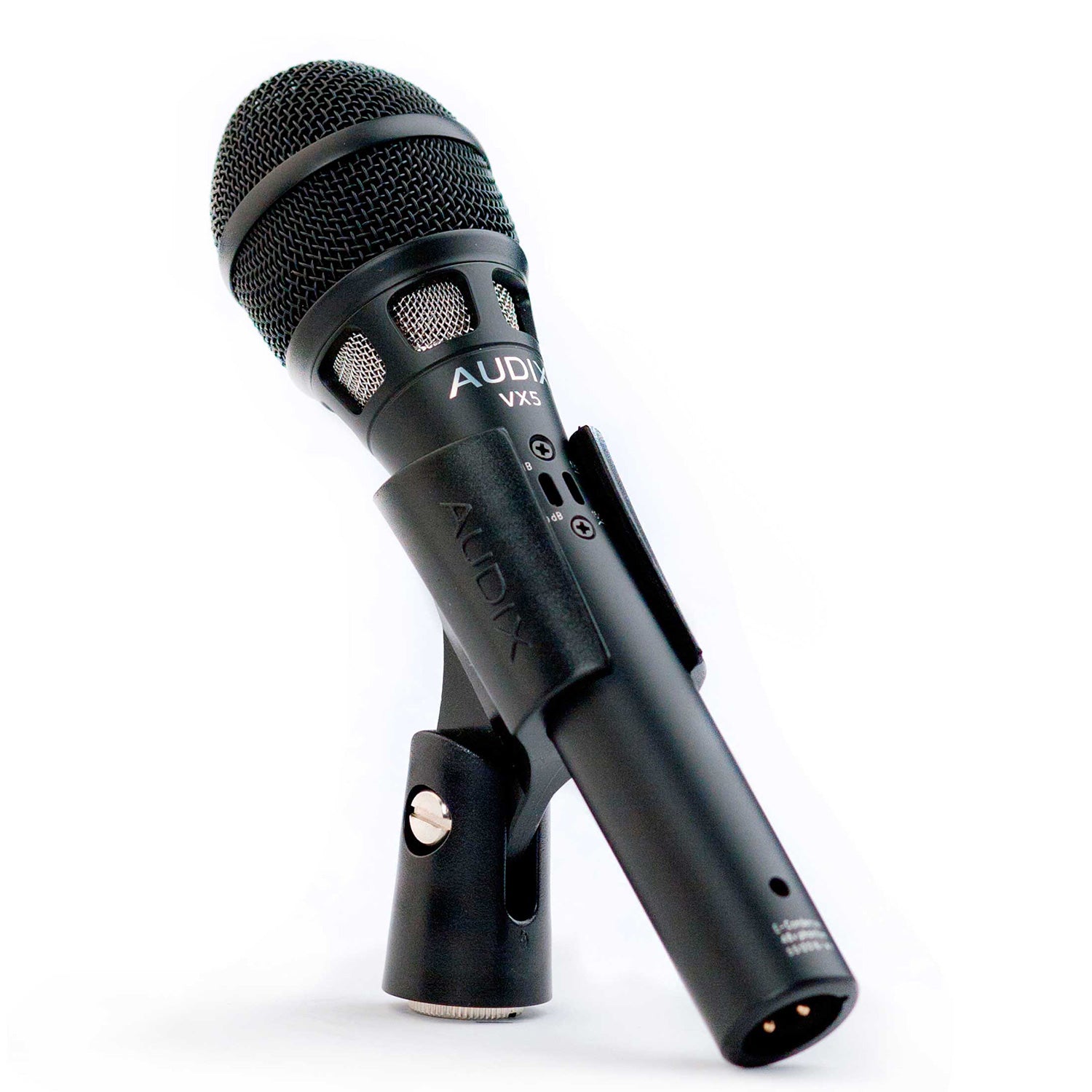

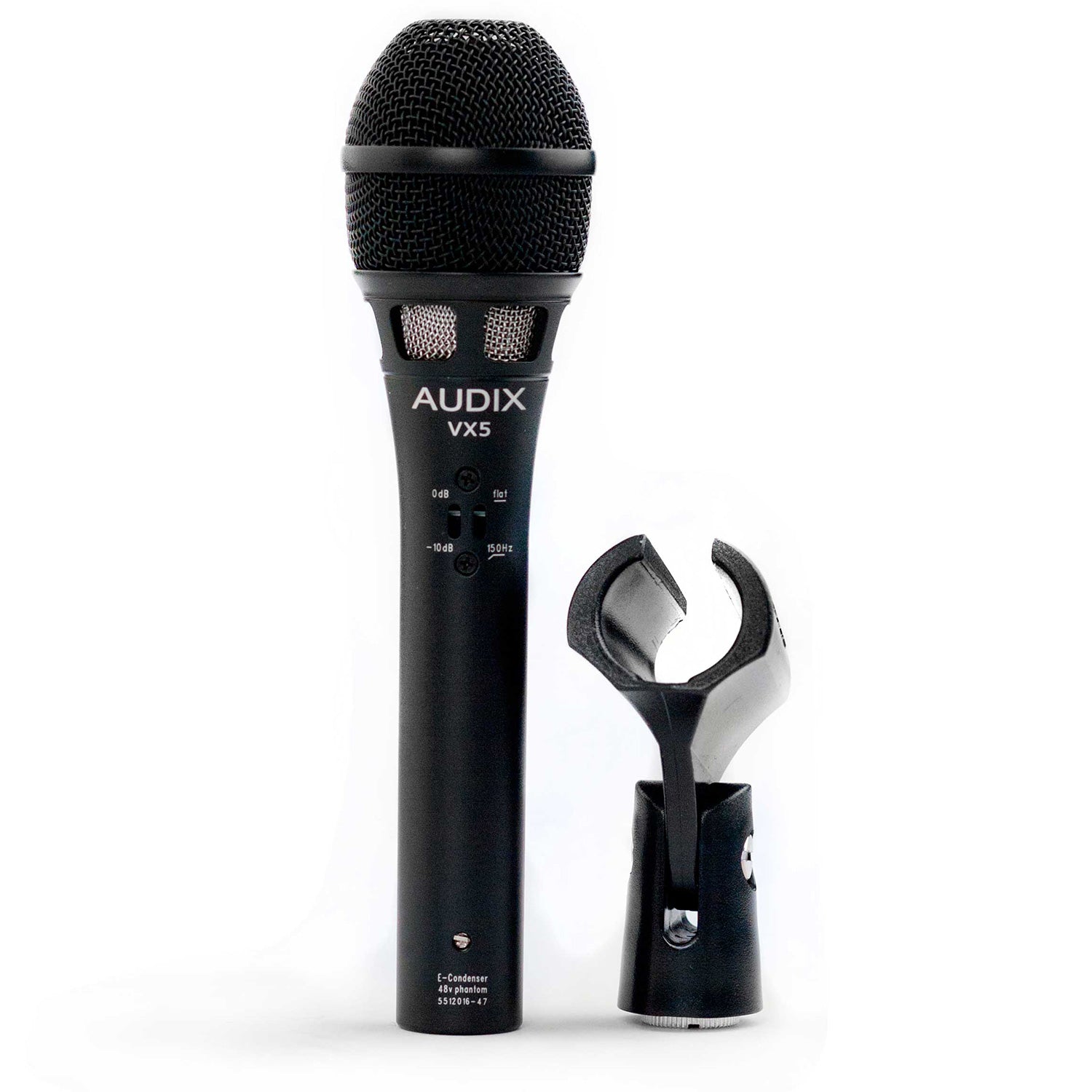

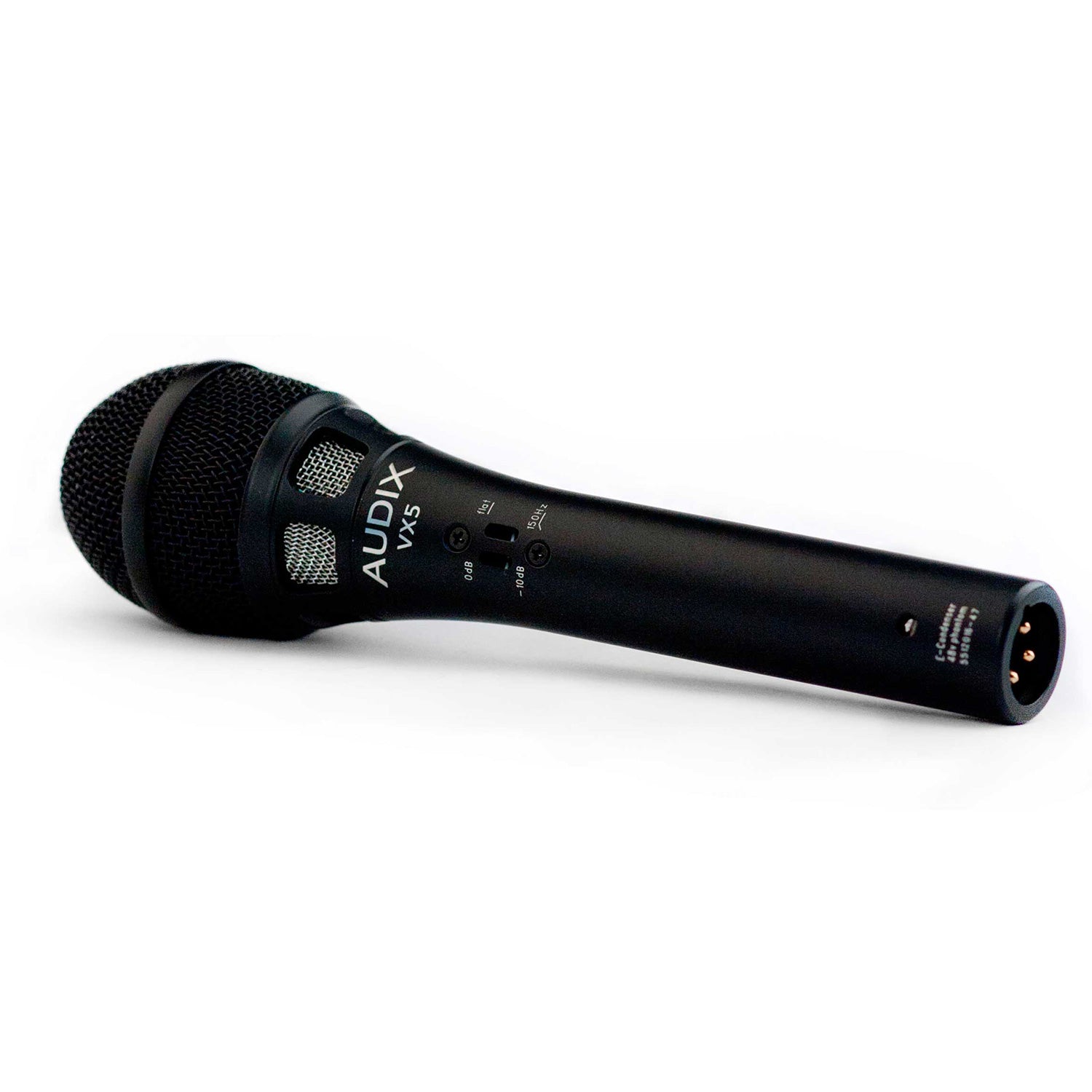

Audix VX5 Premium Electret Condenser Vocal Microphone

 The VX5 is a professional vocal condenser microphone designed for a wide variety of live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 is known for its smooth and accurate frequency response, resistance to feedback and ability to handle very high sound pressure levels without distortion.

The VX5 is characterized with a tight and uniformly controlled supercardioid polar pattern which helps to isolate the vocals from the rest of the instruments on stage. With a wide frequency range of 40 Hz - 16.5 kHz, the VX5 has a very clean and natural sound with exceptional transient response. This mic requires 9 - 52 volts phantom power.

Other features include a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with multi-stage pop filter and a -10 dB pad and bass roll-off filter. The VX5 will handle sound pressure levels in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages.

In addition to vocal applications, the VX5 is ideally suited to capture acoustic instruments such as guitar, woodwinds, brass, percussion toys, drum overheads,
hi-hat and piano. It is a very versatile mic for home studio recording. The VX5 is well balanced, comfortable to hold, durable, and designed with very high standards and tight tolerances.

The VX5 is manufactured with a precision die cast zinc alloy body, durable black E-coat finish and gold plated XLR connector.

Features:

• Premium electret condenser for vocals and acoustic instruments
• Smooth accurate frequency response
• Switches for -10 dB pad and bass roll-off
• Suited for acoustic music as well as loud stages

Applications:

Stage or Studio

• Lead or background vocals
• Speech
• Acoustic instrumentals

Specifications:

Transducer Type: Pre-Polarized Condenser

Frequency Response: 40Hz to 16.5kHz

Polar Pattern: Supercardioid

Output Impedance: 150ohms

Sensitivity: 5mV / Pa @ 1k

Equivalent Noise Level: 26dB (A-Weighted)

Signal-to-Noise Ratio: 68dB

Off-Axis Rejection: >20 dB

Maximum SPL: ≥140 dB (w/ -10 pad)

Power Requirements: 9 to 52 V Phantom Power

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Zinc Alloy & Machined Brass / Black Finish

Weight: 277 g / 8 oz

Length: 181 mm / 7.1 in
