Avantone Pro CLA-SUB 300W Dual Magnet 10'' Studio Subwoofer with Front & Down firing mode

The CLA-Sub is an ideal studio subwoofer for producers and engineers who work with cinema sound or
any modern music genre that prioritizes deep bass. While the CLA-Sub is designed to be a perfect match
for the CLA-series of white cone studio monitors, its filter options make it a fantastic sub for any recording
studio or home theatre.

The CLA-Sub can be configured in either downward-firing or frontward-firing modes to best suit the
acoustics of your mix room. Simply remove and reattach the rubber feet to deploy the configuration that
best serves your room and your music.
● Front-firing mode provides the cleanest possible reproduction from CLA-Sub, as the woofer
does not couple with the floor of the room.
● Downward-firing mode deliberately takes advantage of coupling to the room to increase
output by +3 dB.

The CLA-Sub’s repositionable feet employ a special vibration-dampening material that minimizes the
mechanical coupling between the CLA-Sub in your room to reduce sympathetic vibrations that can color
the playback of your mix. No aftermarket acoustic isolation pads required!
Exclusive dual-magnet driver for clarity and volume
At the heart of CLA-Sub is our custom dual-magnet driver, not available in any other speaker. Every
element of the custom driver was designed to minimize distortion while increasing output volume. Other
manufacturers’ subwoofers will often deliver as much low-end as possible through deliberate distortion
and coloration. This approach can cause signals to be perceived as louder, when they in fact just have
more harmonic content through distortion.
We find this practice to be at best dishonest, and at worst an insult to your music. We took the opposite
approach with our custom driver. We did all we could to ensure it delivers clean, clear bass at shockingly
high volume.

First, its stacked dual ferrite magnet design grants CLA-Sub the power to push and pull air with more
efficiency and control than comparable drivers. To avoid harmonics and overtones, we experimented with
several cone substrates before settling on a particularly rigid paper that minimizes distortions while still
providing a quick, snappy transient response. With CLA-Sub, you’ll hear the low end of your tracks with
clarity and honesty.

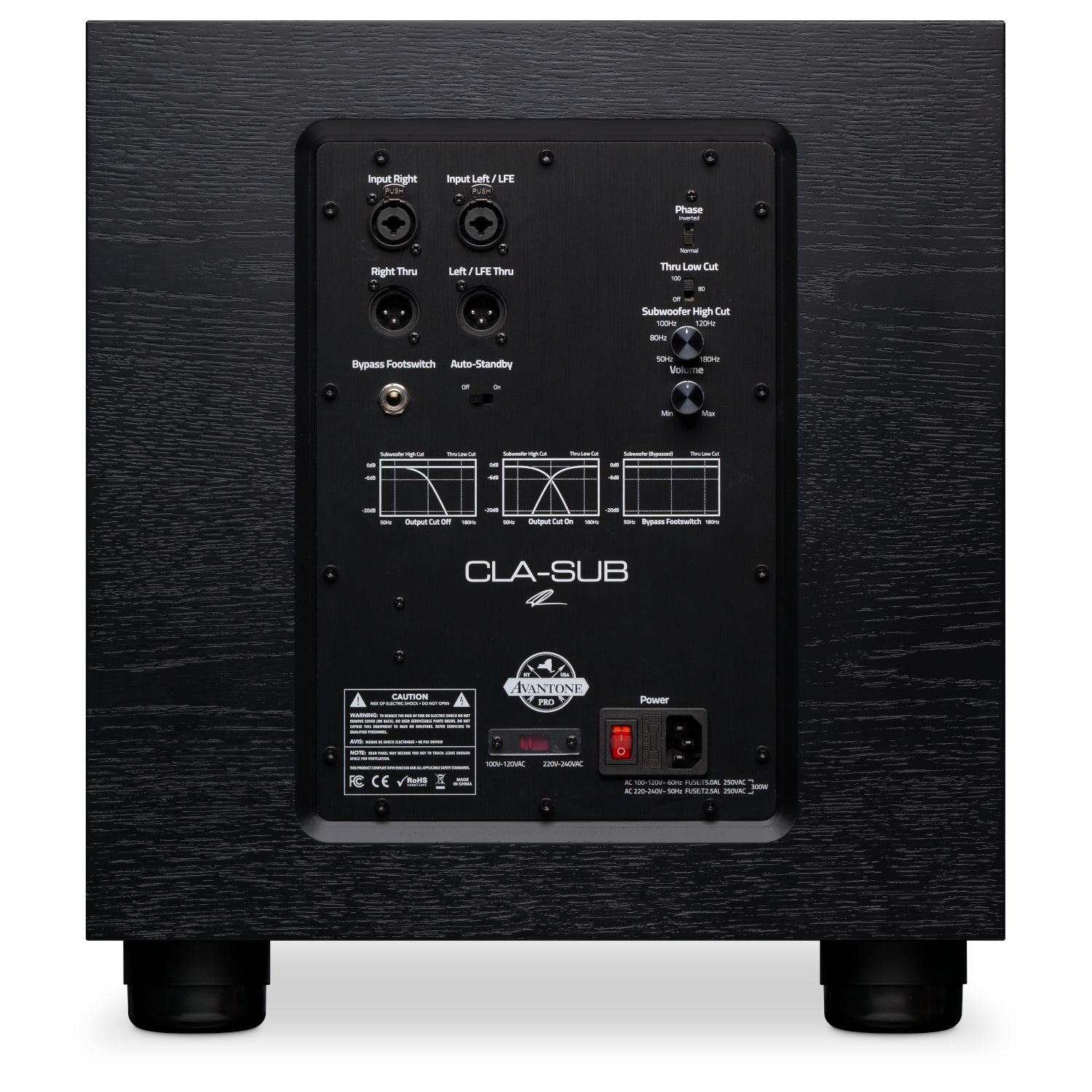

Configuration options for the most demanding studios
A sweepable high-cut control lets you dial in your crossover point from 50-180 Hz; the output low-cut filter
lets you trim the fat at 80 or 100 Hz for the signal sent to your studio monitors. You also get phase and

gain controls. A switchable power-saving standby mode is available, putting CLA-Sub into a power-
efficient sleep mode after 30 minutes of inactivity.

Locking XLR / 1⁄4” TRS combo inputs keep your audio connections tight and secure, even when those
808 kicks are rattling the fillings in your teeth.
CLA-Sub’s operation can be toggled using a footswitch for quick A/B comparisons of your mixes with and
without the sub.
Features
● 300 watt 10” studio subwoofer with custom dual-magnet driver
● Front-firing and downward-firing configurations to suit your mix environment
● Exclusive dual-magnet driver with rigid paper cone for maximum volume and minimal
distortion
● Ported enclosure for low-end extension
● Sweepable high-cut control from 50-180 Hz
● 80/100 Hz low-cut filter for thru output to studio monitors
● No aftermarket acoustic isolation pads required
● Switchable power-saving standby mode
● Footswitch-togglable operation
● Also suitable for home theatre
