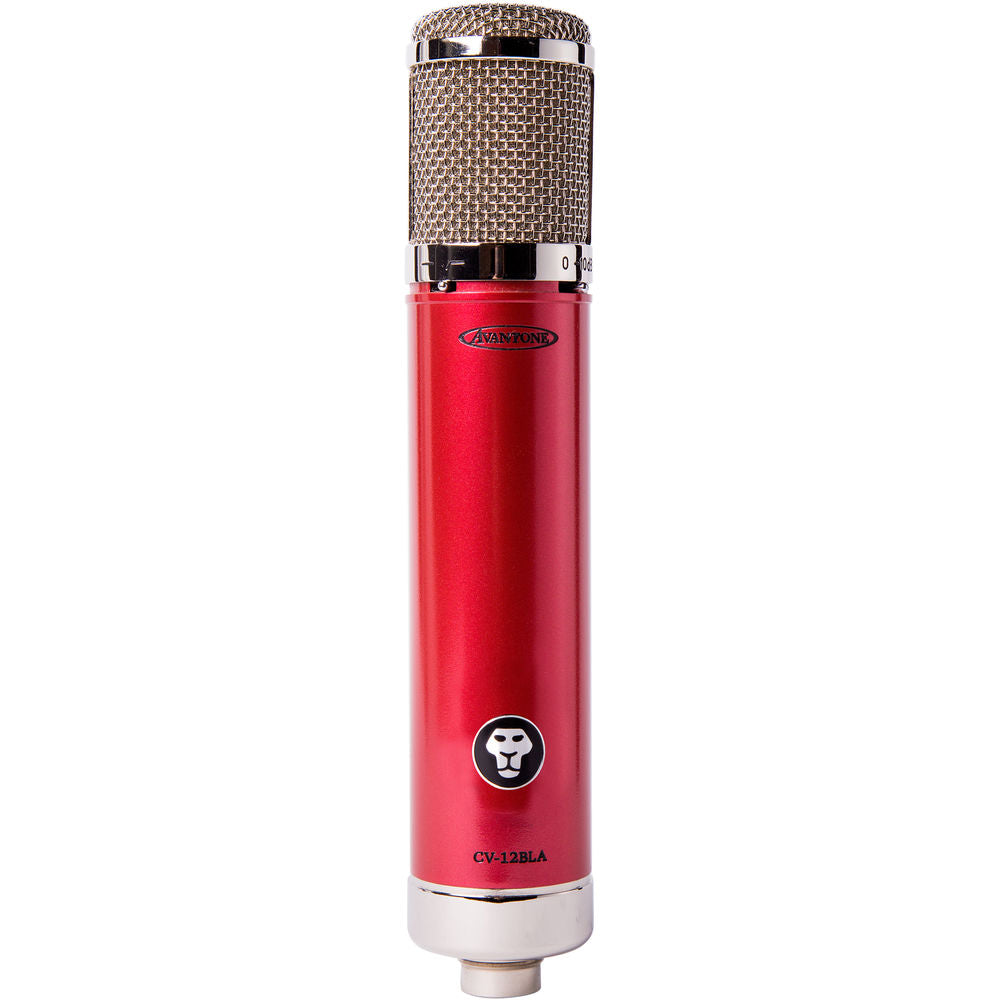

Avantone Pro CV-12 Multi-Pattern Large Diaphragm Tube Microphone w/ Black Lion Mod

Overview of Avantone Pro CV-12 Multi-Pattern Large Diaphragm Tube Microphone w/ Black Lion Mod

Teaming up with Black Lion Audio in Chicago, Avantone offers the CV-12 BLA, a modified version of the company's popular CV-12 multi-pattern large-diaphragm tube condenser microphone. It features a 34mm CK12-style capsule, a 6072A tube output stage, a power supply with low-noise circuitry, and delivers a warm, vintage tone with a flatter frequency response and greater headroom than the original. Designed to work as a utility mic in the studio, this microphone is ideal for capturing vocals, acoustic guitar, mandolin, drum overheads, room ambience, piano, and more.

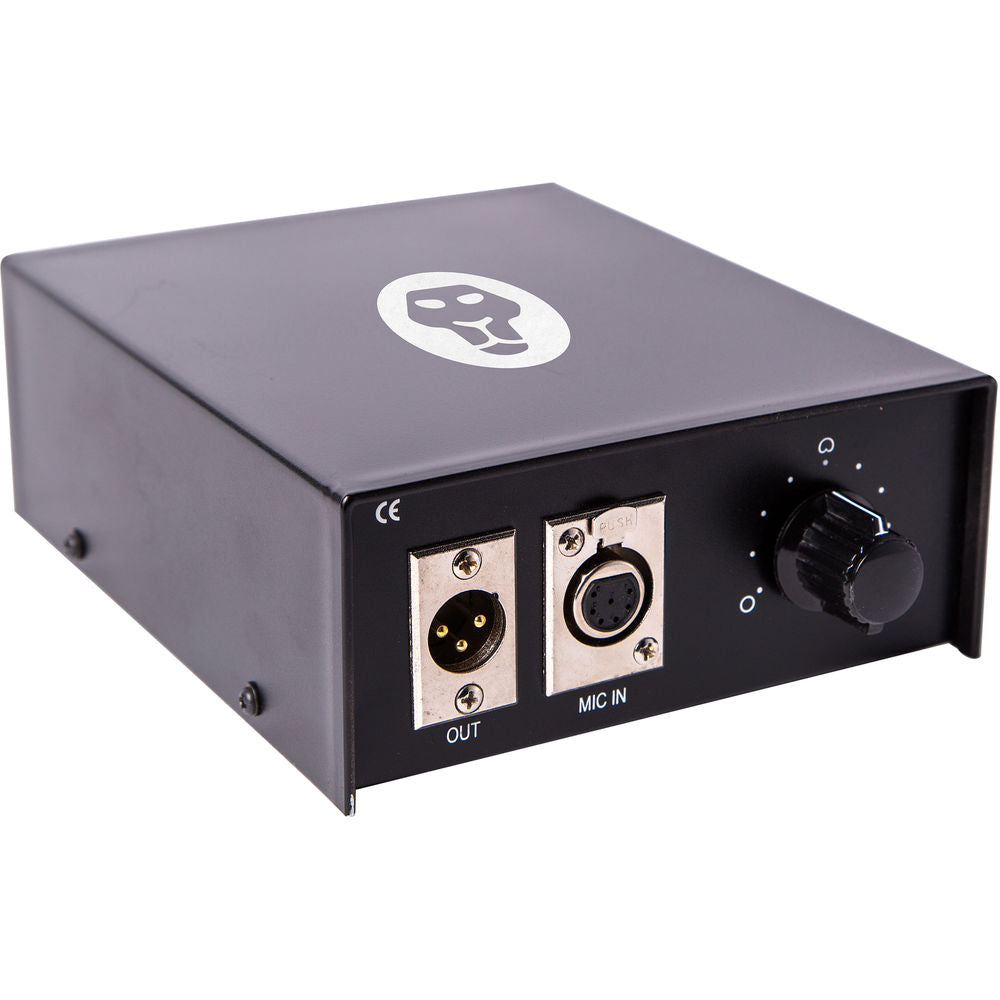

The power supply features a nine-position polar pattern knob that enables you to choose between omnidirectional, cardioid, figure-8, or positions in-between to optimize the pickup of the sound source. In addition, there is a 10 dB pad switch for close-miking loud instruments and voices without unwanted distortion, and an 80 Hz high-pass filter for minimizing low-frequency rumble.

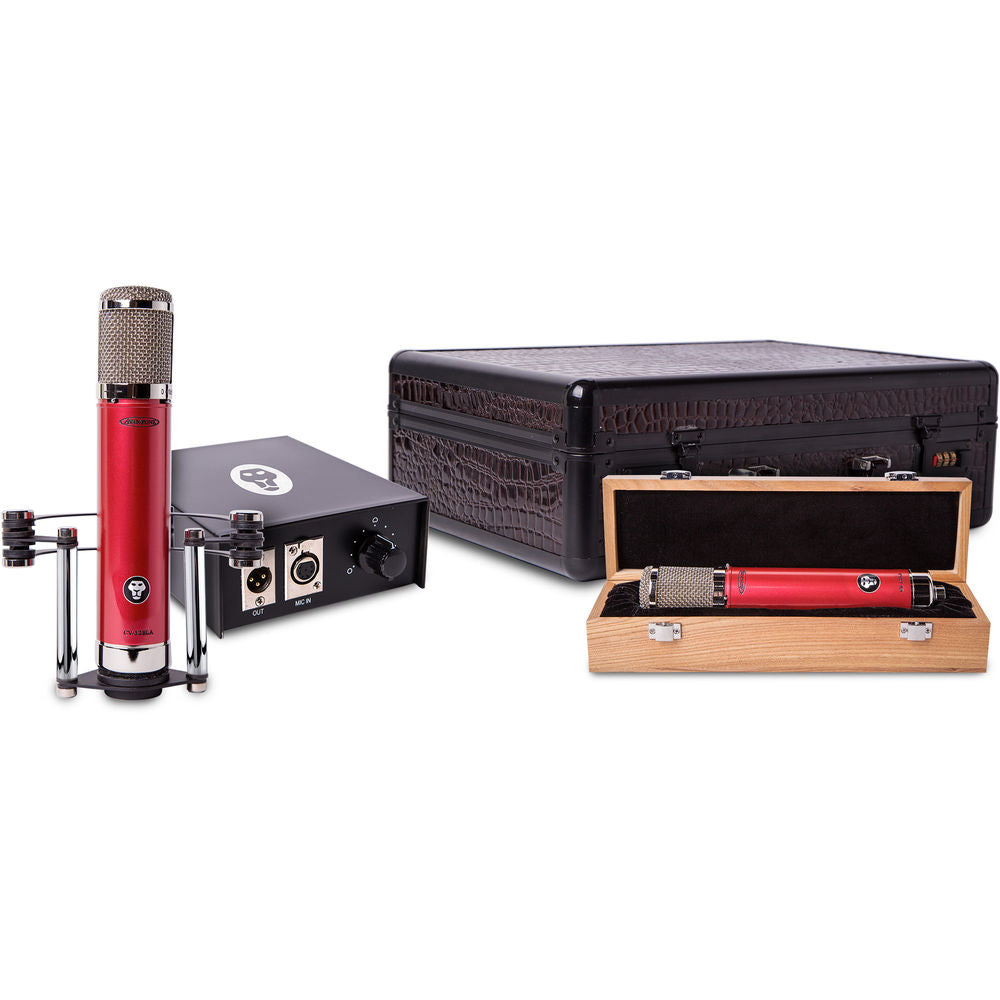

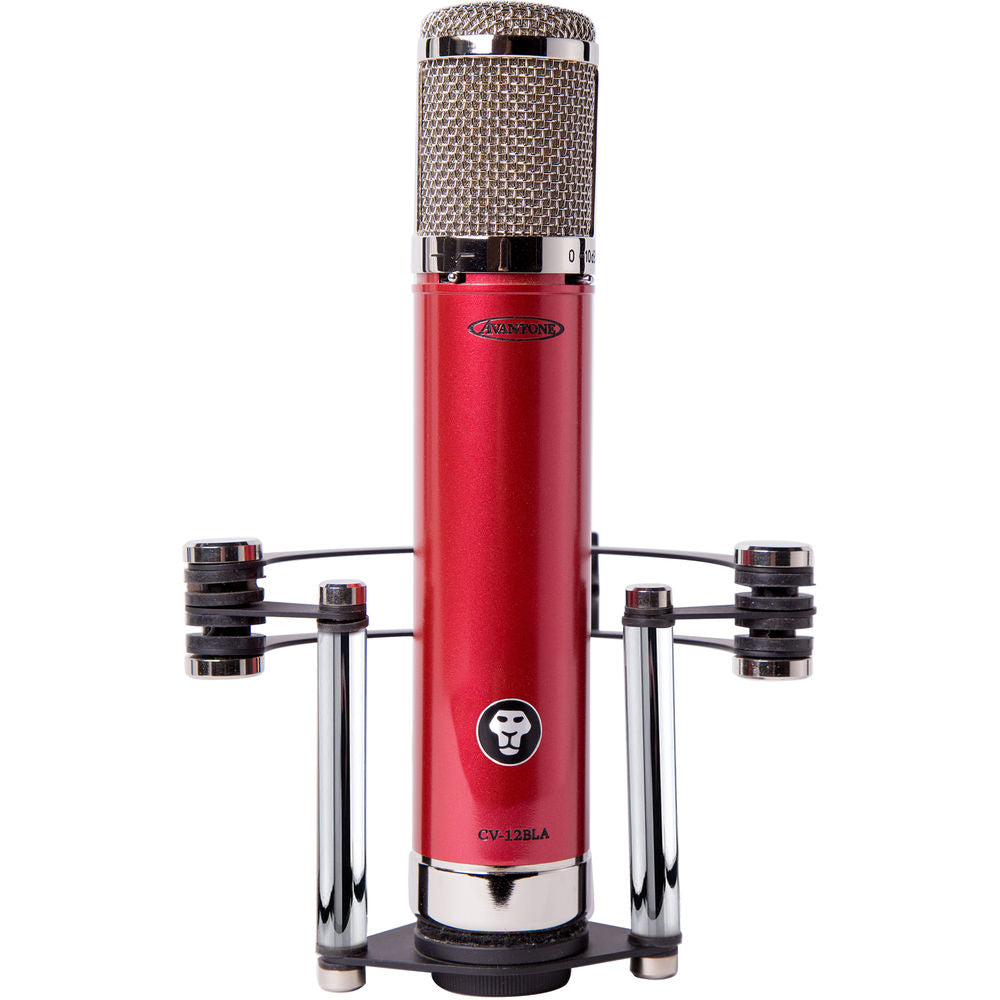

The CV-12 BLA comes with a Jetsun shockmount, which allows instruments and windscreens to get very close to the capsule for increased proximity effect. The unit ships with a padded wooden box to protect the mic and a deluxe faux-alligator case to transport the mic, power supply, and accessories in style.

New Features:

• Circuitry of original CV-12 modified by Black Lion Audio results in a flatter frequency response and higher headroom
• 32mm K67 capsule is replaced with a 34mm CK12-style capsule to smooth the highs and bring out the lows
• 20 Hz to 20 kHz frequency response, balanced across the entire sound spectrum
• 136 dB maximum SPL, 146 dB with pad engaged
• Transparent-sounding Solen FastCap coupling capacitor
• Completely redesigned power supply features a new low-noise circuit
• Regulated plate voltage supply
• Extra filtering on transformer bridge diode
• Included Jetsun shockmount allows instruments and windscreens to get several inches closer to the headshell for increased proximity effect

Other Features:

• Tube-type, true-condenser microphone
• Utility microphone sounds great on studio vocals, acoustic guitar, mandolin, drum overheads, room ambience, piano, and more
• 9 polar patterns selectable at PS-12 power supply
• Omnidirectional, cardioid, and figure-8 polar patterns, plus three steps between each
• Tube type: 6072A
• Switchable high-pass filter at 80 Hz
• Switchable 10 dB pad
• Metallic cabernet-red body with polished-nickel trim

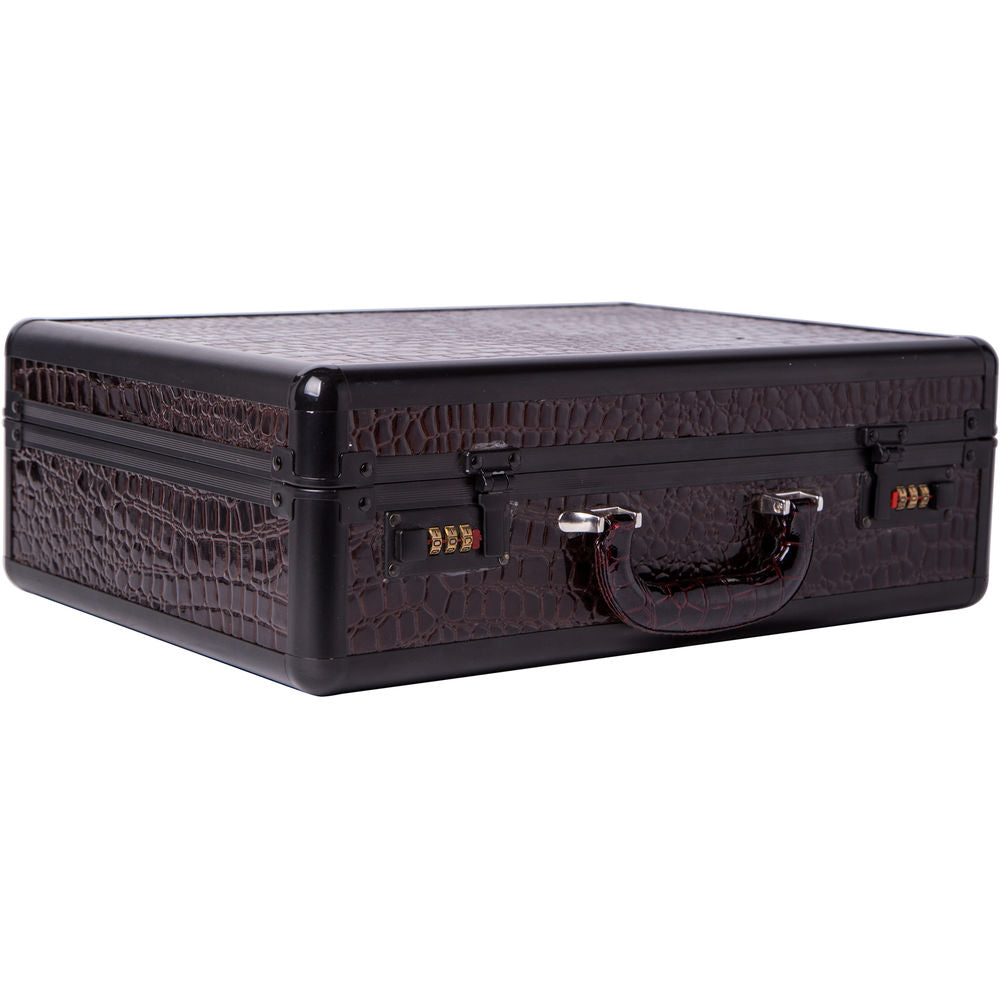

• Black deluxe faux-alligator case for transporting mic, power supply, and accessories

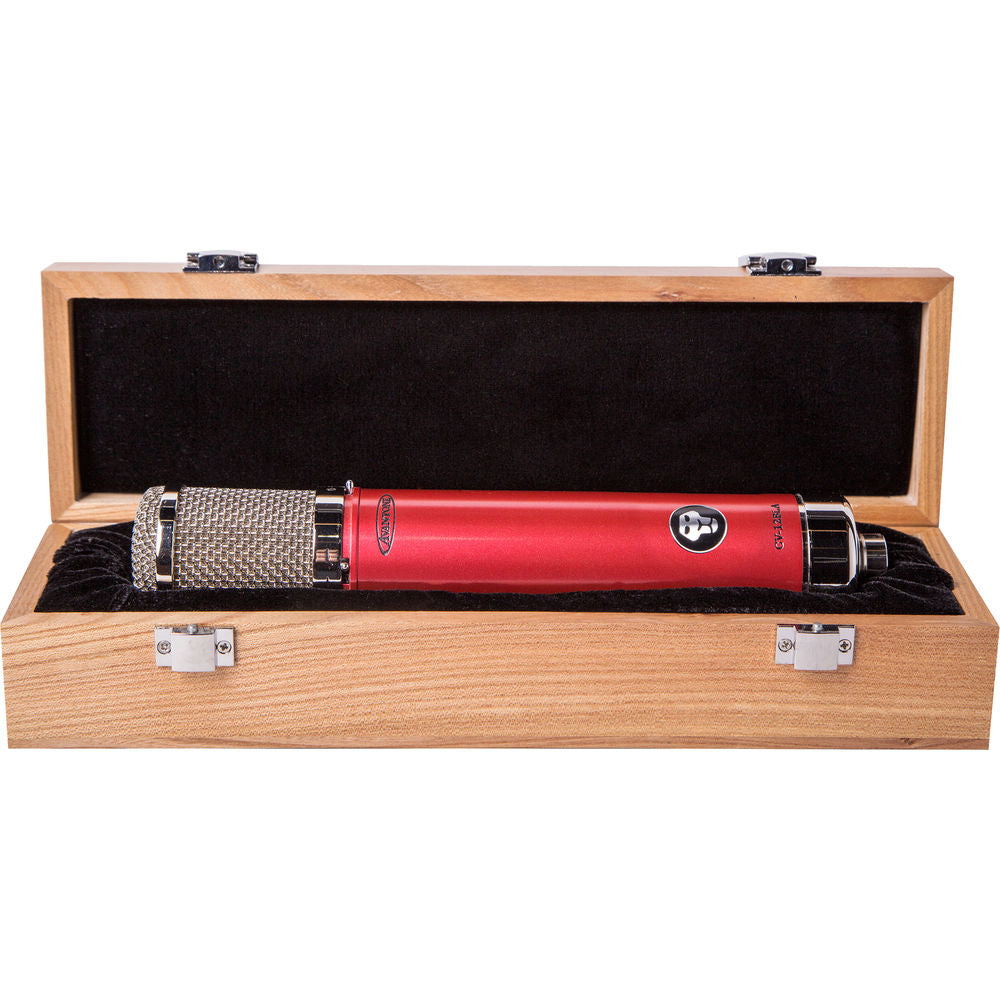

• Padded genuine wooden mic box

Specifications:

Polar Pattern:

• Cardioid
• Figure-8
• Omnidirectional

Element Type: Condenser

Sound Field: Mono

Diaphragm: 1.3" / 34 mm

Orientation: Side Address

Controls:

• Polar Pattern
• Pad: -10dB
• Low Cut/HPF: 80Hz, 6dB/Octave

Frequency Response: 20Hz - 20kHz

Maximum SPL: 146dB (with Pad)

Sensitivity: -35dB

Equivalent Noise Level: 17dB

Analog Output: 1x XLR 7-pin

Power Sources: External PSU

• User selectable AC input power
  • 115 VAC, 50 / 60 Hz
  • 230 VAC, 50 / 60 Hz

Circuitry: Tube (12AY7/6072A)

Colour: Red / Silver

Dimensions (Diam. x L): 1.81 x 9.33" / 46 x 237 mm

Weight: 1.8 lb / 0.82 kg
