Overview of Beachtek DXA-GO Attachment Rode Wireless GO Receiver to DSLR
The DXA-GO is a two-channel, audio adapter / bracket combo that lets you mount, connect and control your GO wireless receiver plus a second wireless or self-powered camera mic to your camera. Noise free passive circuitry requires no batteries or power to operate. Its compact size fits neatly on top of any mirrorless, DSLR or camcorder that has a standard mounting shoe. Includes 3.5mm stereo output cable.

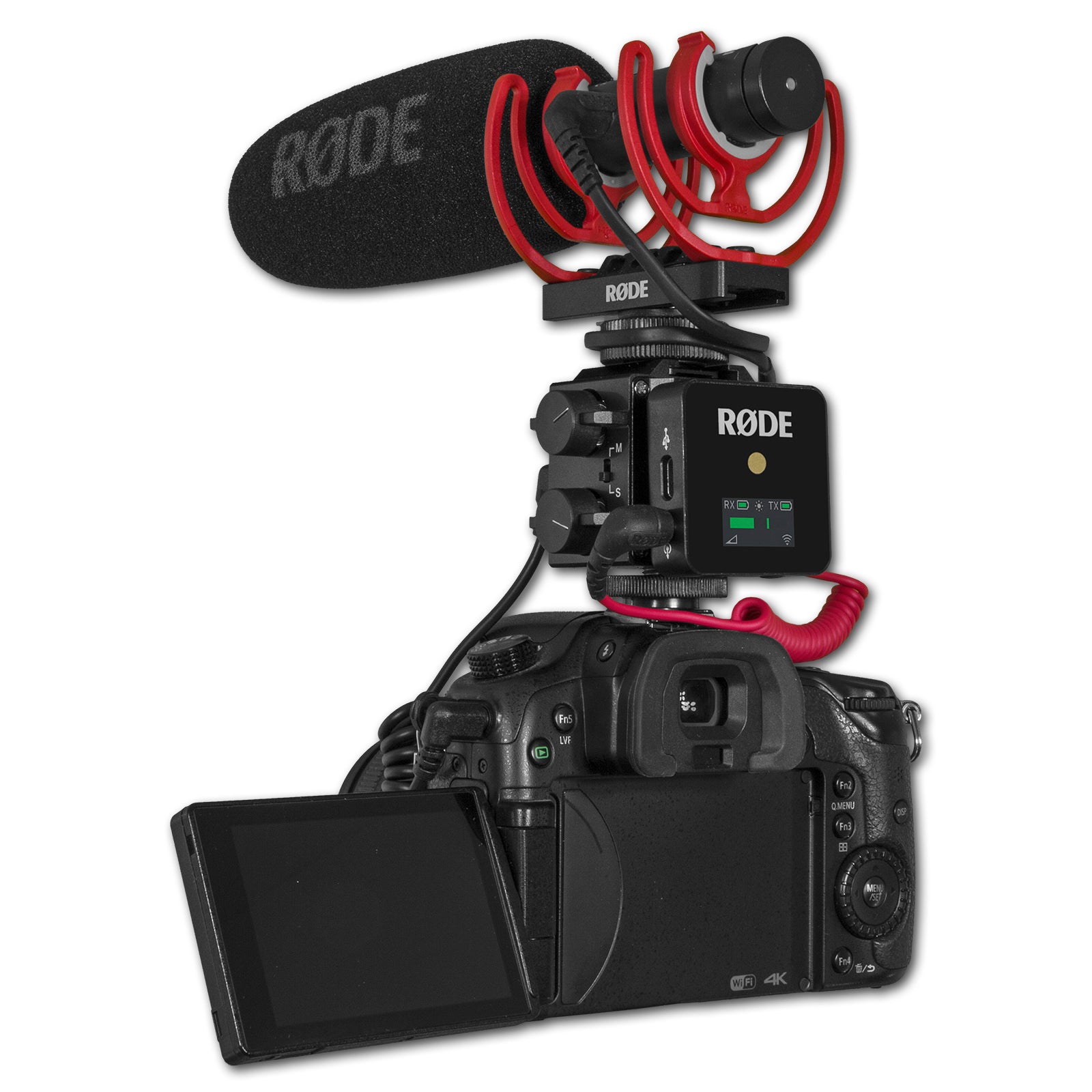

The mounting shoe on the front of the adapter allows you to position the GO receiver to face you while recording to easily view the display. Two additional shoes allow you to mount other accessories like a second wireless, light, or a self-powered camera mic like the popular RODE VideoMic Pro or new VideoMic NTG. Mounting the GO in front and a self-powered camera mic on top makes for a very neat, compact setup.
The two mono mini-jack and one stereo inputs provide plenty of versatility. Can be used with most wireless mics and high output self-powered mics. Controlling the audio levels is a snap real volume knobs mean no hunting through multi-layer menus trying to find or change settings. Since the audio is recorded directly to the camera, it will always be in sync with the video which eliminates the need for syncing in post.
With no electronics to get in the way, the DXA-GO provides noise free directly to the camera. The adapter is also virtually unclipable and offers an extremely wide dynamic range. Ideal for any wireless or mic that does not require additional amplification or plug-in power. Since it is passive, no batteries or power are required to operate the adapter.

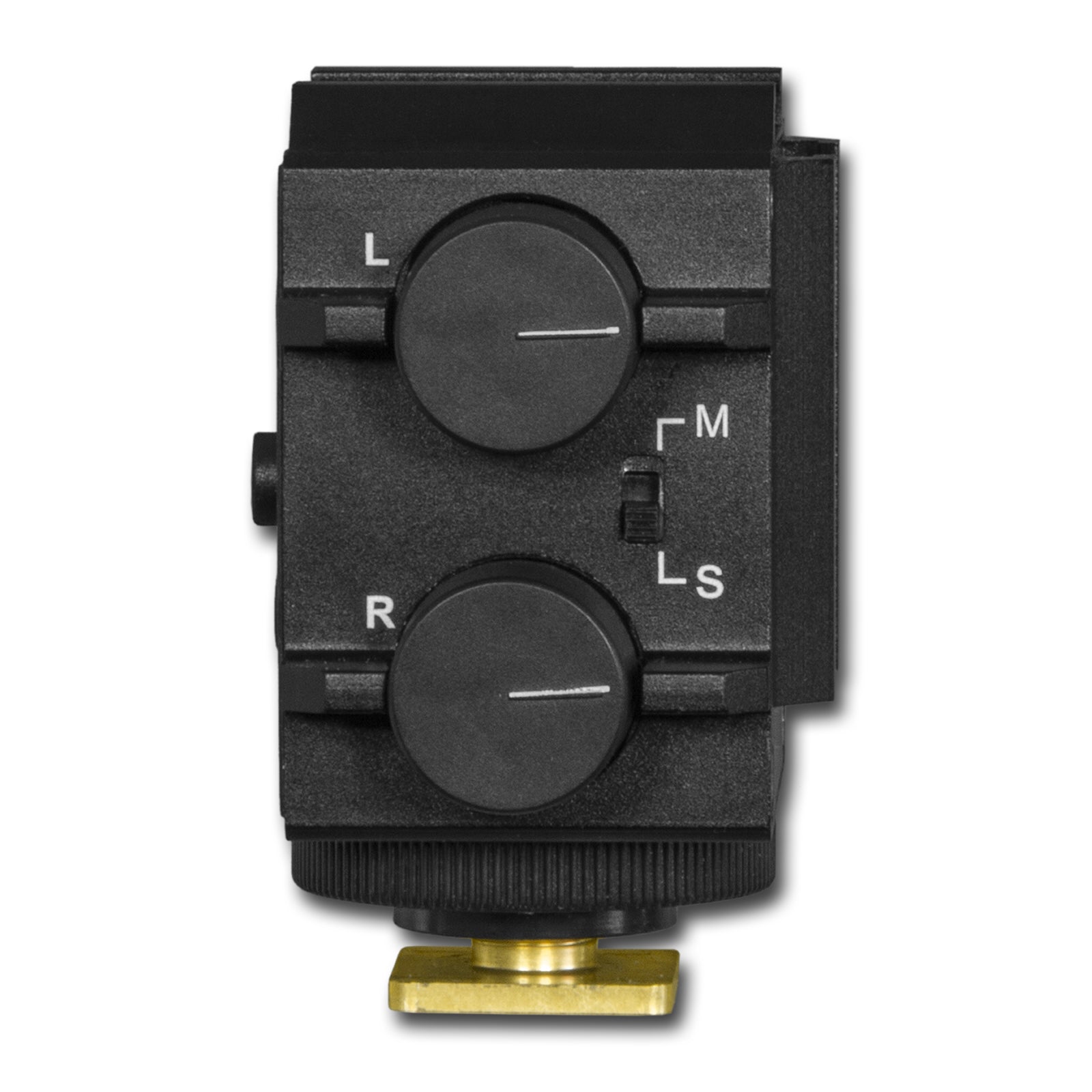

Quickly and easily adjust the proper recording levels without having to hunt through menus. Detented volume controls provide drift free operation and precise control. You can even use the bracketing feature to set two different levels on both channels when using a single mono mic giving you a backup in case one channel is blown out.
Set the output mode to STEREO when connecting two mono mics or one stereo mic for two channel recording. Set the output mode to MONO when using one mic for dual channel mono recording. You can also connect a mono mic that has a TRS connector to the STEREO input to bracket the audio.

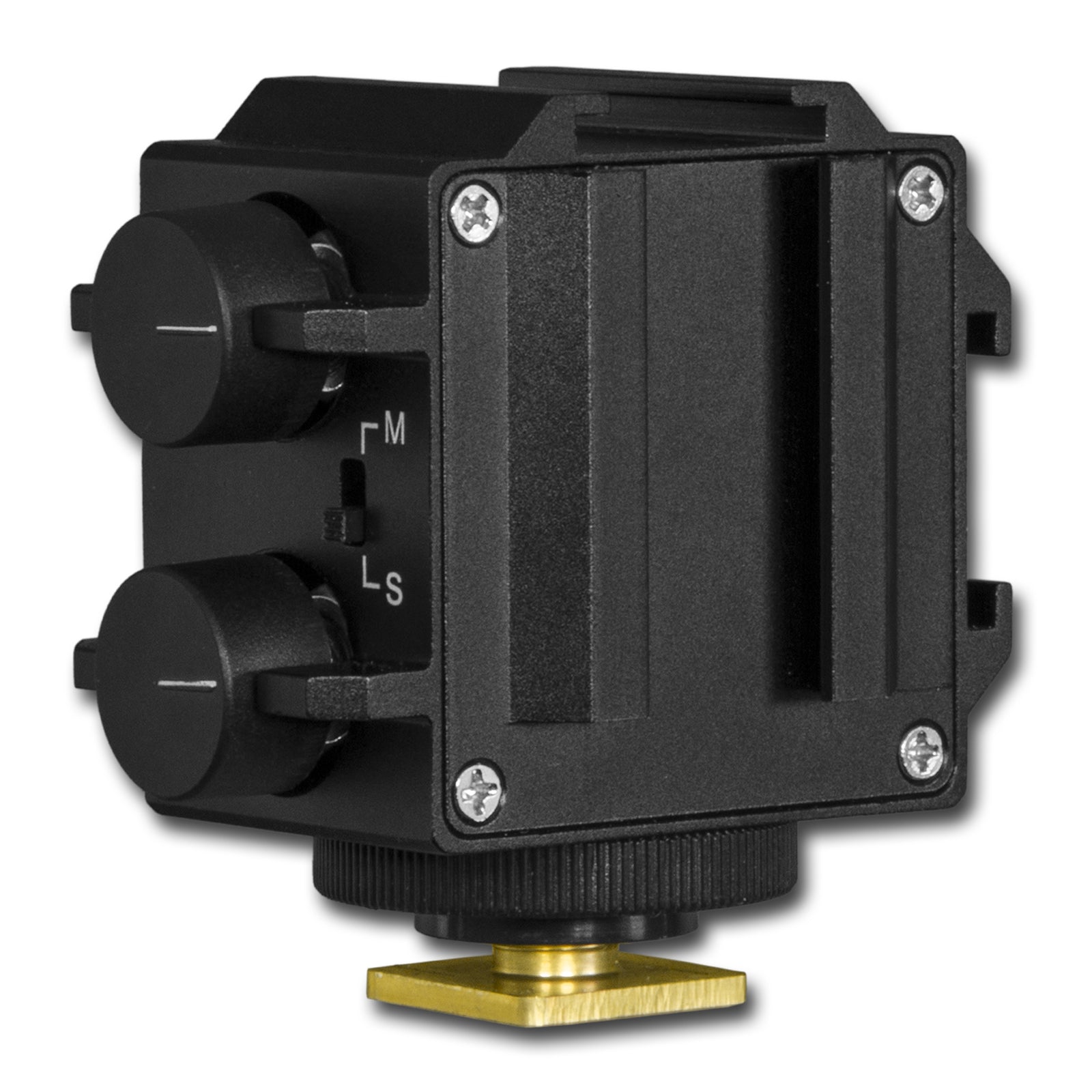

Quality metal connectors, recessed switches, and robust passive design make this super reliable and dependable. All wrapped up in a compact extruded aluminum chassis.
Features:

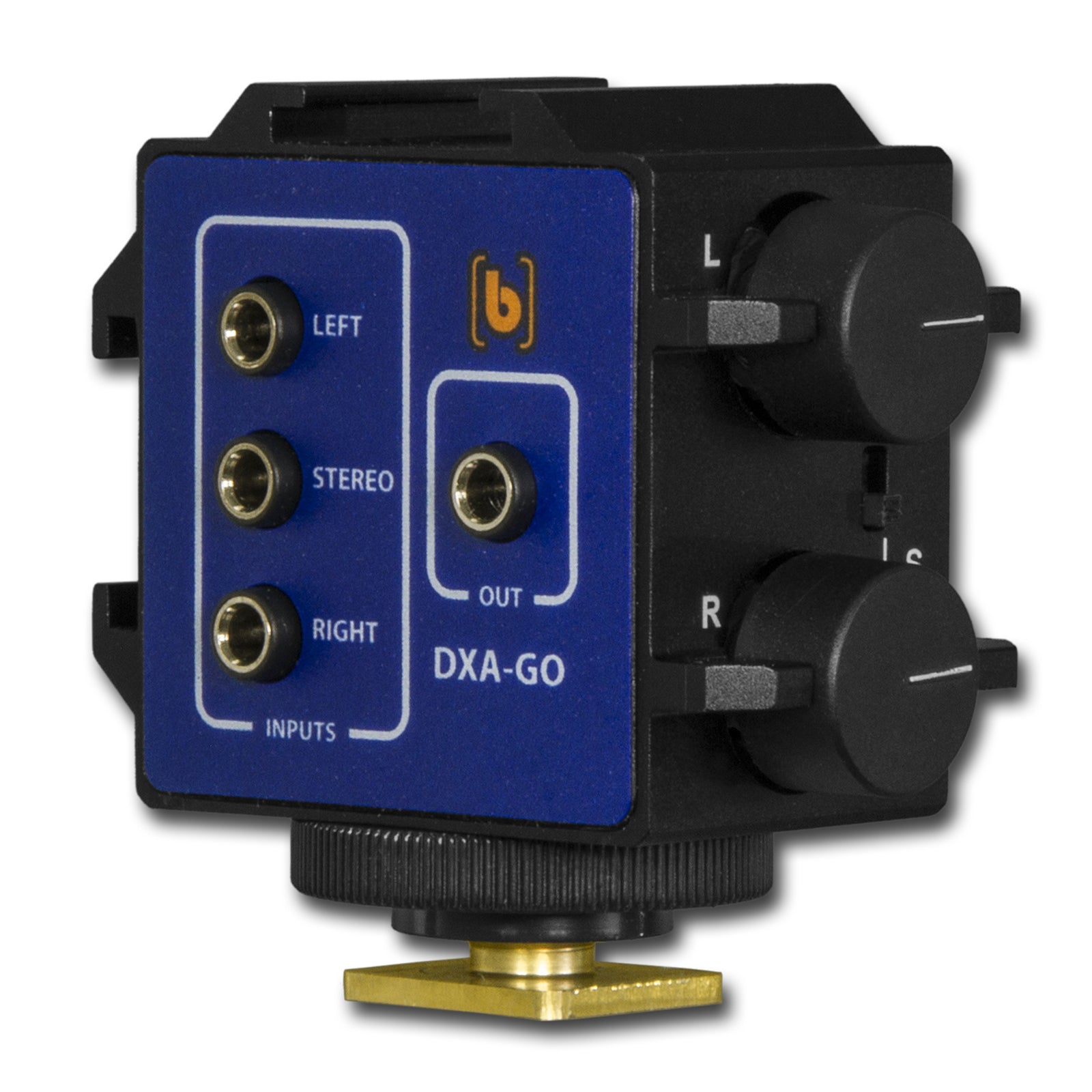

- Inputs: Two mono 3.5 mm jacks / One stereo 3.5 mm jack
- Output: One stereo 3.5 mm jack / Includes 3.5 mm TRS output cable
- Level Controls: Dual controls adjust the signal level output of each channel
- Output Selector: Selects mono or stereo output
- Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
- Dimensions: 2.25″ x 1.5″ x 2.38″ (58 x 37 x 60 mm) (L / W / H)
- Weight: 4 oz (0.13 kg)
Music City Canada is an authorized reseller for Beachtek products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
