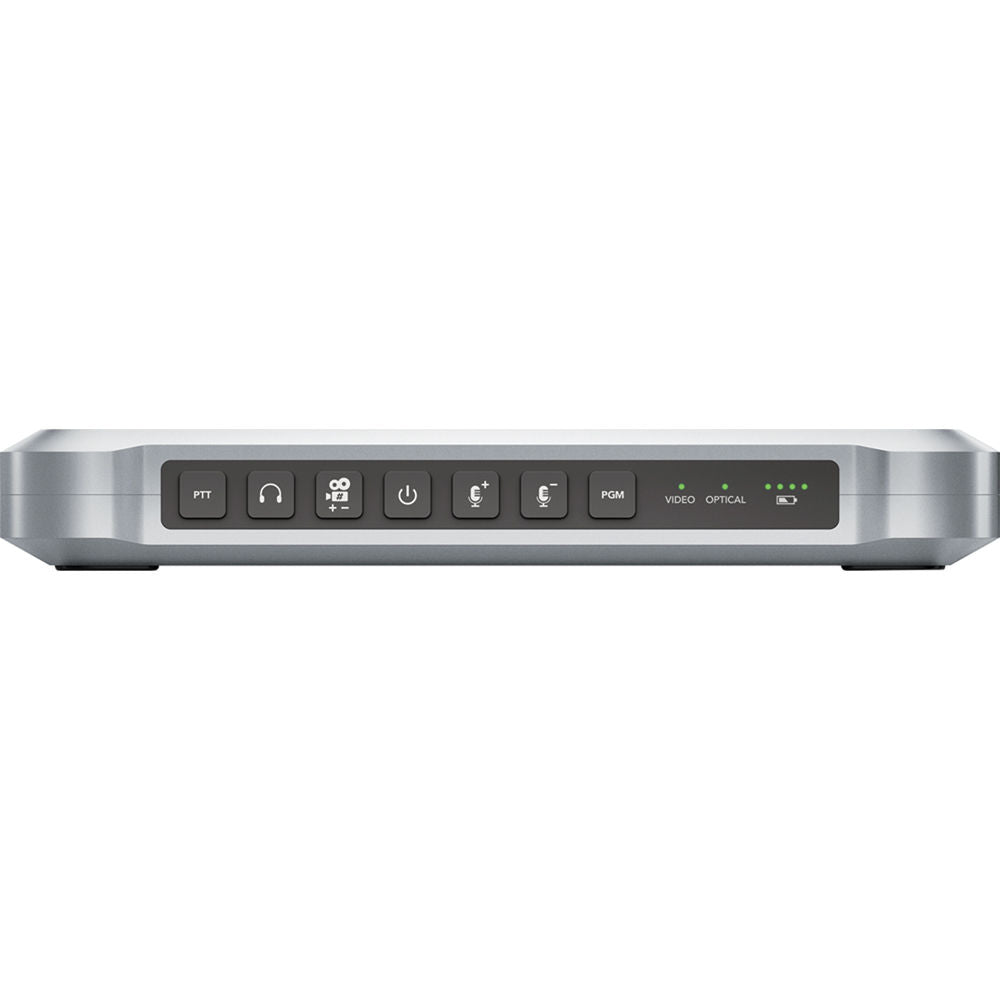

Blackmagic Design ATEM Camera Converter -SDI or HDMI to Optical Fiber

The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring. With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones. By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones. Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher’s program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output. You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs. Featuring an integrated belt clip, the camera converter can be attached to the belt for portability. With the help of a camera mount, the converter can be mounted onto a tripod. In addition, the camera converter features microphone inputs for audio capability. Made of aircraft-grade aluminum, the camera converter can withstand bumps and shocks without breaking. Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators. You can update converters firmware via a USB port. The camera converter can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location.

Features:

• Enables Extension of SDI/HDMI Cameras
• Transmission Distance - 28 miles (45km)
• Internal Battery
• Talkback Function
• 12V Power Connection
• 2 Tally LEDs
• Integrated Belt Clip / Camera Mount
• Microphone Inputs
• Aircraft-grade Aluminum Construction
• Built-in Button Pad

Specifications:

• SDI Video Input: 1 x 10 bit SD/HD switchable.
• SDI Video Output: 1 x 10 bit SD/HD switchable.
• HDMI Video Input: 1 x HDMI type A connector.
• HDMI Video Output: 1 x HDMI type A connector.
• Talkback Audio: 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
• Analog Audio: 2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In.
• Optical Fiber Video Input: 1 x single mode SD/HD switchable with LC connector.
• Optical Fiber Video Output: 1 x single mode SD/HD switchable with LC connector.
• Optical Fiber Audio Input: 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio.  Channels 15 & 16 are intercom audio.
• Optical Fiber Audio Output: 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.
• Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
• SDI Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 2K Format Support: 1 2K DCI 24p, 2K DCI 25p
• HDMI Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 59.94, 60
• SDI Compliance: SMPTE 259M, SMPTE 292M.
• Audio Sampling: Television standard sample rate of 48Khz,24 bit A/D conversion.
• Video Sampling: 4:2:2
• Color Precision: 10‑bit
• Color Space: REC 601, REC 709
• Multiple Rate support: SDI and HDMI are switchable between standard definitlon and high definition
• Software Included: Converter Utility.
• Operating Systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or later. Windows 8.1 and 10.
• Power Supply: 12V power supply included with international socket adaptors for all countries.
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: ATEM Camera Converter, SD card with software and manual
• Warranty: 3 Year Limited Manufacturer's Warranty.
