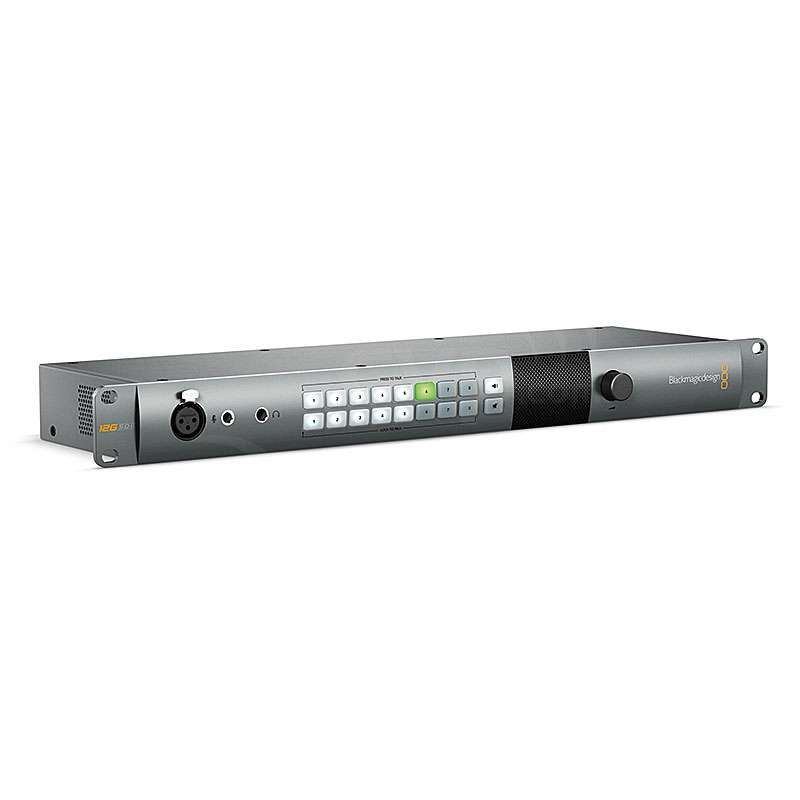

Blackmagic Design ATEM Talkback Converter 4K -Communicate w/up to 8 Cameras

With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel. This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry standard rack-mount equipment and furniture.

The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or the area is too loud. When connected to the ATEM Camera Converter without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication. Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allow you to control who hears what. The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.

Features:

• Communicate with up to 8 Cameras
• 8 x SDI I/O
• Camera Talkback via XLR, Mini
• Fits in 1 Standard Rack Unit
• Supports SDI Tally Output
• Camera Talkback
• Upgradeable to Accept 8 x Fiber I/O

Specifications:

• SDI Program Inputs: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.
• SDI Program Outputs: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.
• Talkback Audio: Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
• Analog Audio: 1 x stereo RCA monitoring output.
• SDI Camera Inputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
• SDI Camera Outputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
• SDI Outputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
• Optical Fiber Video Inputs (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.
• Optical Fiber Video Outputs (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.
• Optical Fiber Audio Inputs: 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
• Optical Fiber Audio Outputs: 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
• Computer Interface: 1 x mini-B type USB connector for firmware updates.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 60p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.
• Audio Sampling: Television standard sample rate of 48Khz,24-bit A/D conversion.
• Video Sampling: 4:2:2, 4:4:4
• Color Precision: 10-bit
• Color Space: REC 601, REC 709.
• Multiple Rate Support: SDI switches between SD, HD and Ultra HD 4K.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or later, Windows 8.1 and 10
• Power Supply: 100 - 240V AC input with redundant 12 - 31V DC input.
• Power Usage: 60 Watts
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
