Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher

Overview of Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher

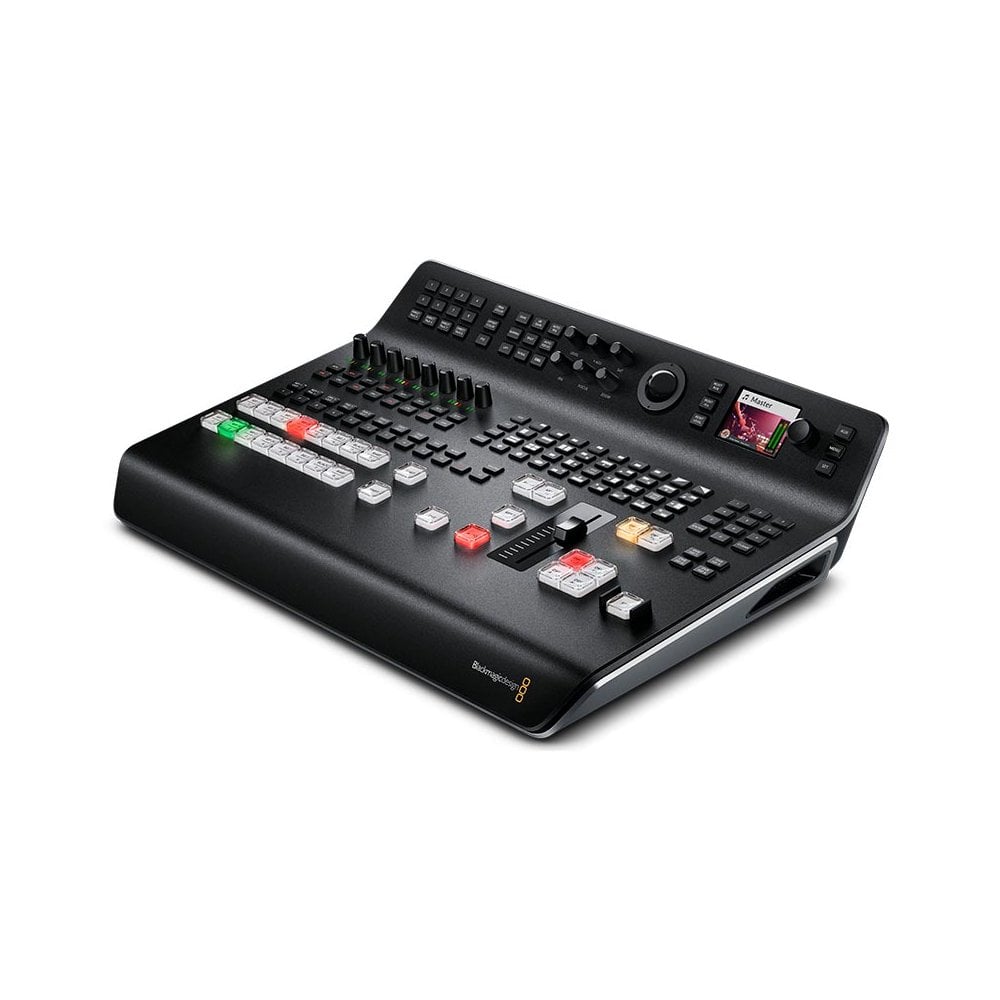

Designed for broadcasters and A/V professionals, Blackmagic Design's ATEM Television Studio Pro HD Live Production Switcher is an 8-input live production switcher with integrated control panel. Four of each HDMI and SDI inputs are available on the rear of the chassis, with both sets of inputs supporting SD and HD resolution from both professional and consumer cameras. The relatively small chassis fits in a standard equipment rack, allowing it to be installed on a sliding rack shelf or packed into a "fly-away-kit" for use on location. The control surface is replete with control buttons, knobs, and a fader bar. All this enables selecting camera inputs and controlling transitions, keyers, settings, and the DVE. Inputs and outputs are located on the rear of the unit. PGM output is available via SDI while multiview can be sent via SDI or HDMI. An AUX output lets you send video to an external display, which is great for live events with a projection setup. Four of the SDI outputs have embedded talkback audio for studio setups.

ATEM Television Studio switchers are the fastest and most affordable way to create incredible programs immediately from live events! They are perfect for broadcasters, professional sports, concerts, seminars, or even the new emerging generation of web broadcasters using platforms such as YouTube Live, Facebook Live and Twitch.tv. You can switch between multiple cameras, game consoles and computers in real time, all with broadcast quality transitions, graphics and effects! Both models feature clean professional switching so there’s never a glitch when changing sources. That means you can even use it as a front end controller for your AV system and switch between multiple sources with the press of a button!

Features:

• 8-Channel SDI/HDMI Switcher
• NTSC/PAL, HD, Computer Signal Compatible
• 10-Channel Digital Audio Mixer
• Built-In Front Panel Controls
• Multiview Output Through HDMI and SDI
• Upstream and Downstream Keyers
• DVE for Transitions and Keyers
• Media Players

Specifications:

• Total Video Inputs: 8
• Total Outputs: 8
• Total Aux Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G.
• Total Audio Inputs: 2 x XLR.
• Total Audio Outputs: 1 x Headphone.
• SDI Video Input: 4 x 10-bit SD/HD switchable. 2 channel embedded audio.
• HDMI Video Inputs: 4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
• Reference Inputs: Tri-Sync or Black Burst.
• Video Input Re‑Sync: On all 8 inputs.
• SDI Program Outputs: 5 x 10-bit SD/HD switchable.
• SDI Audio Outputs: 2 Ch embedded into SDI output.
• Total Multi Views: 1
• SDI Multi View Outputs: 1
• HDMI Multi View Outputs: 1
• SD Video Standards: 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
• HD Video Standards: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
• Ultra HD Video Standards: None
• SDI Compliance: SMPTE 259M, 292M and 424M.
• Video Sampling: 4:2:2 10‑bit
• Color Precision: 4:2:2 10‑bit
• Color Space: 4:2:2 YUV
• HDMI Input Resolutions for Computers: 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
• Colorspace Conversion: Hardware based real time.
• Processing Delay: 6 Lines.
• Audio Mixer: 10 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering, Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
• Upstream Keyers: 1 with Chroma/Linear/Luma key.
• Downstream Keyers: 2
• Chroma Keyers: 1
• Linear/Luma Keyers: 3
• Talkback Support: Built in, uses aviation headset.
• Mix Minus Support: Yes, on 4 camera PGM outputs.
• Transition Keyer (Stinger/DVE): DVE only.
• Total Number of Layers: 5
• Pattern Generators: 2
• Color Generators: 2
• DVE with 3D Borders & Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768.
• Number of Windows: 1 x 10
• Routable Windows: 8 routable and 2 fixed for Program and Preview.
• Tally: Red for program and green for preview indication.
• Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
• Windows Source Labels: Yes.
• Multi View Monitoring: 1 x 10 Views.
• Multi View Video Standard: HD
• Media Players: 2, with non volatile flash memory.
• Channels: Fill and key for each Media Player.
• Media Pool Still Image Capacity: 20 with fill and key.
• Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
• Control Panel: Built in with camera control. Software panel included. Supports optional broadcast panel.
• Control Panel Compatibilty: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Paneland ATEM 2 M/E Broadcast Panel.
• Control Panel Included: ATEM Software Control Panel included free for Mac 10.11 El Capitan, Mac 10.12 Sierra or later and Windows 8.1 64-bit or Windows 10 64‑bit.
• Software Updates: Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
• Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utilityconnected via USB to chassis.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10
• Power Supply: 1 x Internal 100 - 240V AC. 4 pin 12V DC.
• Power Usage: 40W
• Operating Temperature: 5° C to 40° C
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non‑condensing
