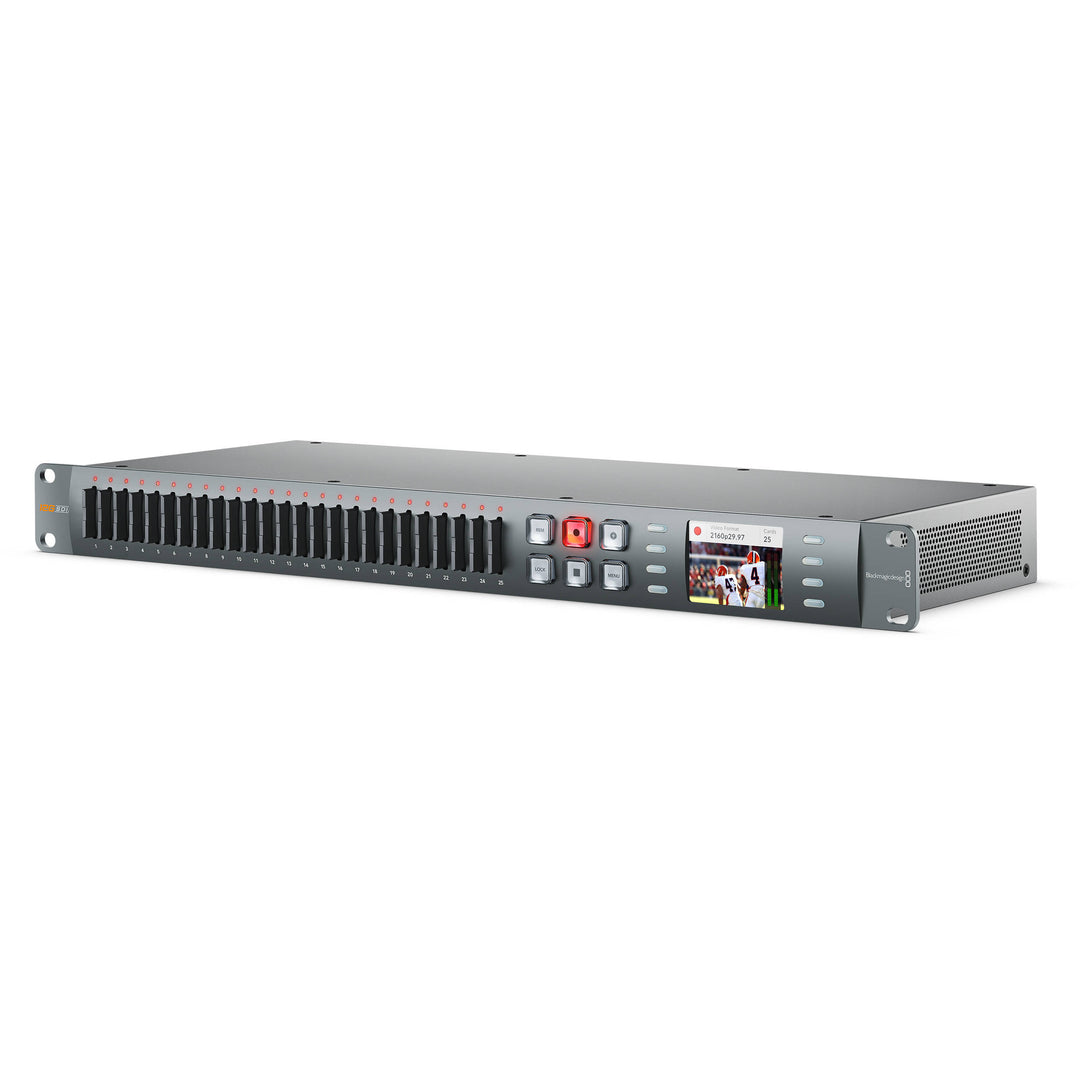

Blackmagic Design Duplicator 4K with 25 SD Card Slots

Overview of Blackmagic Design Duplicator 4K with 25 SD Card Slots

The Blackmagic Duplicator 4K is like two recorders in one! Featuring 25 built in SD card recorders, Blackmagic Duplicator 4K can record to all 25 cards at a time, or be changed to record to a single card at a time for long form recording. When recording to all 25 SD cards, you get a duplicator that gives you 25 x H.264 or H.265 copies that you can sell to customers the moment a live event finishes. Imagine selling your program as attendees leave concerts, training seminars, or even school events! When changed to record a single SD card at a time, Blackmagic Duplicator 4K becomes a powerful long form recorder. With 25 SD cards, you can record for weeks at a time without needing to change the cards out. You can even set Blackmagic Duplicator to automatically clear the oldest card for infinite recording, making it perfect for security and broadcast program logging.

From major network broadcasters to local affiliates, everything that gets shown on air needs to be archived for future reference. Instead of large, expensive servers that require massive storage closets, you can now record archives from air onto small, regular SD cards that are easily stored on a small shelf! The Blackmagic Duplicator 4K is perfect for recording directly from security cameras or cameras in situations where you can have sudden events happening that need to be captured and preserved! Even broadcasters can use this to capture sudden events that you don't want to miss. Just keep recording and if anything happens, you always have a broadcast quality H.265 or H.264 copy in perfect Ultra HD!

Features:

• Record on up to 25 SD Cards
• Real-Time H.265 Encoding
• Scalable for Larger Projects
• SDI and Optical Video I/O
• Ethernet Control
• Single File Recording
• Simultaneous Card Formatting
• Blackmagic Duplicator Software

Specifications:

• SDI Video Inputs: 1
• SDI Video Outputs: 1 x loop out.
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• SDI Audio Inputs: 16 channels embedded.
• SDI Audio Outputs: 16 channels embedded.
• Optical SDI: Supports optional SMPTE optical module.
• Optical Outputs: 1 x 10‑bit SD/HD/UHD auto switching.
• SD Card Interface: 25 x SD Card Slots
• Device Control: Sony™ compatible RS422 deck control port. 1 x in plus 1 x out.
• Computer Interface: 1 x USB 2.0 mini port for software updates and Blackmagic Duplicator software control.
• Ethernet: Ethernet supports 10/100/1000 BaseT.
• SD Video Standards: 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
• SDI Compliance: SMPTE 259M, 292M, 296M, 425M Level A and B
• SDI Metadata Support: HD RP188 and closed captioning.
• Audio Sampling: Television standard sample rate of 48kHz and 24‑bit uncompressed.
• Video Sampling: 4:2:2
• Duplicate Recording Mode: Duplicate recording mode simultaneously records to all media in Blackmagic Duplicator 4K and to additional units connected via RS422.
• Single Disk Recording Mode: Single Disk recording mode records sequentially to all media in the primary Blackmagic Duplicator 4K, then sequentially to additional units connected in series via RS422. Recording will automatically stop when media in all units is full.
• Disk Overwrite Recording Mode: Disk Overwrite recording mode records sequentially to a single Blackmagic Duplicator 4K, overwriting media in a continuous loop until the recording is stopped.
• Record Codec: 8‑bit H.264 or 10‑bit H.265 at 4:2:0 with ACC audio.
• Media: 25 x UHS‑I for SD, HD and Ultra HD recording.
• Media Type: Class 10 minimum. SDXC UHS‑I and SDHC UHS‑I SD cards. Also supports UHS‑II SD cards.
• Media Format: CaBuilt in Control Panel: 6 buttons for transport and menu control. Includes record, append record, stop, menu, remote and control panel lock buttons. 2.2 inch color display.
• External Control: RS‑422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
• Software Included: Blackmagic Duplicator
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software
• Display: 1x built in high res LCD 320 x 240 for menu settings, status, format, audio level and total number of SD cards.
• Physical Installation: 1 rack unit size. Less than 7 inches deep.
• Operating Systems: Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1 and 10
• Power Supply: 1 x Internal 100 ‑ 240V AC
• Operating Temperature: 5 to 50°C Environment
• Storage Temperature: -20° to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non‑condensing
