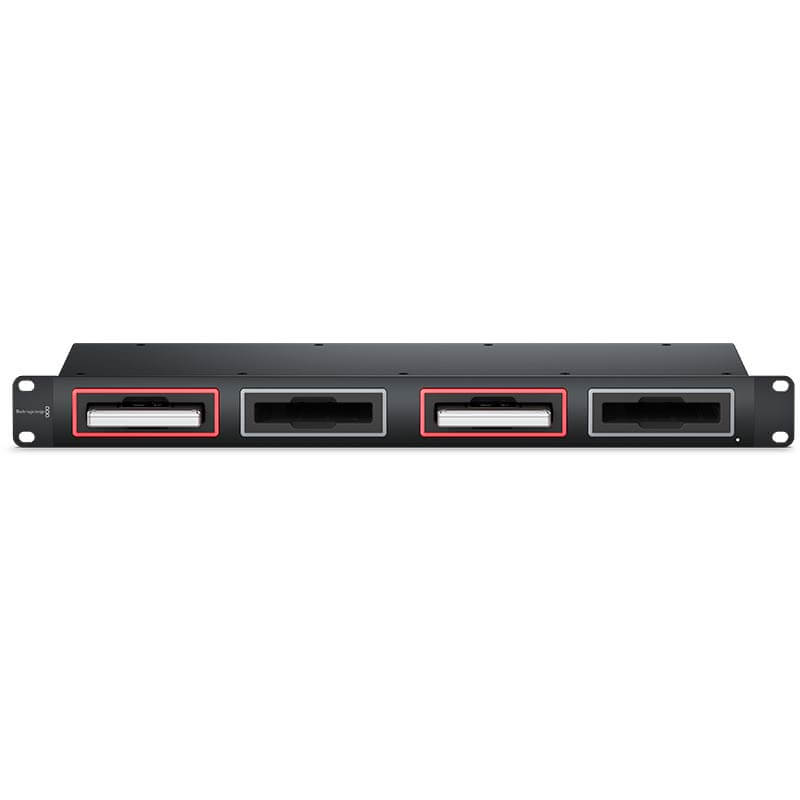

Overview of Blackmagic Design MultiDock 10G 4-Slot SSD Dock with 10 Gb/s USB Type-C Port
Blackmagic MultiDock 10G is an advanced SSD dock that lets you access 4 separate SSDs via a single high speed 10 Gb/s USB‑C connection. Unlike cheap consumer adapters, Blackmagic MultiDock 10G has been specifically designed for the film and television industry and features a rack mount design with an independent SATA driver chip on each disk, ensuring much faster data transfer speeds. That's perfect for editors, colorists and media management on set! It can even be used for SSD compatibility on HyperDeck Extreme! Only Blackmagic MultiDock 10G gives you the industrial strength design you need for professional work.
The Blackmagic MultiDock 10G is a compact 1 RU all metal design you can mount in any professional rack. Each disk slot features an illuminated disk indicator so you can see when disks are being accessed. The design is also repairable so you can replace the socket connector in each slot. Simply plug into any USB‑C Mac or Windows computer and there is no software to install. The rear panel features 2 USB‑C connections and a slide switch to allow selecting between using 4 disk slots on a single USB‑C connection, or 2 slots on each USB‑C connection for shared use. Plus the built in AC power supply provides lots of power to run 4 SSDs or hard disks at the same time.
Blackmagic MultiDock supports up to 4 independent 2.5 inch SSDs so it’s possible to edit directly from the disks you recorded onto. Simply plug in your SSDs and they will mount on your Mac OS X and Windows computers like regular hard disks! Because Blackmagic MultiDock features 4 independent disk slots, you can mount all your media from a shoot all at the same time! Blackmagic MultiDock 10G is perfect for accessing media recorded with the URSA Mini Pro SSD Recorder. It's also the perfect solution to add SSD compatibility to HyperDeck Extreme 8K as it will let you interchange disks between HyperDeck Studio models. You can even stripe multiple disks together for a super fast RAID array!
Features:
- 4-Slot SSD Dock, 10 Gb/s USB Type-C Port
- Independent SATA Driver Chip per Slot
- Connect up to 4 Disks to Popular NLEs
- 2.5" SATA 3 6 Gb/s SSD Interfaces
- 1 RU All-Metal Rackmount Design
- Seamless Workflow with HyperDeck Extreme
- Flexible RAID Storage
- Mac/Windows Compatible
Specifications:
- SSD Interface: 4 x 2.5" SATA 3 6Gb/s.
- Computer Interface: 2 x USB‑C 3.1 Gen 2 (up to 10Gb/s)
- Power Supply: 1 x Internal 100 - 240 AC.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20 to 45º C (-4º to 113º F)
- Relative Humidity: 0% to 90% non-condensing
