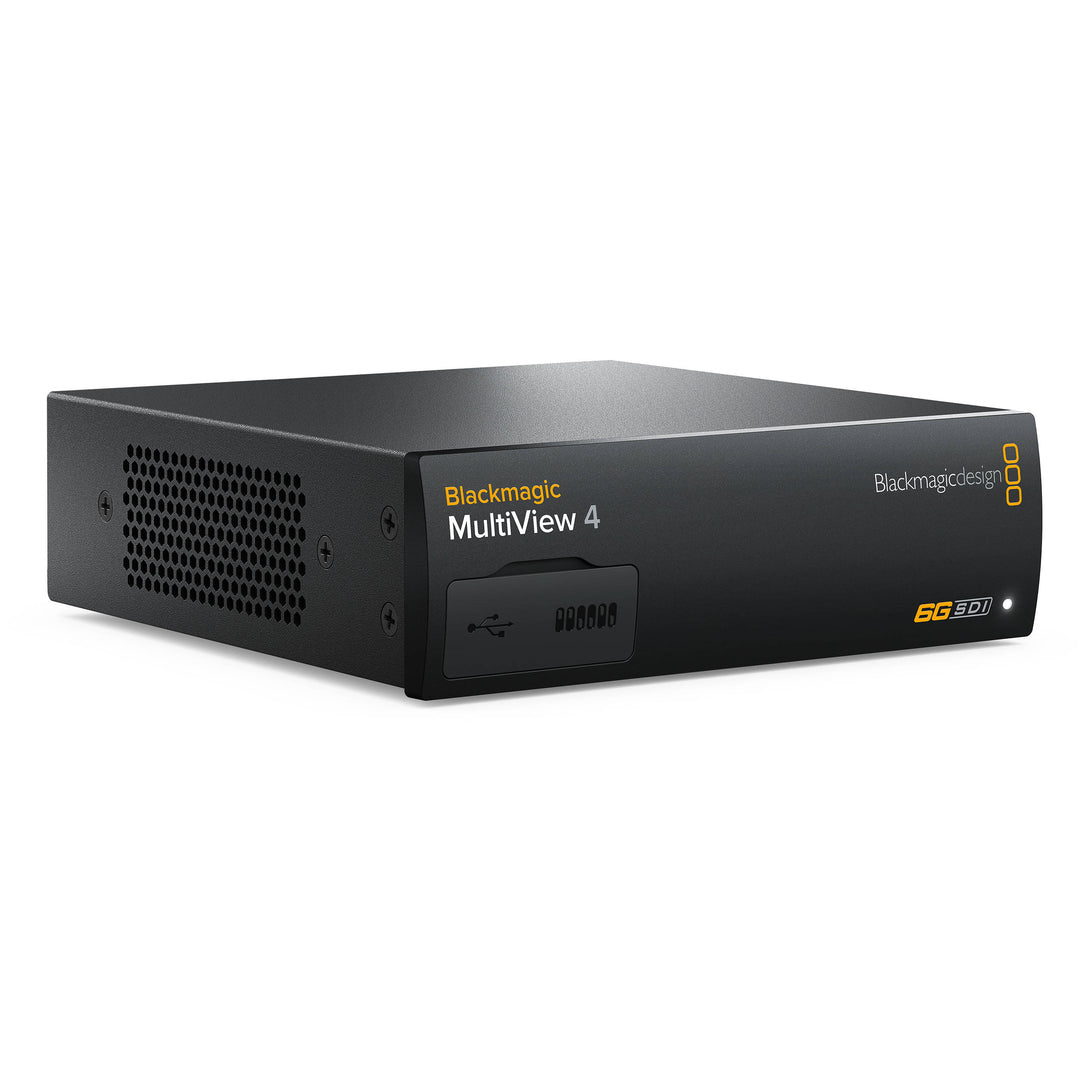

Blackmagic Design MultiView 4 with 4 x 6G-SDI Inputs with Loop Thru

The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity. The MultiView 4 allows for 2x2 display with each input fully re-synchronized. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

Housed in a 1 RU machined aluminum frame, the MultiView 4 is ready for use in the studio, broadcast truck, or even on location. It can be controlled with the included control software via the Ethernet port or by an optional Teranex front panel (not included). For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240 VAC, or you can power the unit by 48 VDC PoE+.

Features:

• 4x 6G-SDI Inputs with Loop Outputs
• 1x SDI & 1x HDMI MultiView Outputs
• Supports SD, HD, UHD 4K, DCI 4K
• Independent Inputs Allow Mixing Formats
• Standard 2x2 Configuration
• Ethernet for Remote Control
• 1 RU Height Machined Aluminum Chassis
• Built-In Multi-Voltage Power Supply
• Accepts 48 VDC PoE+

Specifications:

• SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
• SDI Video Outputs: 4 loop, 1 HD/Ultra HD.
• SDI Rates: 270Mb, 1.5G, 3G, 6G.
• SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G‑SDI
• HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
• SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
• Reference Input: None
• Multi Rate Support: Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
• Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet.
• Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 24p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
• Audio Meters: Each view, VU standard.
• Source Routing: None
• SDI Video Sampling: 4:2:2 and 4:4:4.
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24‑bit.
• SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
• SDI Color Space: YUV or RGB for inputs, YUV for outputs.
• SDI Auto Switching: Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
• Built in Control Panel: None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
• External Control Panel: None
• Display: Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
• Software Control: MultiView software included free for Windows™ and Mac™.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or later, Windows 8.1 and 10.
• Power Supply: IEC power cable required, 90 ‑ 240V AC input.
• Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on.
• Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
• Power Consumption: 16 Watts
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: Blackmagic MultiView 4, SD card with software and manual
