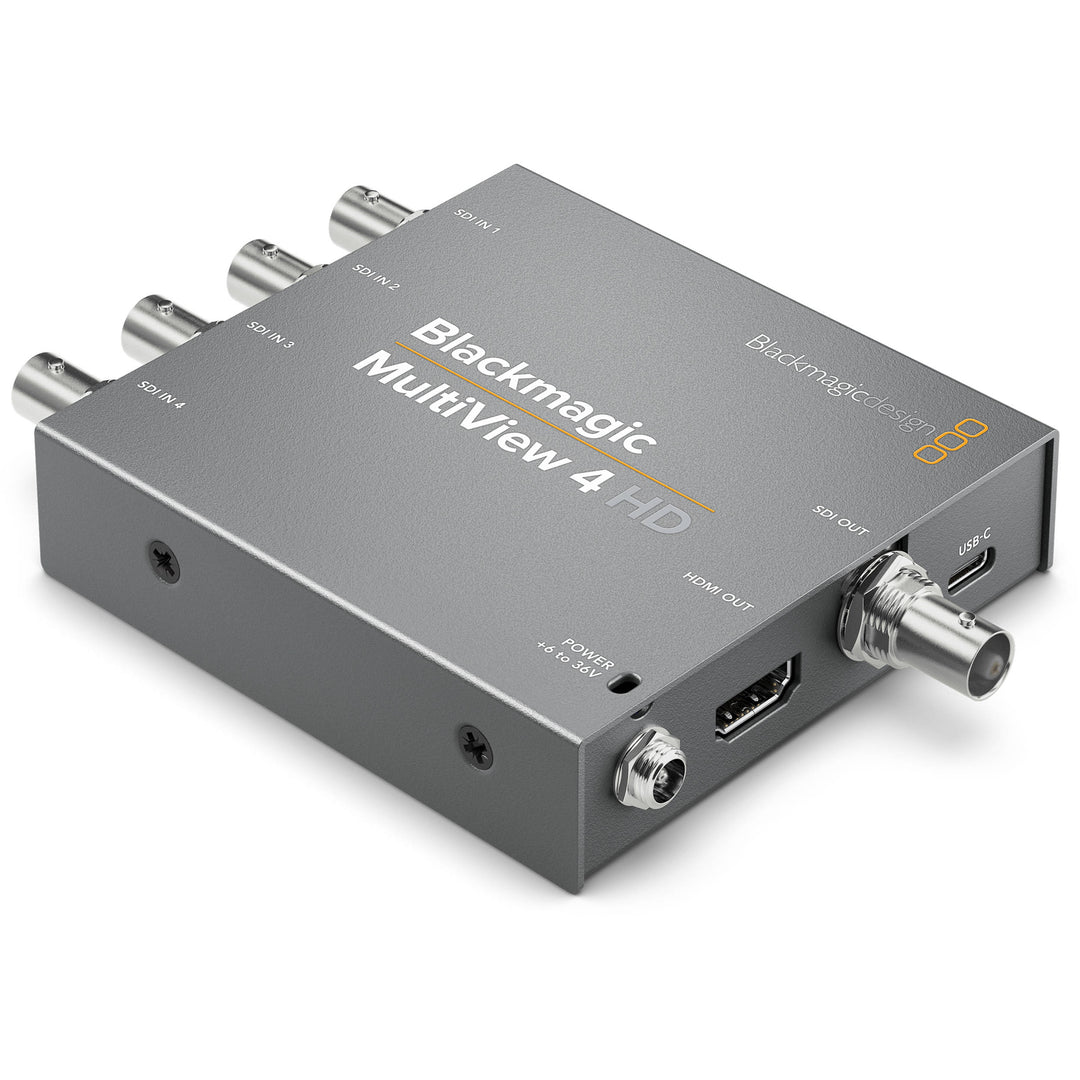

Overview of Blackmagic Design MultiView 4 HD Micro-Converter with 4 x SD/HD/3G-SDI Inputs
The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!
Features:
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Display Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer
Specifications:
- SDI Video Inputs: 4 x 10-bit SD-SDI and HD-SDI.
- SDI Video Outputs: 1 x HD-SDI.
- SDI Rates: 270Mb, 1.5G, 3G.
- SDI Video Multi View Outputs: 1 x 10-bit HD-SDI.
- HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
- SDI Reclocking: On all SDI outputs, auto switching between standard definition or high definition.
- Reference Input: None
- Multi Rate Support: Auto detection of SD or HD.
- Updates: USB 2.0 high speed (480Mb/s) interface.
- Configuration: USB 2.0
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
- Audio Meters: Each view, VU standard.
- Source Routing: None
- SDI Video Sampling: 4:2:2 and 4:4:4.
- SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
- SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
- SDI Color Space: YUV or RGB for inputs, YUV for outputs.
- SDI Auto Switching: Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
- Software Control: MultiView software included free for Windows™ and Mac™.
- Internal Software Upgrade: Via included updater application.
- Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later, Windows 8.1 and 10.
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
- Power Fail Protection: MultiView 4 HD settings preserved and restored instantly at power on.
- Power Consumption: 5.5 Watts
- Operational Voltage Range: 6 to 36V DC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: Blackmagic MultiView 4 HD
- +12V universal power supply with international socket adapters
