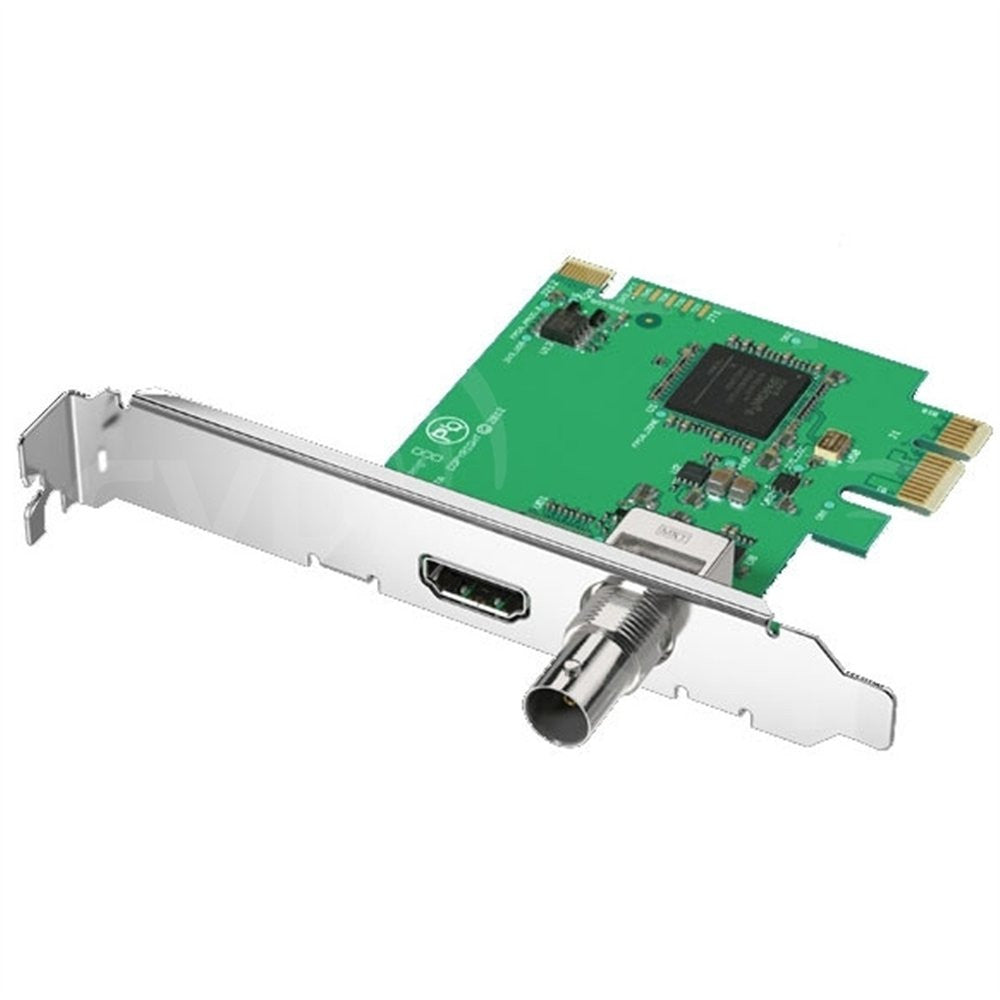

Blackmagic Design DeckLink Mini Monitor 1-Lane PCIe Slot Playback Card

The Blackmagic Design DeckLink Mini Monitor is a 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots. In contrast to a full capture and playback input/output card, the DeckLink Mini Monitor provides you with just the playback and monitoring functionality for performing color-correction and delivering client presentations on high-resolution HDMI or SDI monitors. The card supports up to 1080p30 formats and it outputs up to 10-bit uncompressed video. You can output via both the SDI and HDMI connections simultaneously or just one of them. The outputs are active and begin functioning right away when you plug into them. The card also automatically switches between SD and HD formats, so it'll handle all common video formats. Two PCIe shields are included for both full-height and low-profile PCIe slots.

Features:

• Playback & Monitoring Functionality
• For High-Resolution Color Correction
• 1-Lane PCIe Slot Card (for 1-16 Lanes)
• SDI and HDMI Outputs
• Up to 1080p30 Resolution Support
• Uncompressed 10-Bit Video Output
• 4:2:2 Video Sampling Support
• REC 601/709 Color Space Support
• Color Space Conversion / Down Conversion
• Mac, Windows, and Linux Compatible

Specifications:

• SDI Video Outputs: 1 x 10 bit SD/HD switchable.
• SDI Audio Outputs: 8 channels embedded in SD and HD.
• HDMI Video Outputs: 1 x HDMI 1.4 type A connector.
• HDMI Audio Outputs: 8 Channels embedded in SD and HD.
• Computer Interface: PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots.
• Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
• Software Applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
• Other supported applications include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60. 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M and 292M.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Color Precision: 8-bit & 10-bit.
• Video Sampling: YUV 4:2:2.
• Color Space: REC 601, REC 709.
• HDMI Configuration: HDMI automatically configures to connected display.
• HDMI Resolution: Pixel for pixel HD resolution output to connected device.
• Multiple Rate support: HDMI and SDI video connections are switchable between standard definitlon and high definition.
• Colorspace Conversion: Hardware based real time.
• HD to SD Down Conversion: Software based down conversion during video playback.
• HD Cross Conversion: Software based cross conversion from 720p to 1080HD on playback.
• Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10, both 64-bit. Linux
• Power Consumption: 4 Watts
• Operating Temperature: 5° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: DeckLink Mini Monitor, Low profile slot bracket
• Warranty: 3 Year Limited Manufacturer's Warranty.
