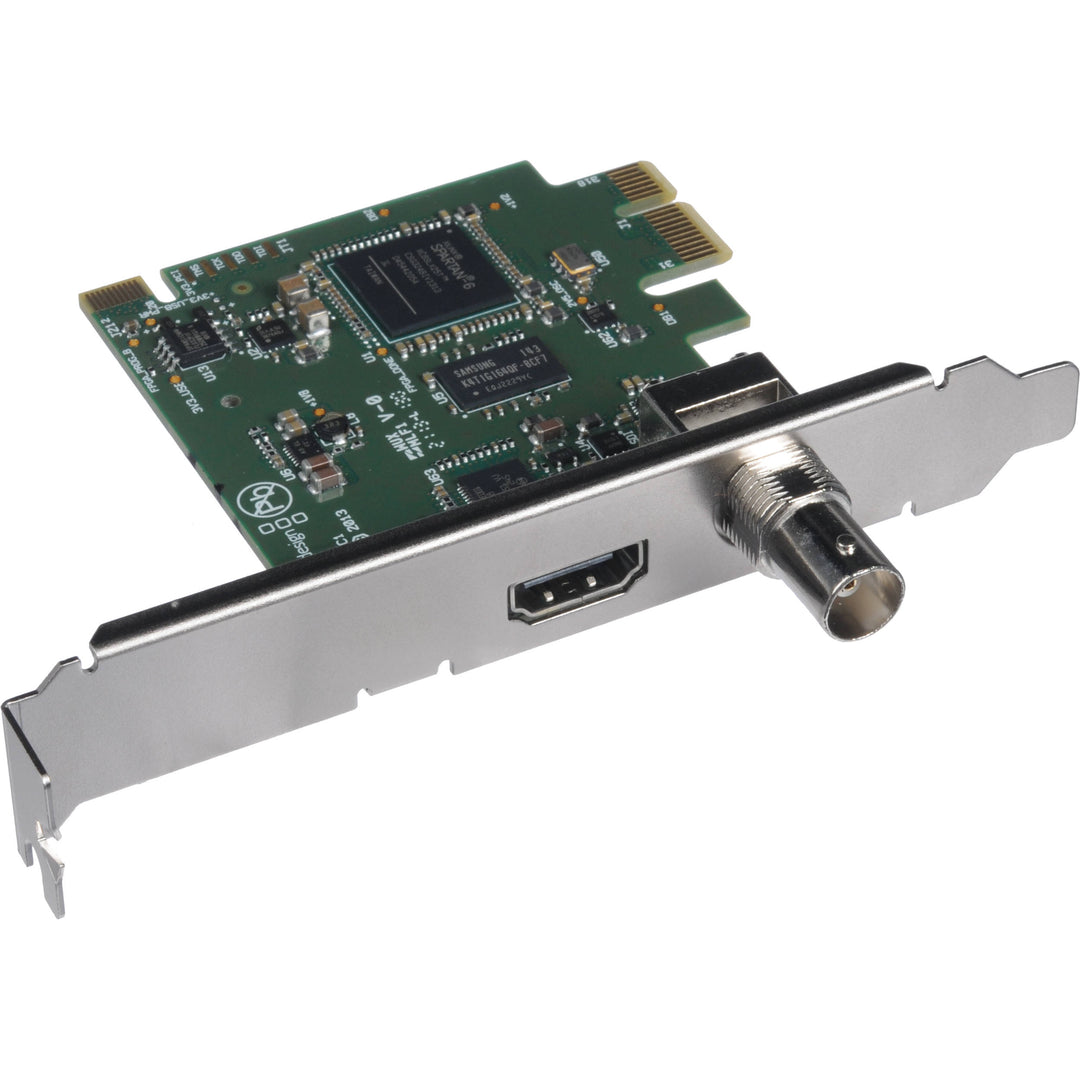

Overview of Blackmagic Design DeckLink Mini Recorder 1-Lane PCIe Slot Capture Card
The Blackmagic Design DeckLink Mini Recorder is a PCIe slot capture card with both SDI and HDMI inputs for capturing uncompressed 10-bit video from a camera directly into your computer. You'll be able to ingest footage as the camera's recording live or from a playback of the camera's recording. The inputs are active, so once you plug a cable into them, they'll begin functioning. This card automatically switches between SD and HD, so it'll be able to handle all common video formats. The point of ingesting through a capture card is to bypass unnecessary compressions and hence data loss. The card performs just one compression, upon delivery to your computer, where your footage gets encoded into an edit-ready codec of your choice.
Features:
- 1-Lane PCIe Slot Capture Card
- SDI and HDMI Inputs
- Inputs Uncompressed 10-Bit Video
- 4:2:2 Video Sampling
- 16 Ch Audio Embedded in HD SDI
- 8 Ch Audio Embedded in SD SDI
- 8 Ch Audio Embedded in SD and HD HDMI
- OS X, Windows and Linux Compatible
Specifications:
- SDI Video Input: 1 x 10-bit SD/HD switchable.
- SDI Audio Input: 8 channels embedded in SD and HD.
- HDMI Video Input: 1 x HDMI 1.4 type A connector.
- HDMI Audio Input: 8 Channels embedded in SD and HD.
- Computer Interface: PCI Express 1 lane, compatible with 4, 8 and 16 lane PCI Express slots.
- Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
- Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
- Software Applications: DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC, Media Express
- Other supported applications include: Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Zoom.
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60. 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M and 292M.
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- Color Precision: 8-bit & 10-bit.
- Video Sampling: YUV 4:2:2.
- Color Space: REC 601, REC 709.
- Multiple Rate Support: SDI and HDMI are switchable between standard definitlon and high definition.
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Colorspace Conversion: Hardware based real time.
- HD to SD Down Conversion: Software based down conversion during video capture.
- HD Up Conversion: Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10, both 64-bit. Linux
- Power Consumption: 5 Watts
- Operating Temperature: 5° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: DeckLink Mini Recorder, Low profile slot bracket
- Warranty: 3 Year Limited Manufacturer's Warranty.
