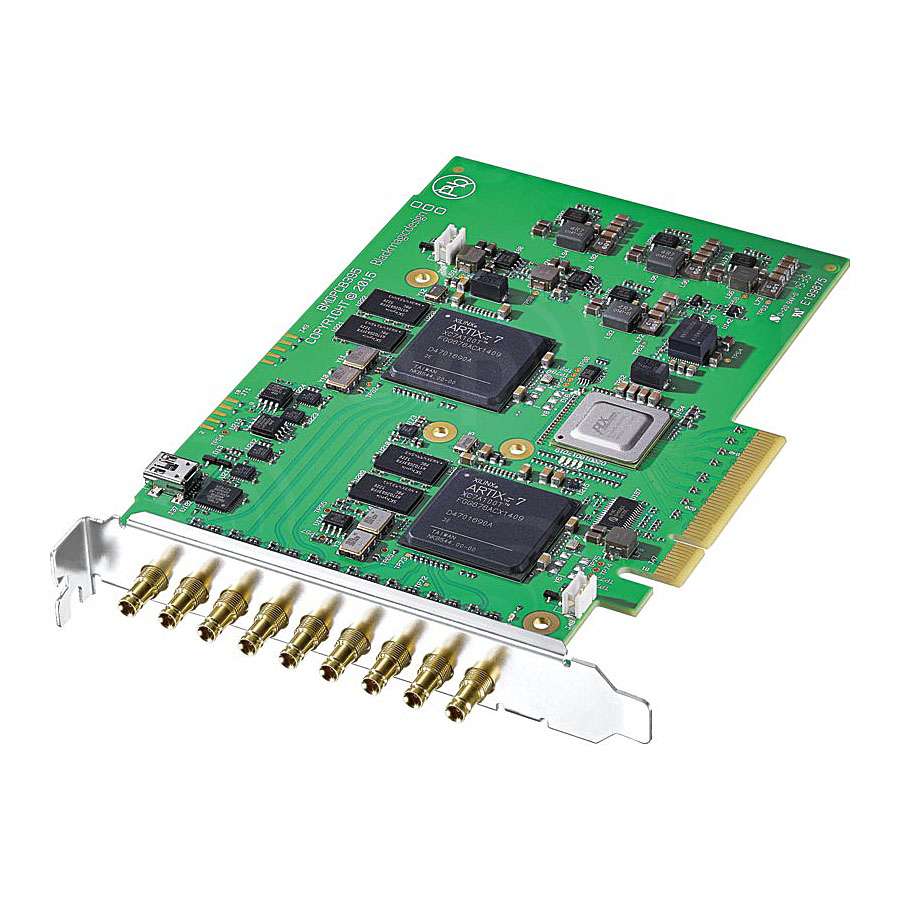

Blackmagic Design DeckLink Quad 2 8CH Capture and Playback Card

The Blackmagic Design DeckLink Quad 2 is an 8-lane PCIe card that features eight bidirectional 12-bit SD/HD/3G-SDI connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post-production. It is compatible with Mac, Windows, and Linux computers, and supported by a wide range of software applications. For use with applications that don't capture video on their own, Blackmagic's Media Express software is included, allowing you to capture, organize, and manage your media.

Features:

• 8 x Bidirectional SD/HD/3G-SDI
• 8-Lane PCIe Interface
• Resolutions up to 1080p60
• Inputs/Outputs Independently Switchable
• Supports Uncompressed RGB 4:4:4 Signals
• Supports 16 Channels of Embedded Audio
• Reference Input
• Up/Down/Cross Conversions
• Media Express Application Included
• macOS, Windows, and Linux Compatible

Specifications:

• SDI Video Inputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Input or Output.
• SDI Video Outputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Output or Input.
• SDI Audio Inputs: 16 channels embedded in SD and HD.
• SDI Audio Outputs: 16 channels embedded in SD and HD.
• Sync Input: Tri-Sync or Black Burst.
• Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
• Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
• Software Applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
• Other supported applications include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60. 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
• SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
• Color Space: REC 601, REC 709.
• Colorspace Conversion: Hardware based real time.
• HD Down Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
• HD Up Conversion: Built in, high quality software up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
• Cross Conversion: Built in, high quality hardware cross conversion from 720HD to 1080HD on playback, 1080HD to 720HD on playback.
• Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10, both 64-bit. Linux
• Power Consumption: 22 Watts
• Operating Temperature: 5° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: DeckLink Quad 2
• Warranty: 3 Year Limited Manufacturer's Warranty.
