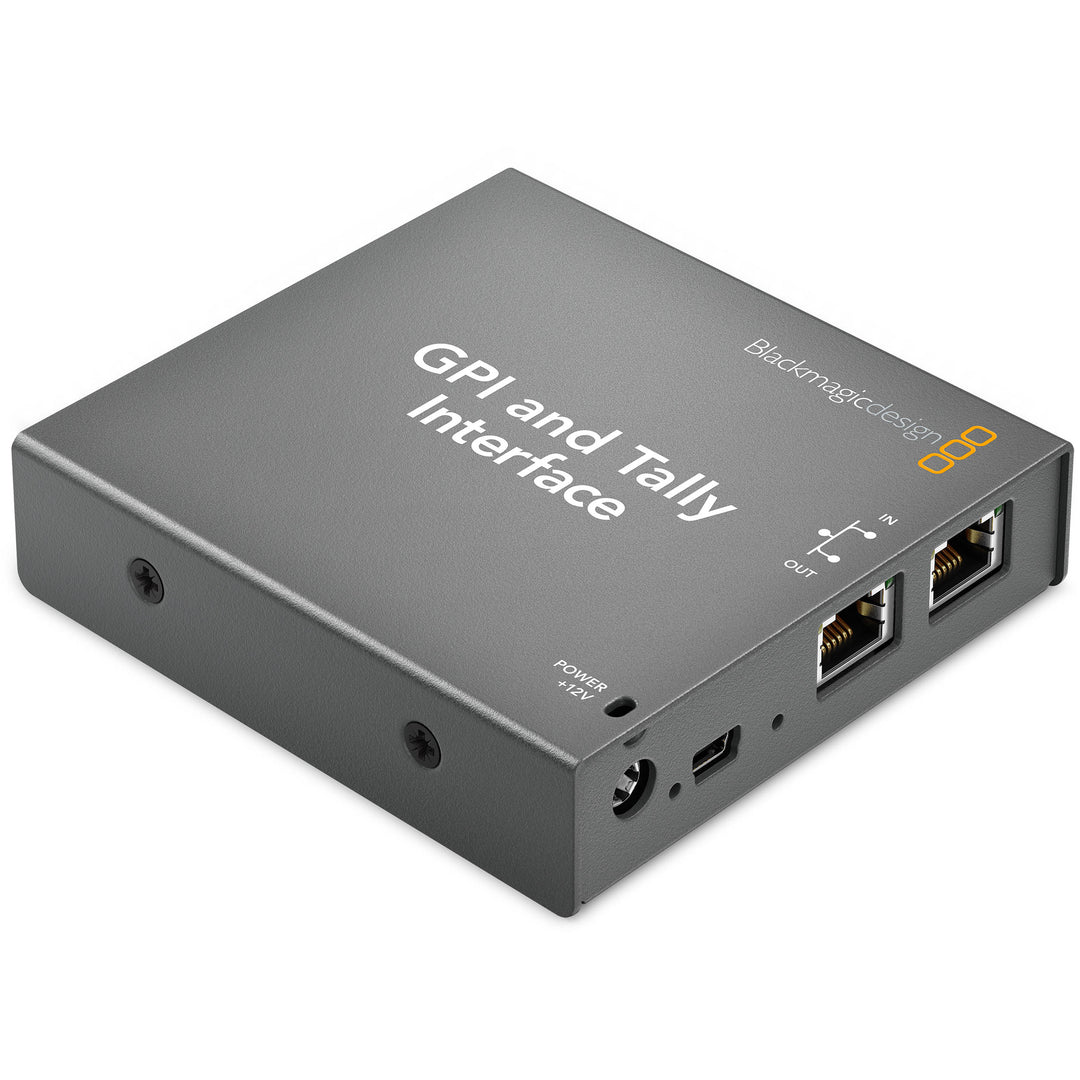

Blackmagic Design GPI and Tally Interface for ATEM Production Switchers

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

Features:

• Displays Tallies for Video Signals
• Indicates On-air Status
• For ATEM Switchers / Videohub Routers
• 8 Contact Closure Inputs & Outputs
• Connects with Multiple Interfaces

Specifications:

• Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
• Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates.
• Inputs: Optical isolators triggered by connection to ground. Max 5V at 14mA.
• Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
• Ethernet: 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
• Software Included: Configured via ATEM Switcher Utility.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system startup or via updater software.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Power Supply: 12V power supply included with international socket adaptors for all countries.
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20 - 60 degrees celsius
• Relative Humidity: Up to 95%
• What's Included: GPI and Tally Interface
• Software CD: Power Supply
• Warranty: 12 Months Limited Manufacturer's Warranty.
