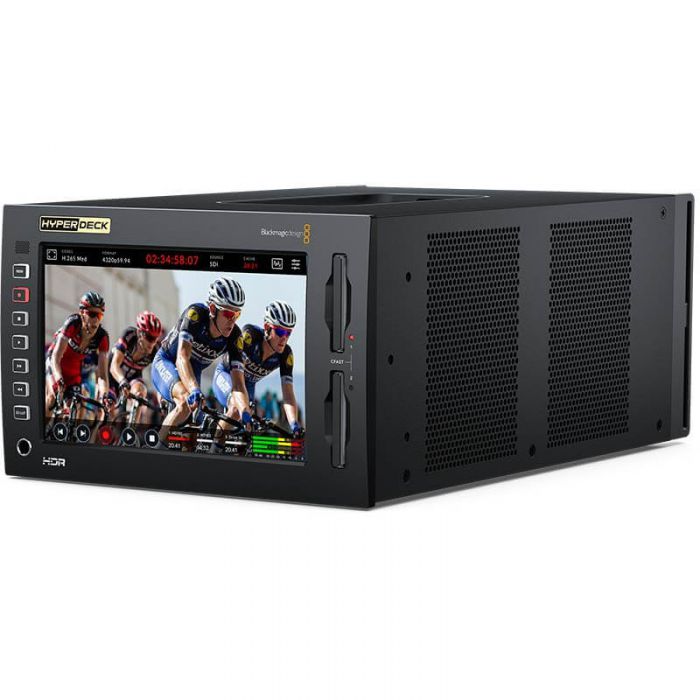

Blackmagic Design HyperDeck Extreme 8K HDR Large LCD w/Touchscreen Deck Control

The HyperDeck Extreme 8K HDR from Blackmagic Design is an 8K recorder featuring a large display with standard touchscreen deck controls for viewing recordings. It also has physical deck controls on its left side and two CFast card slots on the right. Ideally, it would be used together with the optional HyperDeck Extreme Control deck, which provides traditional deck control features with a built-in editor for automating the ingest of legacy videotape-based programming. Both have the same 3 RU, half-rack width size and can be installed beside each other in a rack and combined into a traditional broadcast deck for a comprehensive workflow. The HyperDeck Extreme 8K HDR features Quad 12G-SDI connectivity for 8K resolution, analog connections for archiving, and a USB Type-C External Disk port, which can be used to connect flash disks or entire disk systems such as the Blackmagic MultiDock 10G 4-slot SSD dock. There is also a slot for an optional M.2 PCIe NVMe cache card, which eliminates dropped frames if your media becomes full or runs too slow. The HyperDeck Extreme 8K HDR uses the space-saving H.265 codec but also supports ProRes 422 HQ, ProRes 422, ProRes 422 LT, and ProRes 4444. This means smaller file sizes plus compatibility with virtually all popular editing software. HDR standards are supported and the display screen has a wide color gamut to match. The display offers built-in monitoring scopes, and these can be changed to HDR scopes when working in HDR formats. The HyperDeck Extreme 8K HDR tags files with the correct HDR information, and then SDI and HDMI inputs automatically detect HDR video standards. Static metadata PQ and HLG formats are handled according to the ST2084 standard. The bright LCD can handle both Rec. 2020 and Rec. 709 color spaces. Thanks to the wide color gamut, it can even handle 100% of the DCI-P3 format. The HyperDeck Extreme 8K HDR features an internal 100-240 VAC power supply plus a 4-pin XLR 12V input for connecting an external power supply or battery, allowing for efficient studio or on-location use. Blackmagic HyperDeck Operating System and Blackmagic HyperDeck software are provided as free downloads with the HyperDeck Extreme 8K HDR. Two HyperDeck Extreme 8K HDR units, or one unit plus one HyperDeck Extreme Control, can be installed in a rack or console using the optional HyperDeck Extreme Rack Kit.

Features:

• Large LCD with Touchscreen Deck Controls
• Physical Controls, Two CFast Card Slots
• Quad 12G-SDI, HDMI, and Legacy Analog
• Fast USB Type-C Disk Port; 10G Ethernet
• PCIe Cache Card Slot
• H.265 Recording/Playback, ProRes Support
• Rec. 2020/709 Support, HDR Scopes
• SDI/HDMI Auto HDR Detection
• Multichannel SDI and Analog Audio
• Load and Save 3D LUTs

Specifications:

• SDI Video Inputs: 4
• SDI Video Outputs: 5  (12G-SDI A,B,C,D and 3G-SDI Monitor Out)
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
• Analog Video Outputs: None.
• Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
• Built in Speaker: Mono
• Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
• Timecode Connections: 1 x XLR in and 1 x XLR out.
• Reference Input: Tri-Sync or Black Burst.
• SDI Audio Inputs: 16 channels embedded audio.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
• Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
• Ethernet: 10Gb/s
• External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K DCI Video Standards: 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI, 1080PsF23.98 DCI, 080PsF24 DCI, 1080PsF25 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 160p59.94, 2160p60
• 4K DCI Video Standards: 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 320p59.94, 4320p60
• 8K DCI Video Standards: 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
• SDI Metadata Support: HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
• Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
• Multi Rate Support: Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
• Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K.
• Media Type: CFast card and external USB-C flash drives.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
• Supported Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime for all formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for all progressive formats up to 4320p60.
• Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
• Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
• Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
• External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
• Software Included: Blackmagic OS, Blackmagic HyperDeck Setup
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Displays: Built in LCD for video, audio and timecode monitoring and menu settings.
• Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
• Optional Accessories: HyperDeck Extreme Control, HyperDeck Extreme Rack Mount Kit
• Physical Installation: 3 rack units height, half rack width.
• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: HyperDeck Extreme 8K HDR, SD card with user manual.
• Warranty: 12 Month Limited Manufacturer's Warranty.
