Blackmagic Design Micro Converter HDMI to SDI -No Power Supply
CONVCMIC/HS03G
Regular price$99.00
Available to Order
Available from supplier Blackmagic Design — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Blackmagic Design
- Shipping Calculated at checkout, most in stock products ship same day

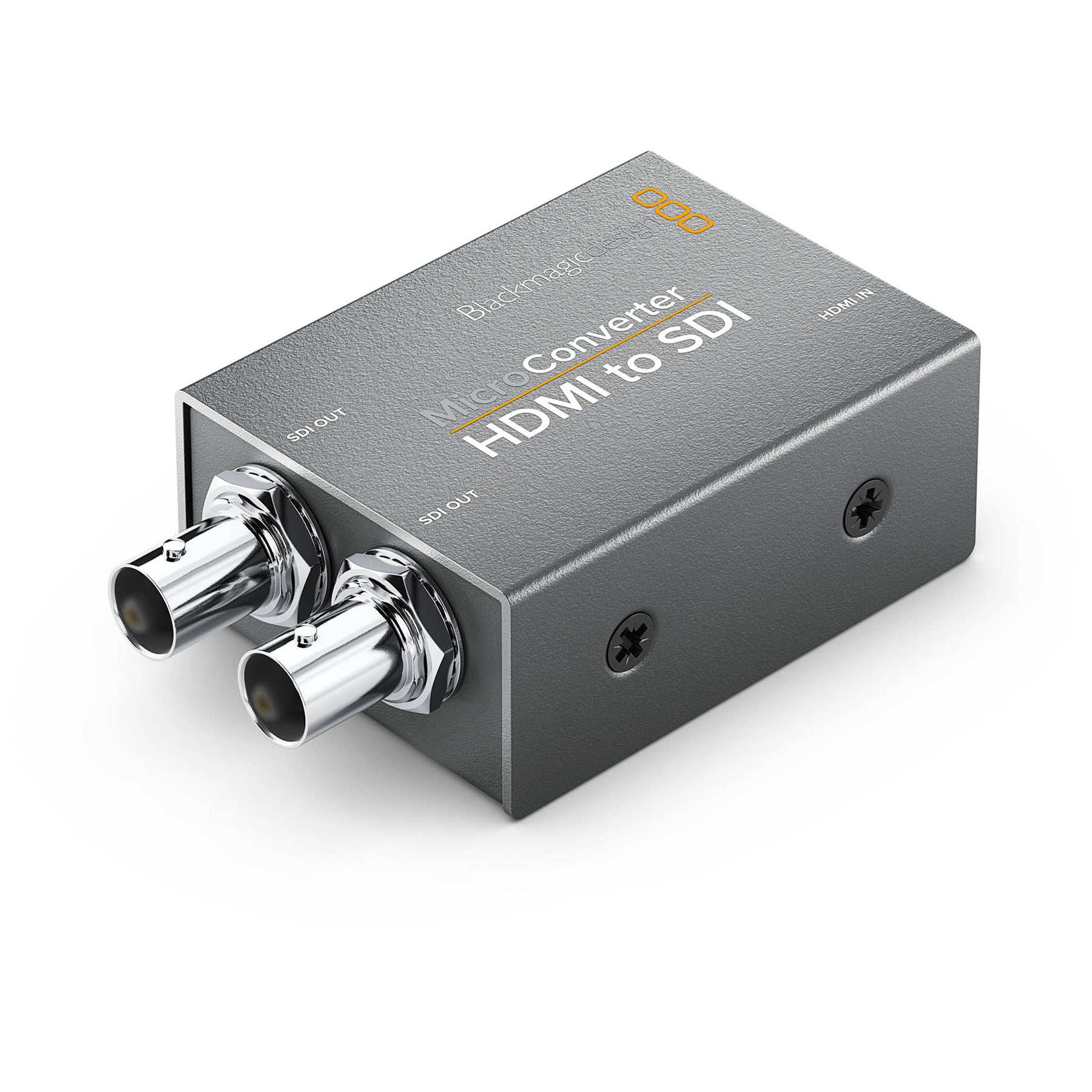

With the Blackmagic Design HDMI to SDI Micro Converteryou can convert a single high-definition HDMI signal into two 3G-SDI signals for ensuring workflow compatibility in professional video environments. Input signals are detected automatically, so the converter knows the resolution and format to output.
Features:
- HDMI Input
- 2 x SDI Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
- Software Control
- Power & Firmware Updates via USB 2.0
- Requires USB Power Supply
Specifications:
- SDI Video Outputs: Automatically matches the SD, HD or 3G-SDI HDMI video input.
- HDMI Video Inputs: HDMI Type A in.
- Multi Rate Support: Auto detection of SD or HD.
- Updates, Configurations and Power: Micro USB.
- Reclocking: Yes
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Software Control: Mac OSX™ and Windows™ software via micro USB.
- Internal Software Upgrade: Via micro USB.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
- Settings Control: Via software utility.
- Power Consumption: 2.0 Watts
- Operational Voltage Range: 4.4 to 5.25V DC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: Micro Converter HDMI to SDI
- Warranty: 3 Year Limited Manufacturer's Warranty.
