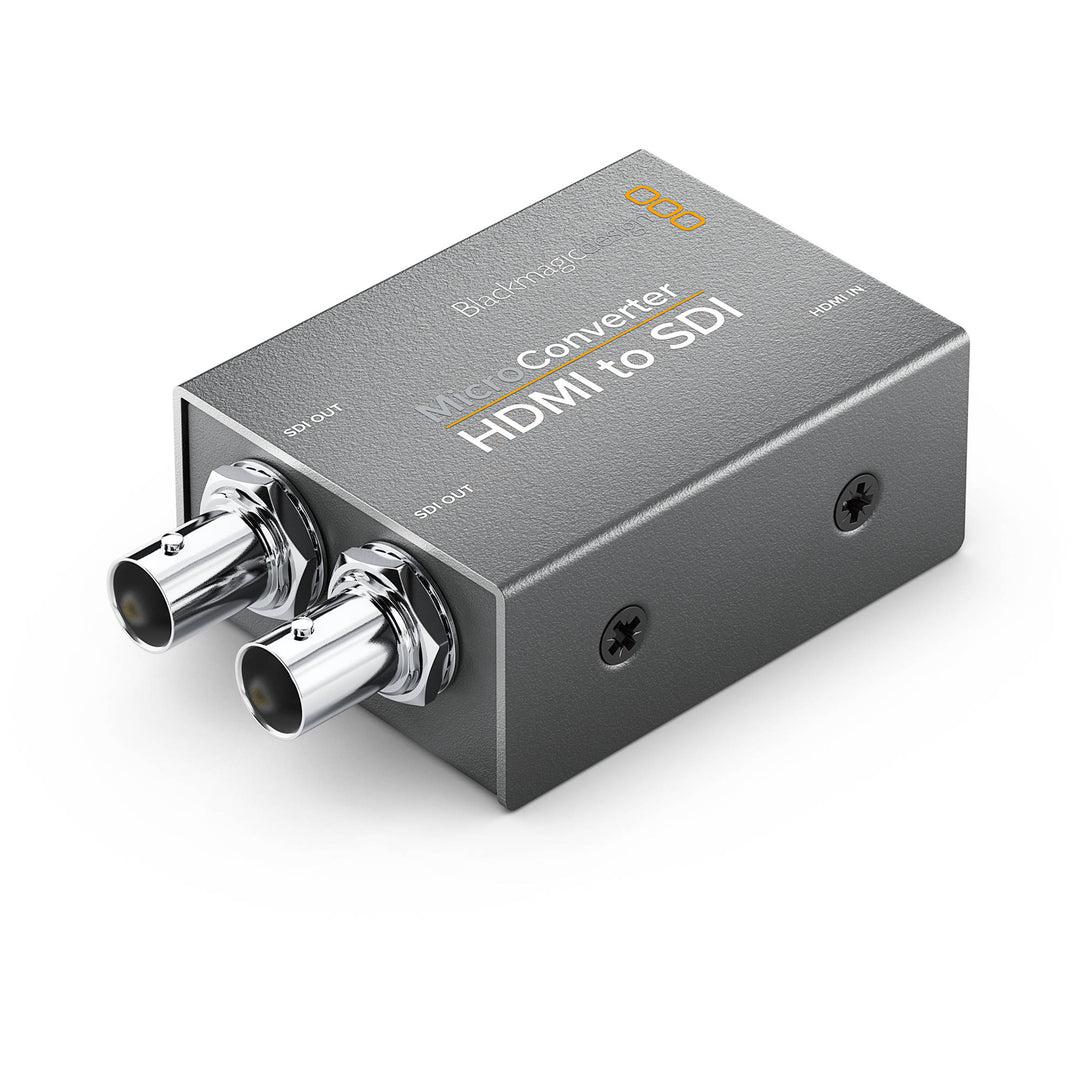

Overview of Blackmagic Design Micro Converter HDMI to SDI with Power Supply
With the Blackmagic Design HDMI to SDI Micro Converteryou can convert a single high-definition HDMI signal into two 3G-SDI signals for ensuring workflow compatibility in professional video environments. Input signals are detected automatically, so the converter knows the resolution and format to output.
Features:
- HDMI Input
- 2 x SDI Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
- Software Control
- Power & Firmware Updates via USB 2.0
- International Power Supply Included
Specifications:
- SDI Video Outputs: Automatically matches the SD, HD or 3G-SDI HDMI video input.
- HDMI Video Inputs: HDMI Type A in.
- Multi Rate Support: Auto detection of SD or HD.
- Updates, Configurations and Power: Micro USB.
- Reclocking: Yes
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Software Control: Mac OSX™ and Windows™ software via micro USB.
- Internal Software Upgrade: Via micro USB.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
- Settings Control: Via software utility.
- Power Consumption: 2.0 Watts
- Operational Voltage Range: 4.4 to 5.25V DC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: Micro Converter HDMI to SDI
- Warranty: 3 Year Limited Manufacturer's Warranty.
Music City Canada is an authorized reseller for Blackmagic Design products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
