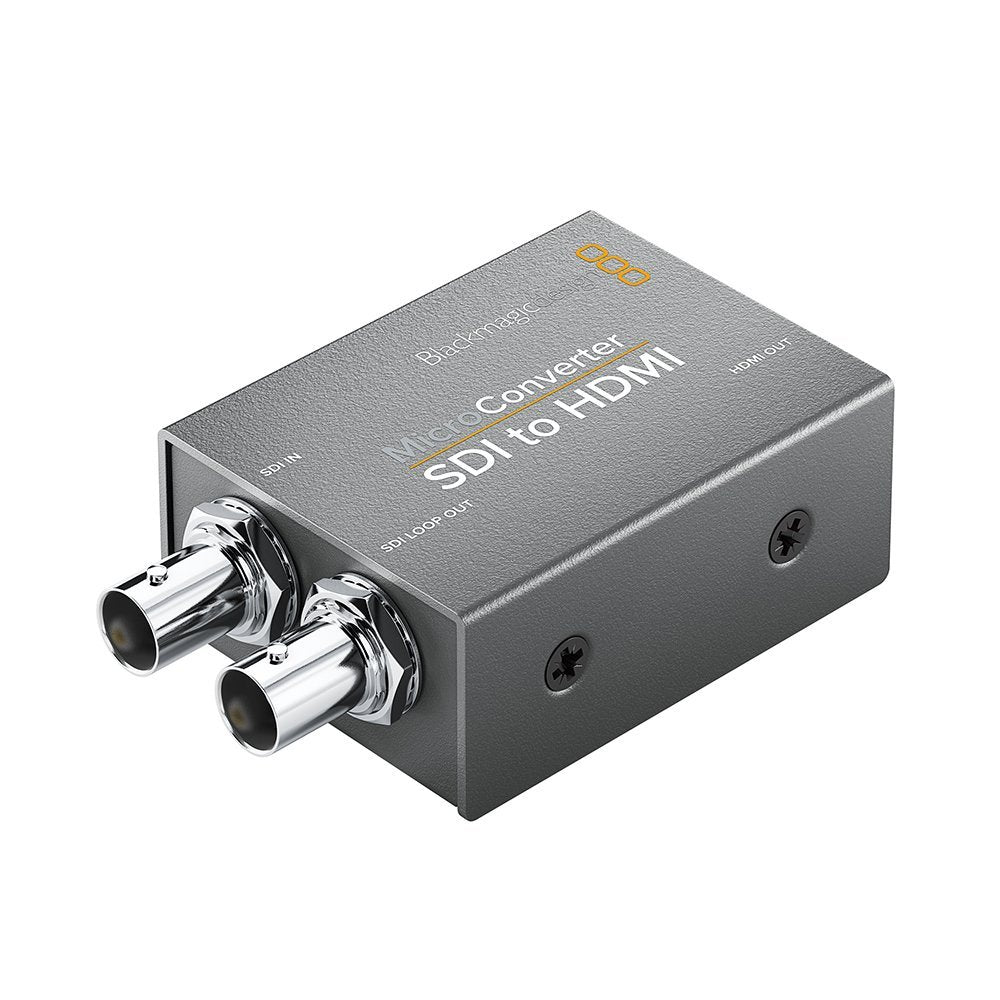

Blackmagic Design Micro Converter SDI to HDMI -No Power Supply
CONVCMIC/SH03G
Regular price$99.00
Available to Order
Available from supplier Blackmagic Design — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Blackmagic Design
- Shipping Calculated at checkout, most in stock products ship same day
Connect your professional video equipment to any HDMImonitor or consumer television with the Blackmagic Design SDI to HDMI Micro Converter. This miniscule Micro Converter accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal while retaining the original image quality and resolution.
Features:
- SD/HD/3G-SDI Input
- HDMI and SDI Loop Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
- Software Control
- Power & Firmware Updates via USB 2.0
Specifications:
- SDI Video Inputs: 1 x SD, HD or 3G-SDI.
- SDI Video Outputs: 1 x SDI loop out.
- HDMI Outputs: HDMI Type A out.
- Multi Rate Support: Auto detection of SD or HD.
- Updates, Configurations and Power: Micro USB.
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI.
- HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Software Control: Mac™ and Windows™ software upgrade via micro USB.
- Internal Software Upgrade: Via micro USB.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
- Settings Control: Via software utility.
- Power Consumption: 1.60 Watts
- Operational Voltage Range: 4.4V to 5.25V DC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: Micro Converter SDI to HDMI
- Warranty: 3 Year Limited Manufacturer's Warranty.
