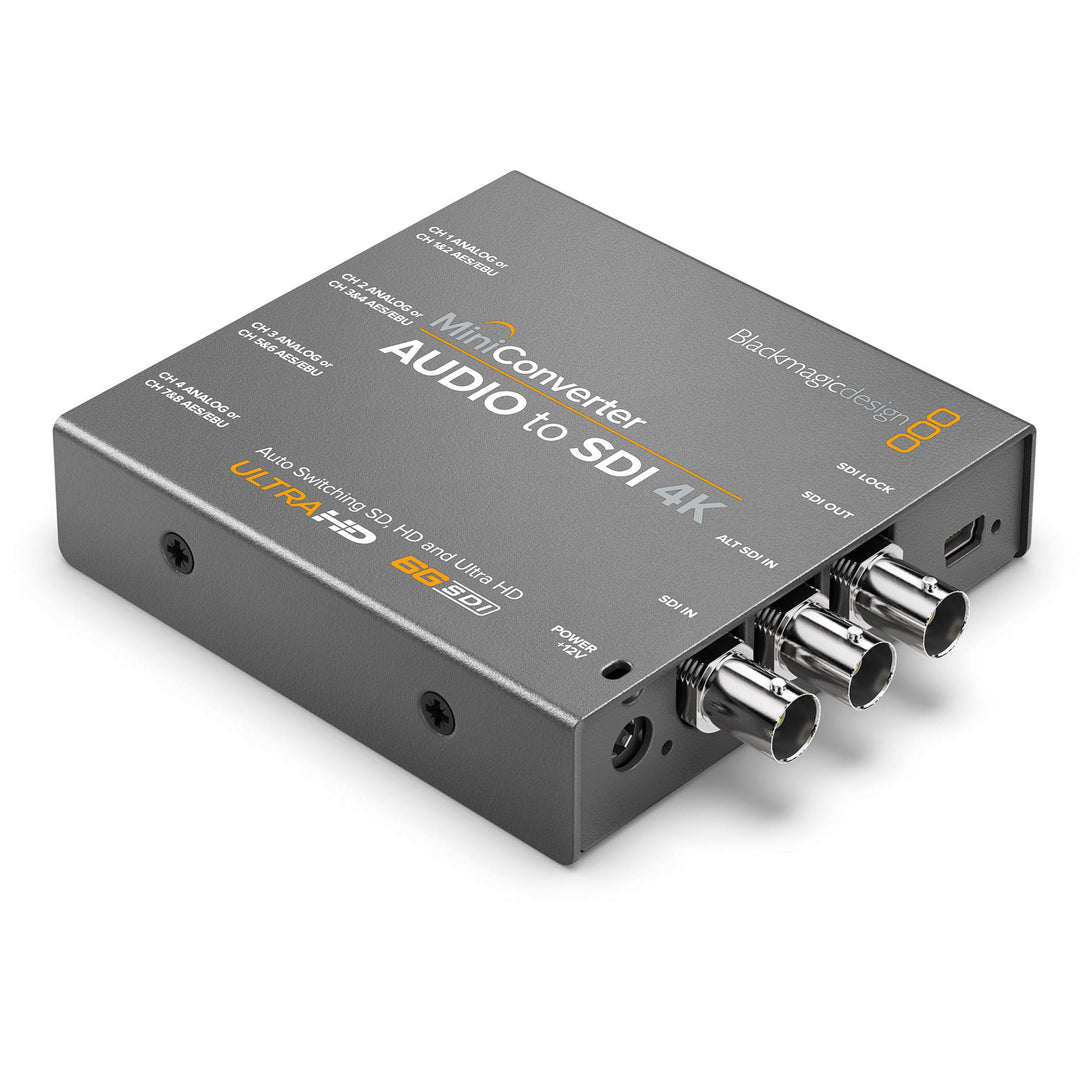

Blackmagic Design Mini Converter Audio to SDI 4K with 12V Power Supply

The Mini Converter Audio to SDI 4K from Blackmagic Design allows you to embed four channels of analog audio or eight channels of AES/EBU digital audio into any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for inputting and embedding your analog or digital audio channels. The SDI signal with embedded audio is output over a single 6G-SDI connector, with the resolution and frame rate matching the original input source. Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12 VDC power supply is included with international socket adapters.

Features:

• Embeds Audio into SDI Signal
• Single Link 6G-SDI Input
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
• Redundant SDI Input
• 4x 1/4" Audio Jacks
• 4 Analog or 8 AES/EBU Audio Channels
• 24-Bit, 48 kHz Audio
• Control via DIP Switches or Software
• 12V Universal Power Supply Included

Specifications:

• SDI Video Inputs: 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
• SDI Video Outputs: 1 x Embedded SDI Output.
• Analog Audio Inputs: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• Digital Audio Inputs: 8 channels of professional balanced digital with standard 1/4 inch jack connections.
• SDI Redundant Input: Automatically switches over if main SDI input is lost.
• Multi Rate Support: Auto detection SD, HD or 6G‑SDI.
• Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M Level A and B, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601.
• SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24‑bit.
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Space: YUV, RGB
• SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G‑SDI.
• Software Control: Mac™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Settings Control: Mini Switches or USB software.
• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 8.40 Watts
• Operational Voltage Range: 12 ‑ 31V DC
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: Mini Converter Audio to SDI 4K, 12V universal power supply with international socket adapters
• Warranty: 3 Year Limited Manufacturer's Warranty.
