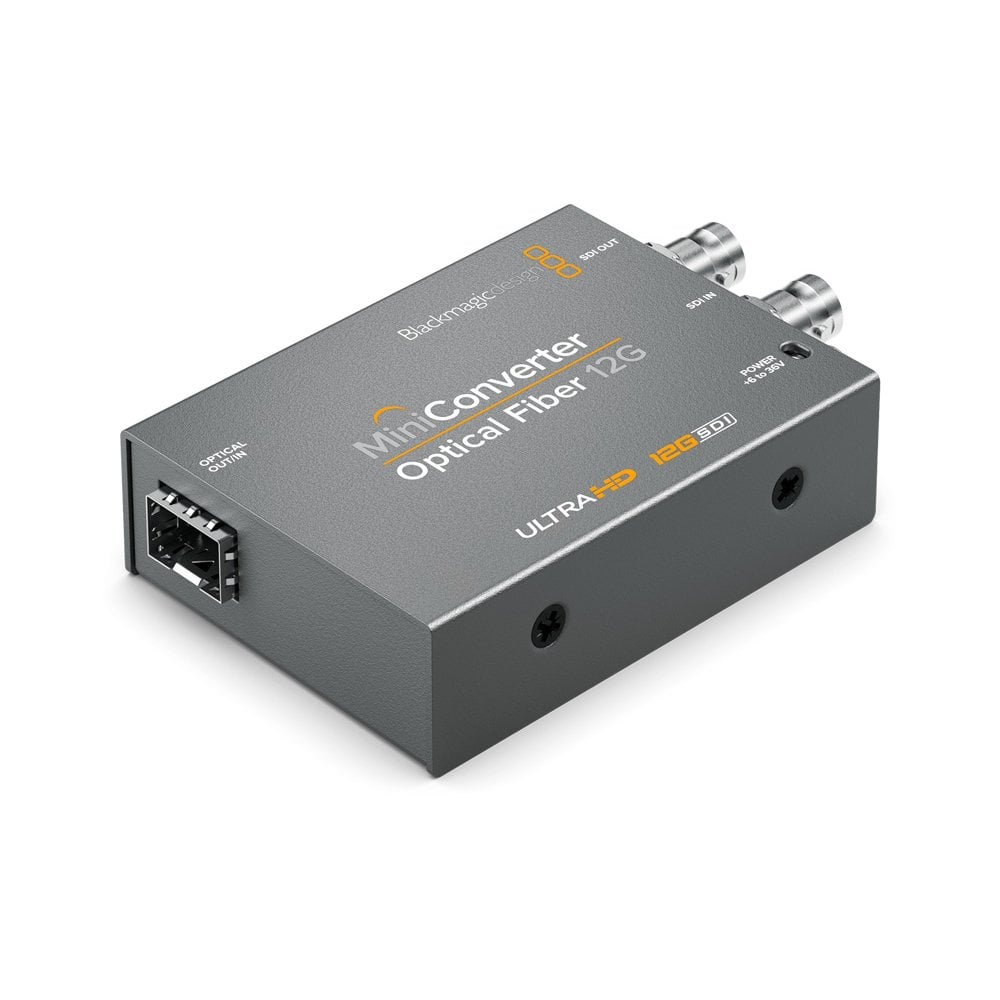

Blackmagic Design Mini Converter 12G/6G/3G-SDI to Optical Fiber

The Blackmagic Design Mini Converter Optical Fiber 12G-SDI offers bidirectional, multi-rate SDI to optical fiber conversion capabilities, with complete independence in each direction, and support for up to DCI 4K signals. The converter has one LC-type optical fiber input/output, one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment. Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection for added security.

Features:

• Converts 12G/6G/3G-SDI to Optical Fiber
• Supports Signals up to DCI 4K25
• Multi-Rate, Bidirectional Capability
• Requires Separate SFP Optical Module
• Automatic Input Signal Detection
• 16-Channel Embedded Audio Support
• Diagrammed Function Switches
• Update via Converter Utility Software
• Locking, Universal Power Supply
• Compact Metal Housing

Specifications:

• SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
• SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video inputon the Optical Fiber.
• Optical Fiber Connection (optional): 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
• Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G-SDI switchable.
• Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
• Optical Fiber Audio Inputs: 16 channel embedded.
• Optical Fiber Audio Outputs: 16 channel embedded.
• Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
• SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
• ASI Support: Yes
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Settings Control: No user controls.
• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 2 Watts
• Operational Voltage Range: 6 - 36V DC
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: Mini Converter Optical Fiber 12G, +12V universal power supply with international socket adapters
• Warranty: 3 Year Limited Manufacturer's Warranty.
