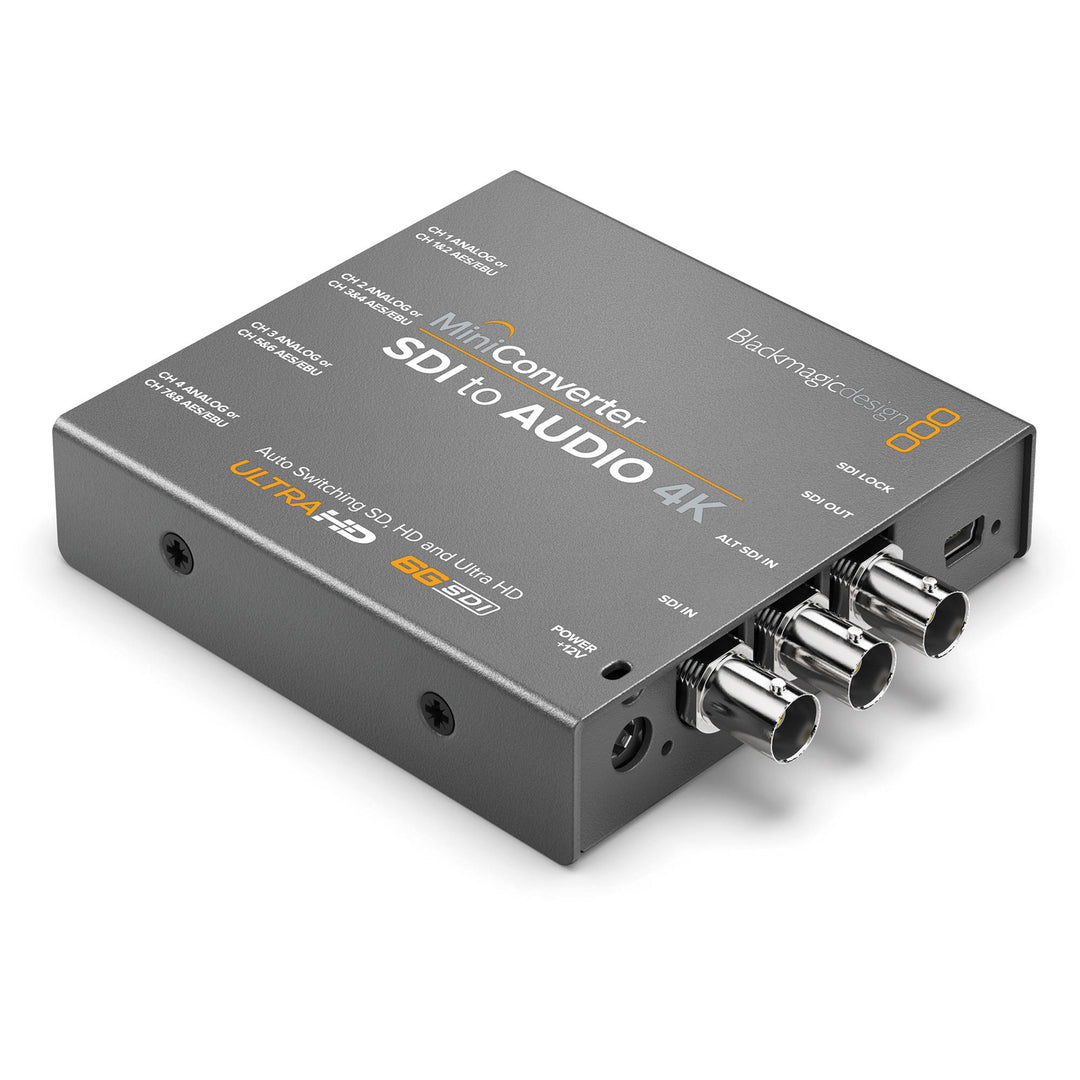

Blackmagic Design Mini Converter SDI to Audio 4K with 12V Power Supply

The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source. Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.

Features:

• De-Embeds Audio from SDI Signal
• Single Link 6G-SDI Input
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
• Redundant SDI Input
• 4x 1/4" Audio Output Jacks
• 4 Analog or 8 AES/EBU Audio Channels
• 24-Bit, 48 kHz Audio
• Control via DIP Switches or Software
• 12V Universal Power Supply Included

Specifications:

• SDI Video Inputs: 1 x SD, HD or 6G‑SDI. 1 x  ALT SDI Input for automatic switch over if main input fails.
• SDI Video Outputs: 1 x SDI Video Loop Output.
• SDI Redundant Inputs: Automatically switches over if main SDI input is lost.
• Analog Audio Outputs: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• Digital Audio Outputs: 8 channels of professional balanced digital with standard 1/4 inch jack connections.
• Multi Rate Support: Auto detection SD, HD or 6G‑SDI.
• Updates and Configuration: USB
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
• SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Space: YUV, RGB
• SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G‑SDI.
• Software Control: Mac™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Settings Control: Mini Switches or USB software.
• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 5.52 Watts
• Operational Voltage Range: 12V ‑ 31V DC
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: Mini Converter SDI to Audio 4K, 12V universal power supply with international socket adapters
• Warranty: 3 Year Limited Manufacturer's Warranty.
