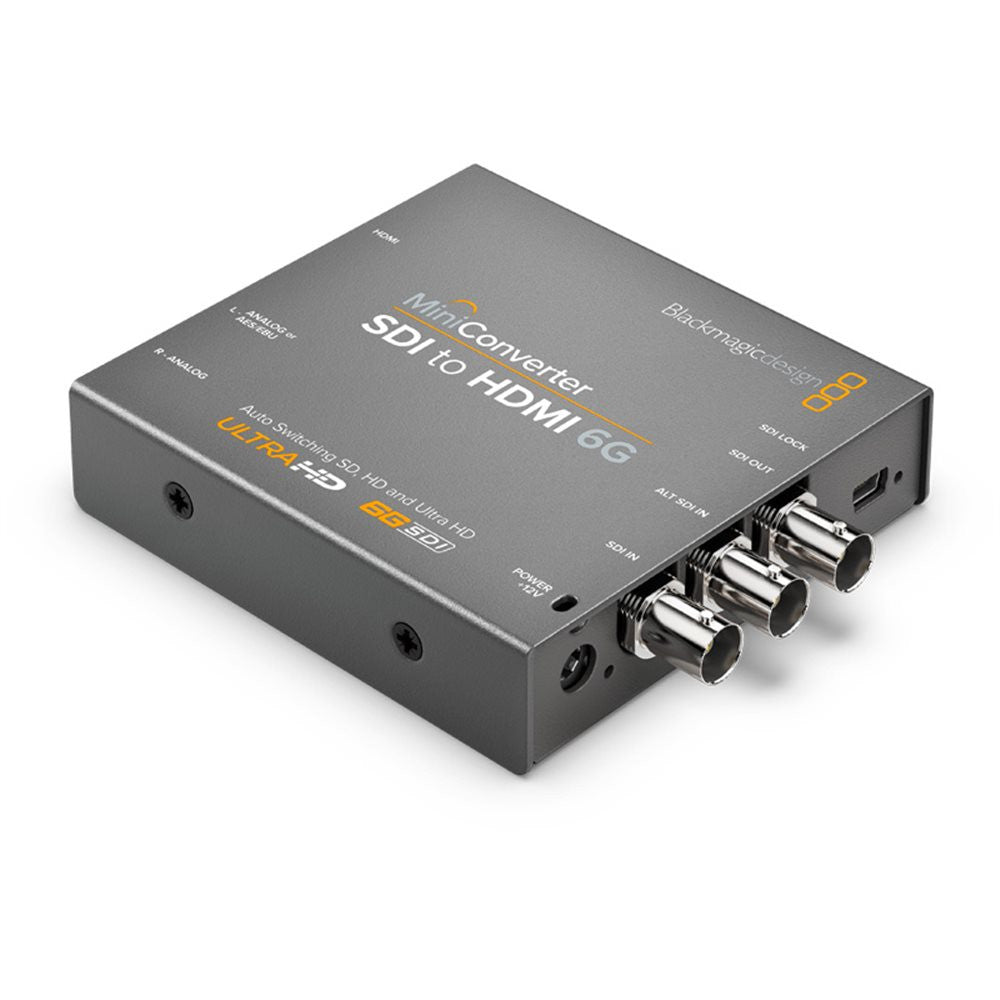

Blackmagic Design Mini Converter SDI to HDMI 6G with 12V Power Supply
CONVMBSH4K6G
Payment plans from Affirm, learn more
- Blackmagic Design
- Shipping Calculated at checkout, most in stock products ship same day
The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications. Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output. The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated. The device is powered by an included 12V power supply and includes international socket adapters.
Features:
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
Specifications:
- SDI Video Outputs: 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G‑SDI HDMI video input.
- HDMI Video Inputs: HDMI type A in
- Analog Audio Inputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
- Digital Audio Inputs: 4 channels of AES/EBU digital audio.
- Multi Rate Support: Auto detection of SD, HD or 6G‑SDI.
- Updates and Configuration: USB
- Reclocking: Yes
- SD Video Standards: 625i25 PAL, 525i29.97 NTSC
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601.
- SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
- SDI Video Sampling: 4:2:2
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD or 6G‑SDI.
- HDMI Video Standards: 625i25 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- HDMI Color Space: YUV and RGB
- HDMI Color Precision: 4:2:2 and 4:4:4
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Format Conversion: HD down conversion
- Software Control: Mac OS and Windows software upgrade via USB.
- Internal Software Upgrade: Via included updater application.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
- Settings Control: Mini Switches or USB software.
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
- Power Consumption: 4.44 Watts
- Operational Voltage Range: 12 ‑ 18V DC
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (‑4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
- What's Included: Mini Converter HDMI to SDI 6G, 12V universal power supply with international socket adapters
- Warranty: 3 Year Limited Manufacturer's Warranty.
