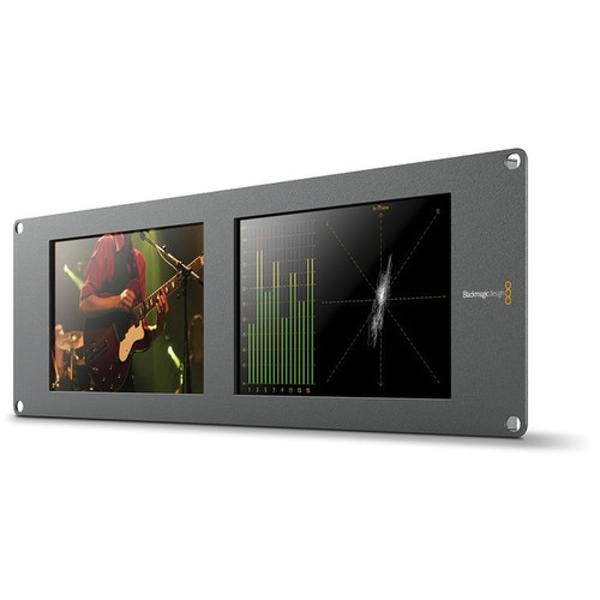

Blackmagic Design SmartScope Duo 4K 2 Dual 8in 3RU 6G-SDI Monitors w/Scopes

The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors is a monitoring solution for studio and location productions, displaying video with resolutions up to 3840 x 2160 at 30p. It features two 8" monitors each with a loop-through SDI input and output. The inputs are auto-sensing/selecting so you don't have to worry about matching the input format; the monitor will display any supported format that you feed it. You can choose to select to display either the input video or one of six scope displays, while the input video passes through the monitor to downstreamed devices.

You use the USB connector to initialize the monitor on your network; after that you can control the monitors using the supplied software via the Ethernet connector. This allows you to adjust the monitors' brightness and color as well as select the monitors display mode - video or scope view. The SmartScope Duo 4K also incorporates a Tally display around the border of the image, which works with industry standard Tally systems. The unit takes up three rack height units, but is less than two inches deep (including the connector depth), which makes it well suited for use in production trucks where space is at a premium. The unit also automatically flips the image if you need to install the unit upside down.

Features:

• Supports SD/HD/3G/6G-SDI
• Auto Format Sensing & Selection
• 1 x Loop-Through SDI I/O per Monitor
• Select Video, Waveform, Vectorscope
• RGB Parade, YUV Parade, Histogram
• Audio Phase & Levels
• Software Control via Ethernet
• Industry Compatible Tally System
• 3 Rack Unit Size for Mounting
• Auto Orientation Sensing & Image Flip

Specifications:

• SDI Video Input: Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
• SDI Video Output: 1 x 10 bit loop through SD, HD and 6G-SDI switchable.
• SDI Audio Input: 16 channels embedded in SD, HD and UHD.
• SDI Audio Output: 16 channels embedded in SD, HD and UHD.
• Multi Rate Support: Standard definition SDI, high definition SDI and 6G-SDI.
• Tally: 9-pin D connector:
• SD Format Support: 525i29.97 NTSC, 625i25 PAL
• HD Format Support: 720p50, 59.94, 60, 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 1080PsF23.98, 24, 25, 29.97, 30, 1080i50, 59.94, 60
• 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Format Support: 2160p23.98, 24, 25, 29.97, 30
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
• Audio Sampling: Television sample rate of 48KHz
• Video Sampling: 4:2:2 and 4:4:4
• Color Precision: 8-bit
• Color Space: YUV and RGB
• Computer Interface: USB 2.0 for software updates and Ethernet for configuration
• Colorspace Conversion: Hardware based real time.
• Scopes: Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.
• Software Included: Configuration utility for MAC and Windows.
• Internal Software Upgrade: Via included firmware updater software.
• Physical Installation: 3RU
• Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later. Windows 8.1 and 10.
• Power Supply: 12V universal power supply included with international socket adapters for all countries.
• Power Consumption: < 20 Watts
• Operational Voltage Range: 12V - 15V
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: SmartScope Duo 4K, Power Supply, SD card with software and manual
• Warranty: 12 Months Limited Manufacturer's Warranty.
