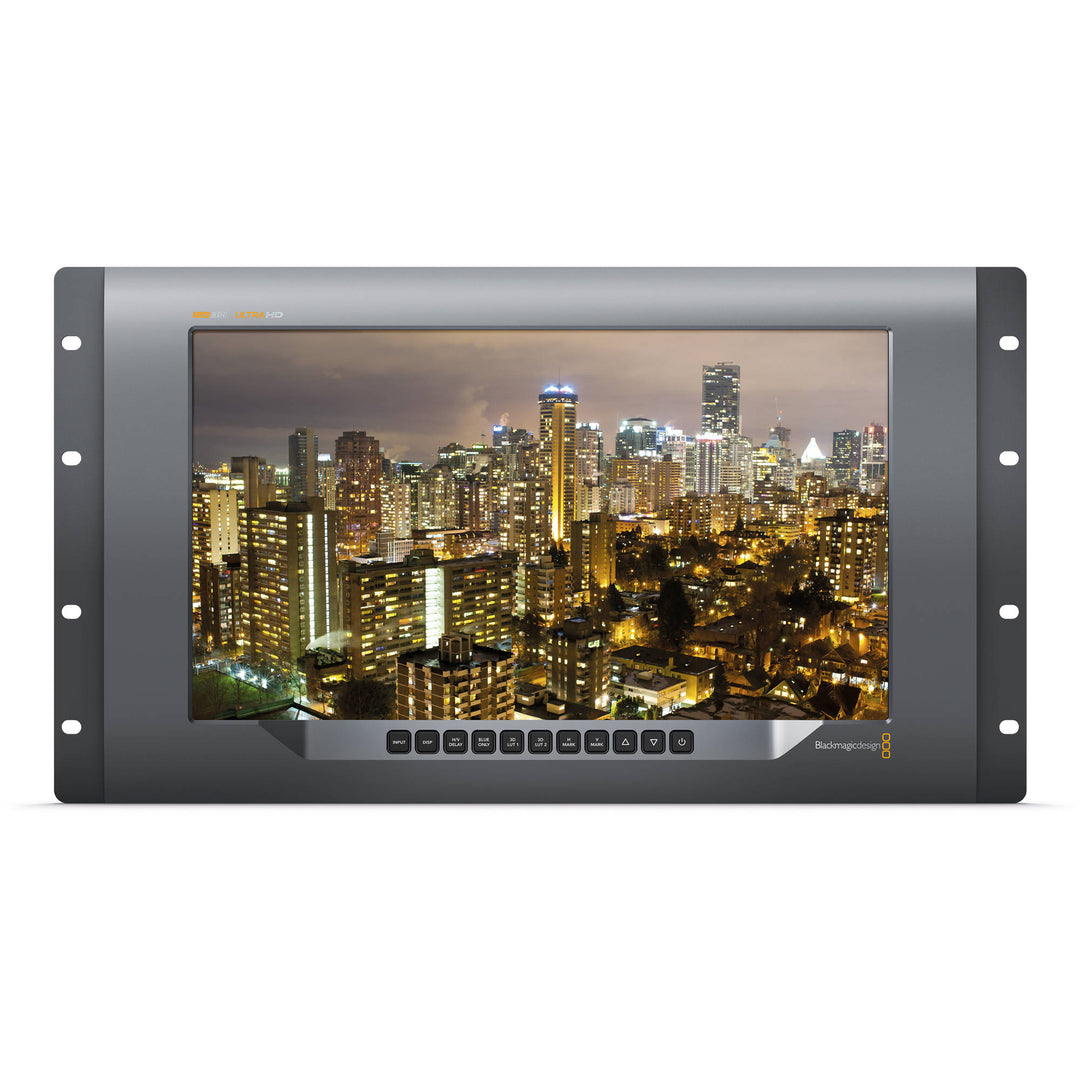

Blackmagic Design SmartView 4K 2 TFT LCD 15.6in 6RU Monitor w/2x12G-SDI Inputs

SmartView 4K is the world’s first full resolution rack mount Ultra HD broadcast monitor with 12G-SDI for native display of up to 2160p60. You get a professional broadcast monitor that supports the latest Ultra HD resolutions, plus automatically switches to SD and HD-SDI formats using high quality Teranex processing for a clean and professional display. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, H/V delay, blue only, zoom, focus peaking, customizable frame markers and more, either from the front panel or via external Ethernet! SmartView 4K supports VESA mounting so you can install on articulated monitor arms or rack mounting.

Specifications:

• SDI Video Input: 2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output.
• Optical Video Input: SFP Optical Fiber connector cage.
• SDI Video Output: Automatically switches to input selection.
• Multi Rate Support: Auto detection of 4K, 2K, HD or standard definition inputs.
• Updates and Configuration: USB
• Ethernet: Gigabit ethernet with loop through.
• Tally: 9-pin D connector
• SD Format Support: 525i59.94 NTSC, 625i25 PAL
• HD Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Format Support: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
• Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Format Support: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
• SDI Color Space: REC 601, REC 709
• SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
• Video Sampling: 4:2:2 and 4:4:4
• Internal Software Upgrade: Via included firmware updater software.
• Settings Control: Via USB or Ethernet.
• Operating Systems: Mac 10.13 High Sierra, Mac 10.14 Mojave or later. Windows 8.1 and 10.
• Display Element: 15.6" TFT Active Matrix LCD
• Display Resolution: 3840 x 2160 pixels
• Response: 25 ms
• Contrast Ratio: 1000:1
• Color Depth: 16.7 million colors
• Power Supply: Built in IEC 90 - 240V AC power supply, plus DC input jack for external power.
• Power Consumption: 24 Watts
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: SmartView 4K, SD card with software and manual
• Warranty: 12 Months Limited Manufacturer's Warranty.
