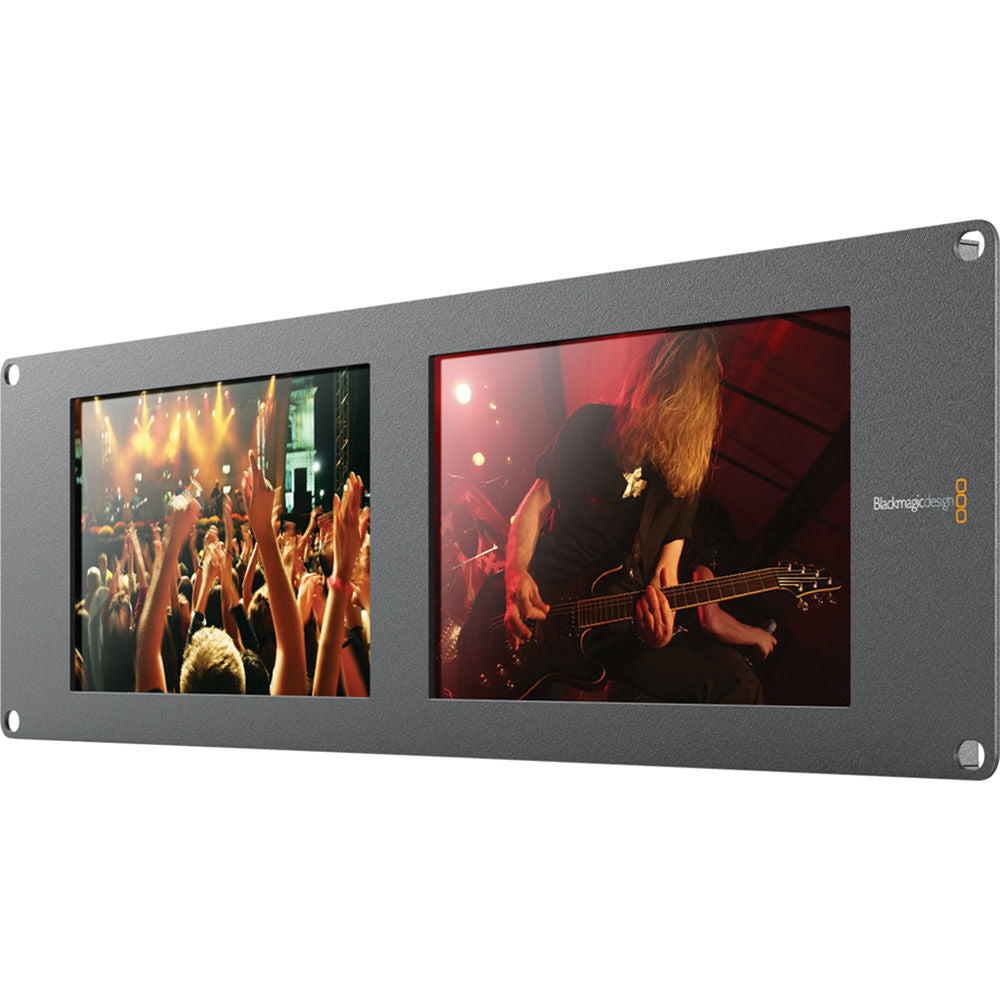

Blackmagic Design SmartView Duo 2 Dual 8in LCD 3RU Side by Side Monitors

Blackmagic Design's SmartView Duo comprises a pair of side-by-side 8" LCD monitors – both with an auto-selecting 3G/HD/SD-SDI input – that are housed in a 3 RU-high, rackmountable form factor. Ideal for live broadcast and mobile video production, the slim SmartView Duo features integrated tally (input via a standard 9-pin D connector) that clearly shows video status by displaying a red, green, or blue ring that borders the screen in question.

The 800 x 480-resolution displays' auto-switching SDI inputs accept an extremely wide range of digital signals, from standard-def 525i and 625i to full progressive high-definition 1080p60 and several flavors of 2K-resolution video. There's a loop-out BNC for both inputs, with re-clocking of the signal. For screen configuration and settings, plus firmware updates, the SmartView Duo has both USB 2.0 and Ethernet inputs.

For the SmartView Duo, a sleek design pays practical dividends. The thinness of the dual-display panel (less than 1") means it's easier to install, transport, and ship. The lack of mechanical controls on the panel itself takes inadvertent adjustments out of the equation. The auto-image-flip feature means that the displays can be rotated upside down so you can achieve the best viewing angle.

Features:

• 3G/HD/SD-SDI Inputs, Both with Loop-Out
• Integrated Tally for Live Broadcast
• Ethernet Input for Adjustments
• Upgradeable Firmware via USB
• 2K, 1080i/p, 720p & 50/60 Hz SD Support
• 10-Bit Color & 4:2:2 / 4:4:4 Sampling
• 800 x 480 Resolution

Specifications:

• SDI Video Input: Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
• Multi Rate Support: Auto detection of 2K, HD or standard definition inputs.
• Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
• Ethernet: 10/100 BaseT with loop through.
• Tally: 9-pin D connector
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
• SDI Color Space: REC 601, REC 709
• SDI Auto Switching: Automatically selects between SD, HD and 3 Gb/s SDI.
• Video Sampling: 4:2:2 and 4:4:4
• SDI Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Internal Software Upgrade: Via included firmware updater software.
• SmartView Utility Software: Via USB or Ethernet.
• Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later. Windows 8.1 and 10.
• Display Element: TFT Active Matrix LCD.
• Display Resolution: 800 x 480 pixels
• Response: < 15 ms
• Contrast Ratio: Typically 500:1
• Color Depth: 16.7 Million Colors.
• Display Orientation: Displays can rotate upside down for optimum viewing angle.
• Power Supply: 12V universal power supply included with international socket adapters for all countries.
• Power Consumption: < 20 Watts
• Operational Voltage Range: 12V - 15V
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: SmartView Duo, Power Supply, SD card with software and manual
• Warranty: 12 Months Limited Manufacturer's Warranty.
