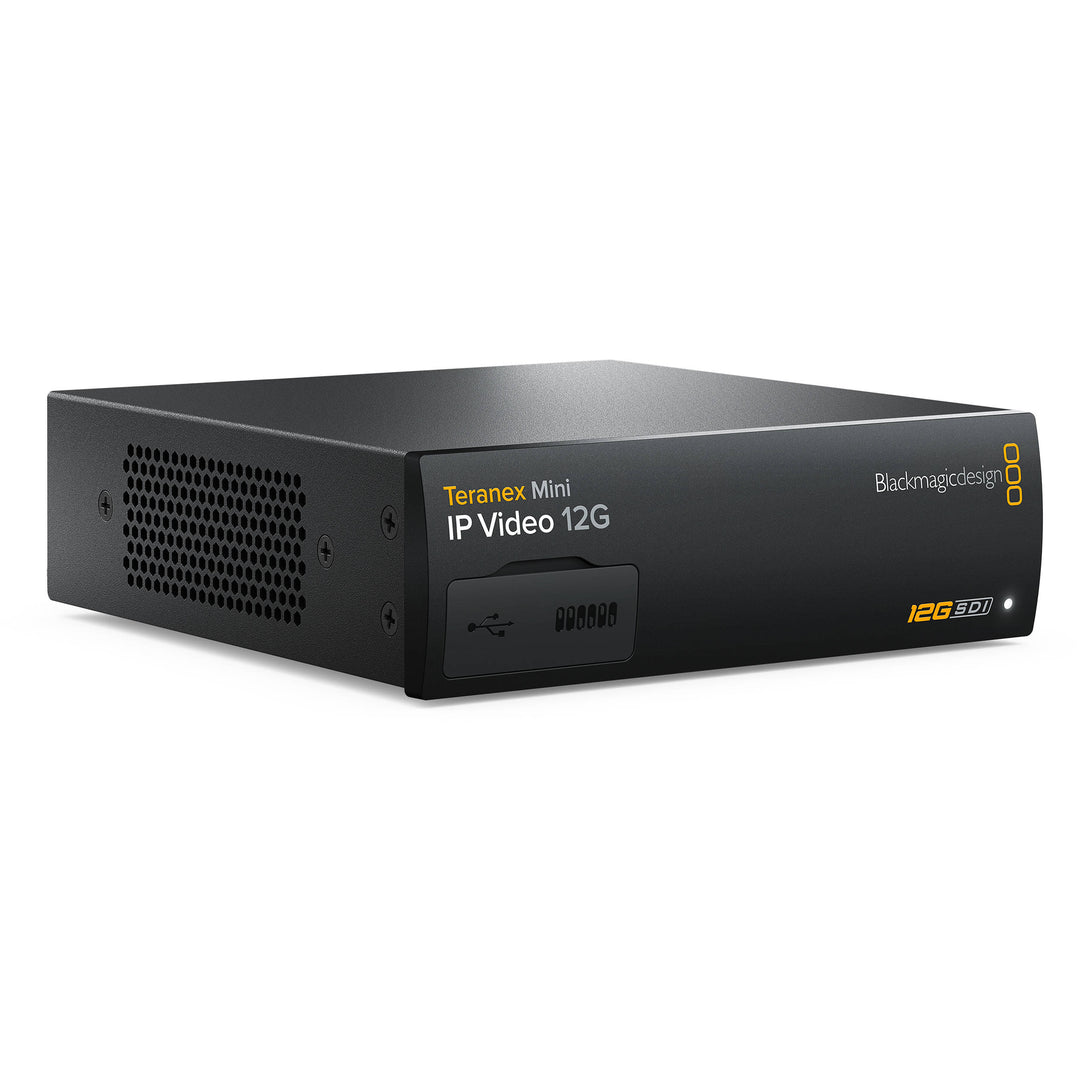

Blackmagic Design Teranex Mini 12G-SDI to IP Video Converter

Supporting up to 12G-SDI data rates, the Teranex Mini IP Video 12G from Blackmagic Design is a 12G-SDI/Ethernet encoder/decoder that supports TICO encoding for high-quaity video over Ethernet transmission. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. One unit is required at each end—multiple units can be used on the same network—controlled by a Mac or Windows computer using the included Blackmagic Video Hub software. The unit supports up to 1080p60 over a Gigabit Ethernet LAN with higher data rates supported by using an optional 10G optical Ethernet connector. The Mini IP Video 12G has a single 12G-SDI input and two 12G-SDI outputs in addition to the Gigabit Ethernet connector and a slot for an optional 10G SFP. An optional Smart Front Panel with a built-in LCD display provides local setup and control and replaces the standard panel with DIP switch setup that comes with the unit. Up to three units can be easily installed in an optional 1 RU 19" rack tray, and it features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

Features:

• Advanced High-Data Rate Signal Converter
• TICO Encoder / Decoder
• Supports up to 4K DCI 4096x2160p Signals
• Two Independent 12G-SDI 10-Bit Outputs
• Gigabit Ethernet for up to 1080p60
• Optional 10G Optical Ethernet Support
• Supports Optional LCD Smart Front Panel
• Intelligent Thermal Heat Dissipation
• Manage Numerous Units from a Mac or PC

Specifications:

• SDI Video Inputs: 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI
• SDI Video Outputs: 2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI
• Ethernet: Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding.
• Multi Rate Support: Auto detection of HD-SDI, 6G-SDI or 12G‑SDI.
• Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet.
• Configuration:  Ethernet or USB 2.0 for firmware updates and IP address setting.
• Reclocking: On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video.
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 25p, 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
• SDI Video Rates: SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI.
• SDI Video Sampling: 4:2:2 plus 4:4:4 up to 4K DCI 30p
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
• SDI Color Precision: 10-bit 4:2:2 and 4:4:4
• SDI Color Space: YUV or RGB for inputs, YUV for SDI outputs.
• SDI Auto Switching: Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
• Display: Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
• Software Control: Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Control: Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
• Power Supply: IEC power cable required. 90 - 240V AC input.
• Power Fail Protection: Settings preserved and restored instantly at power on.
• Power over Ethernet: Can be powered via 48V DC using PoE+ (power over Ethernet).
• Power Consumption: 16 Watts
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: Teranex Mini IP Video 12G, SD card with software and manual.
• Warranty: 3 year Limited Manufacturer's Warranty.
