Blackmagic Design Teranex Mini Quad SDI to 12G-SDI Converter

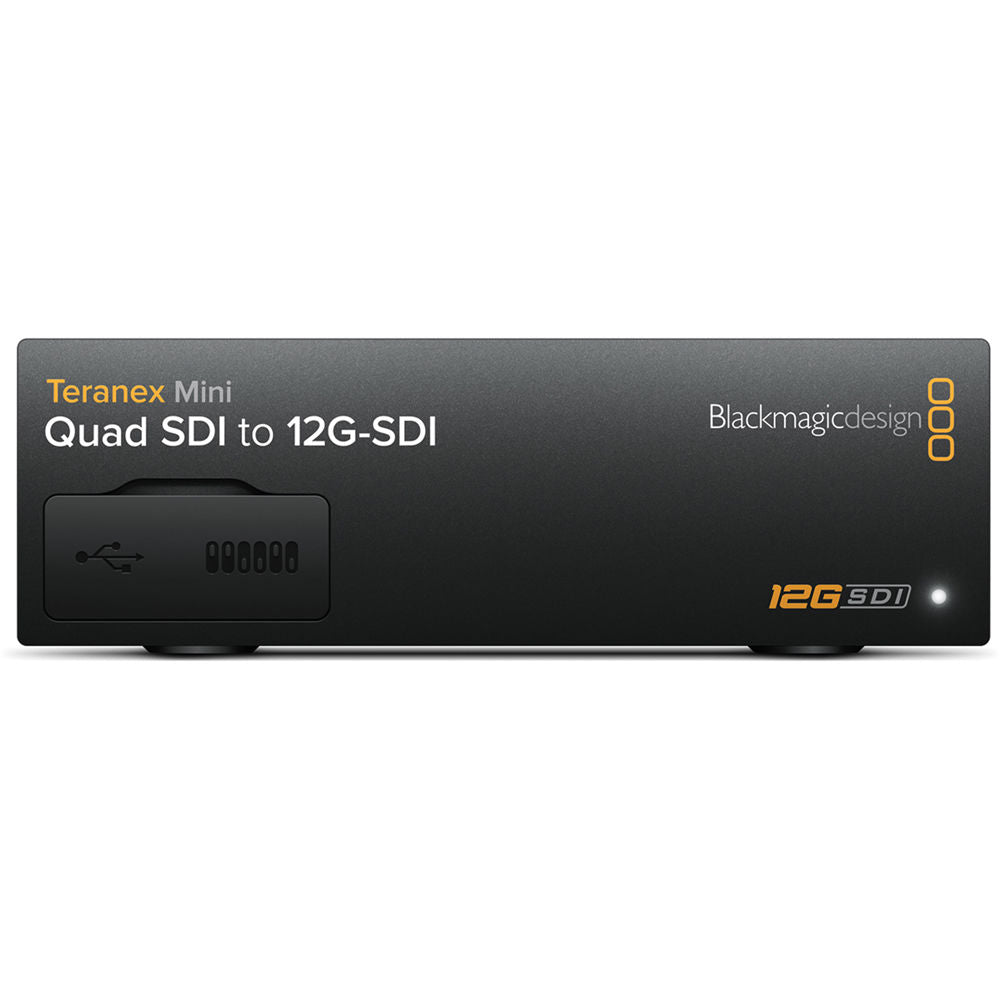

Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap. Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.

Features:

• Quad-Link 12G-SDI Input
• 2 Single-Link 12G-SDI Outputs
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
• 24-bit, 48 kHz Audio
• Control via DIP Switches or Software
• USB 2.0 Port for Firmware Updates
• Requires IEC C14 Power Cable

Specifications:

• SDI Video Inputs: 4 x 12G-SDI SD/HD/2K/4K auto switching.
• SDI Video Outputs: 2 x 12G‑SDI.
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K
• Embedded Audio Support: 16 channels.
• Updates and Configuration: USB or Ethernet
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF29.97, 1080PsF25, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-1 and SMPTE 2082-10
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDIand 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Space: YUV & RGB
• Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
• Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
• Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption: 16 Watts
• Operational Voltage Range: 90 - 240V AC
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: Teranex Mini Quad SDI to 12G‑SDI, SD card with software and manual
• Warranty: 3 year Limited Manufacturer’s Warranty.
