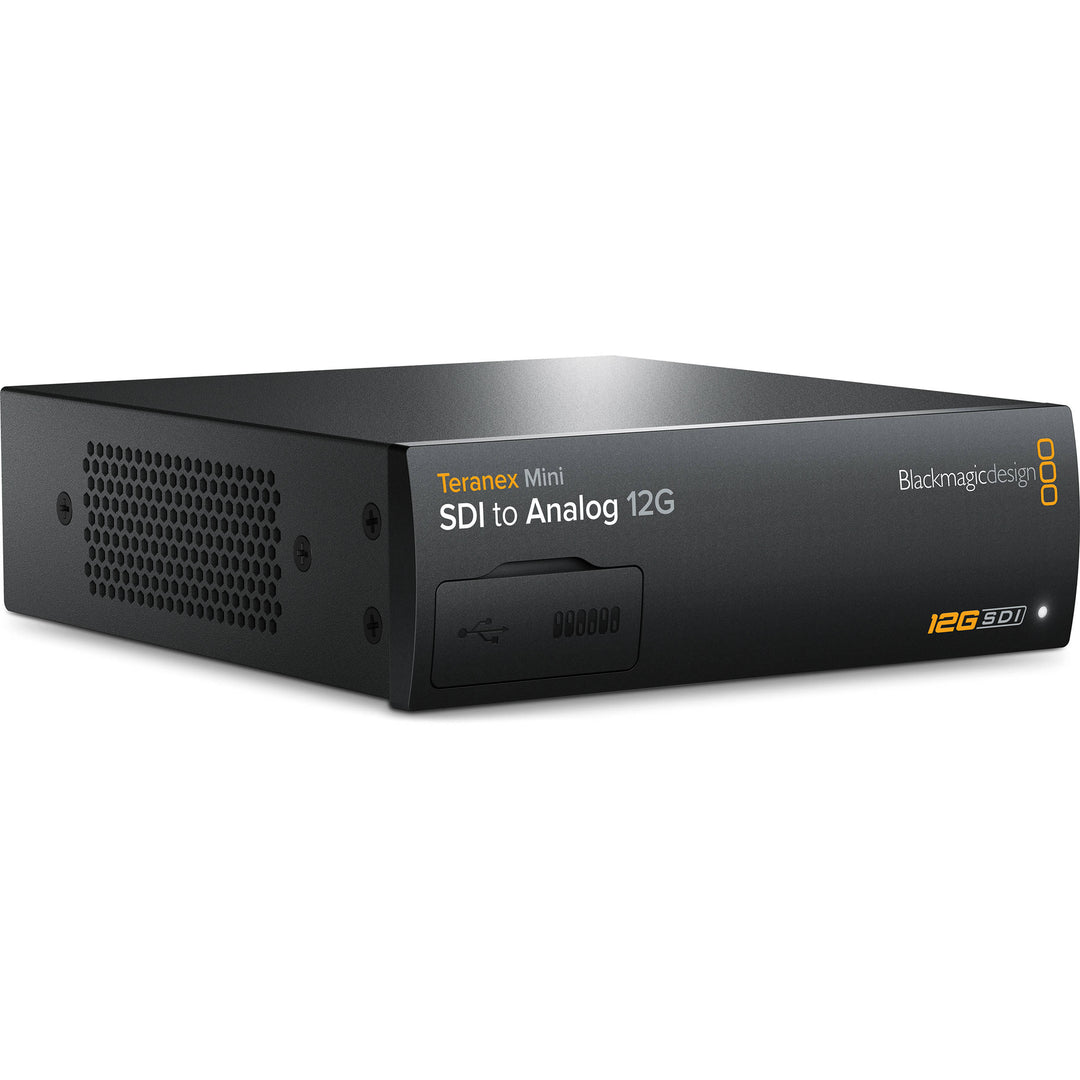

Blackmagic Design Teranex Mini SDI to Analog 12G Converter

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini SDI to HDMI 12G Converter, fromBlackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect up to a Full 4K DCI 4096x2160p SDI signal and run it out to an HDMI display in the same DCI 4K resolution, and monitor the signal locally via an SDI loopout. You can also de-embed audio from the signal and route it separately via full-size XLR connectors that are switchable between balanced analog and AES/EBU digital audio. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately. A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software. What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack keeping all units cool and providing redundancy for each one. The Teranex Mini SDI to HDMI 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.

Features:

• Advanced High-Data Rate Signal Converter
• Down-Convert 12G-SDI 4K Signal to Analog
• Supports Up to 4K DCI 4096x2160p Signals
• 12G-SDI Input and Loopout
• XLR Connections Switchable to AES/EBU
• Ethernet Port for Remote Control or PoE
• Supports Optional LCD Smart Front Panel
• Intelligent Thermal Heat Dissipation
• 3 Units 1U Rack-Mountable in 19" Rack
• Manage Numerous Units from a Mac or PC

Specifications:

• SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching.
• SDI Video Outputs: 1 x 12G-SDI loop output.
• Analog Video Outputs: Composite, Y/C or Component.
• Analog Audio Outputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
• Digital Audio Outputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
• Embedded Audio Support: 16 channels.
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
• Updates and Configuration: USB or Ethernet.
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV
• Analog Video Standards: 525i59.94 NTSC, 625i50 PAL
• Analog Color Space: REC 601, REC 709
• Analog Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
• Format Conversion: HD down conversion
• Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
• Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
• Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption: 16 Watts
• Operational Voltage Range: 90 - 240V AC
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: Teranex Mini SDI to Analog 12G, SD card with software and manual
• Warranty: 3 year Limited Manufacturer’s Warranty.
