Blackmagic Design Teranex Mini SDI-DisplayPort 8K HDR Converter Solution

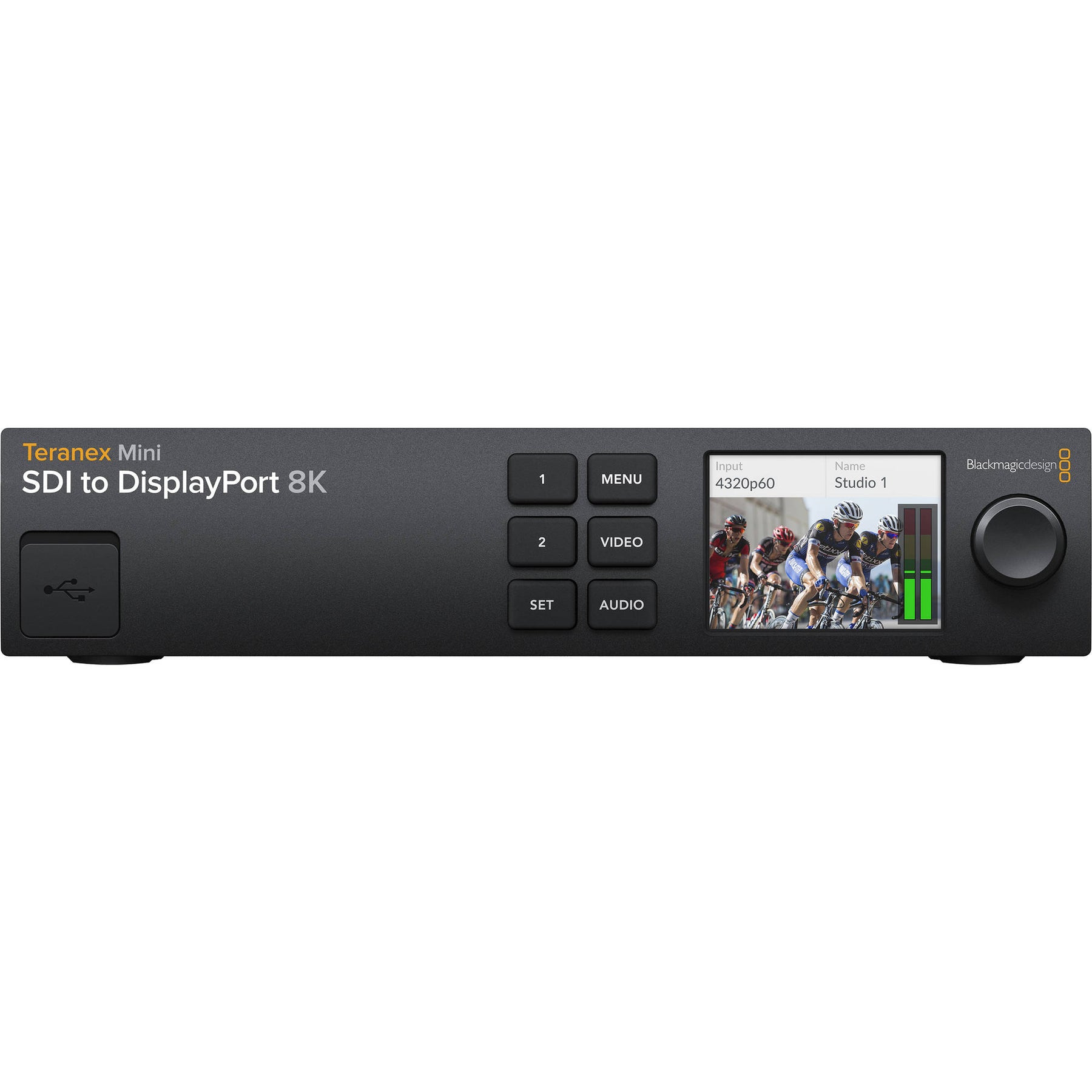

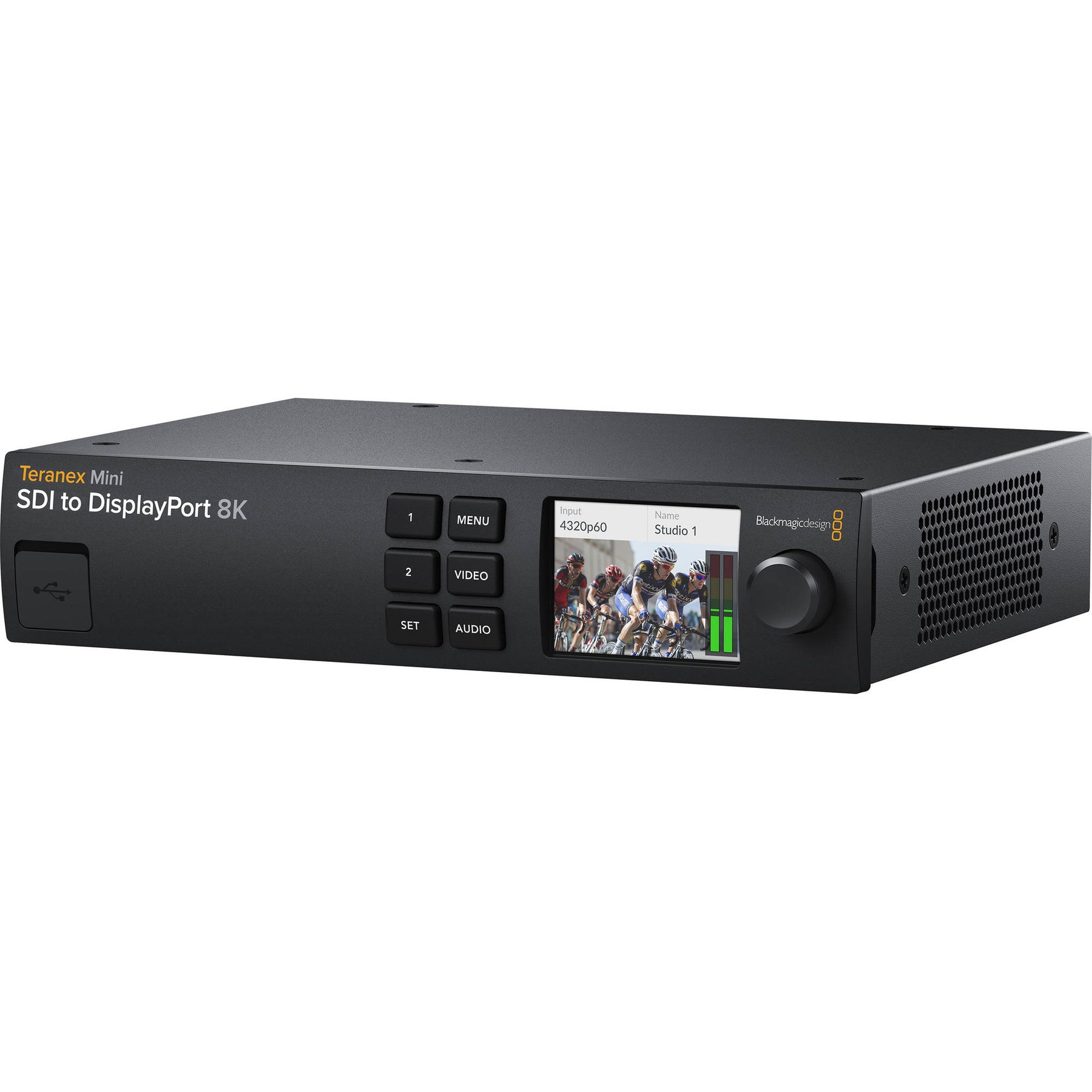

The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup. The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color. The built-in, color LCD screen displays not only the video image, but it can also display two on-screen scopes selected from WFM, Parade, Vector, and Histogram options.  The 8K is available on the four SDI outputs, via the single USB-C DisplayPort output, or the two full-size DisplayPort outputs for monitors that support quad HDMI inputs. If you are not connected to an 8K monitoring solution, a built-in down-converter enables you to display the 8K input video on an Ultra HD or HD monitor. This unit will convert between 2SI and square division automatically. The Mini SDI to DisplayPort 8K HDR solution supports a variety of HDR workflows including PQ and HLG, and it supports both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 format. Two independent 3D LUTs can be loaded at the same time, and you can switch between them from the unit's front panel. In addition to the LCD video screen, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter features a rotating selection knob and six front-panel buttons for navigating. Use the included rubber feet for desktop mounting or support the converter with the separately available Teranex Mini Rack Shelf.

Features:

• Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
• Accepts Third-Party Calibration Probes
• 12G-SDI I/O / DisplayPort/USB-C D.P. Out
• 2 x Selectable, On-Screen Scopes
• Auto-Convert 2SI and Square Division
• Supports HDR Workflows
• Supports 33-Point 3D LUTs
• Front-Panel Interface, Audio Meters
• Rack-Mountable with Separate Kit

Specifications:

• SDI Video Inputs: 4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G-SDI for 8K only.
• SDI Video Outputs: 4 x 12G-SDI loop output.

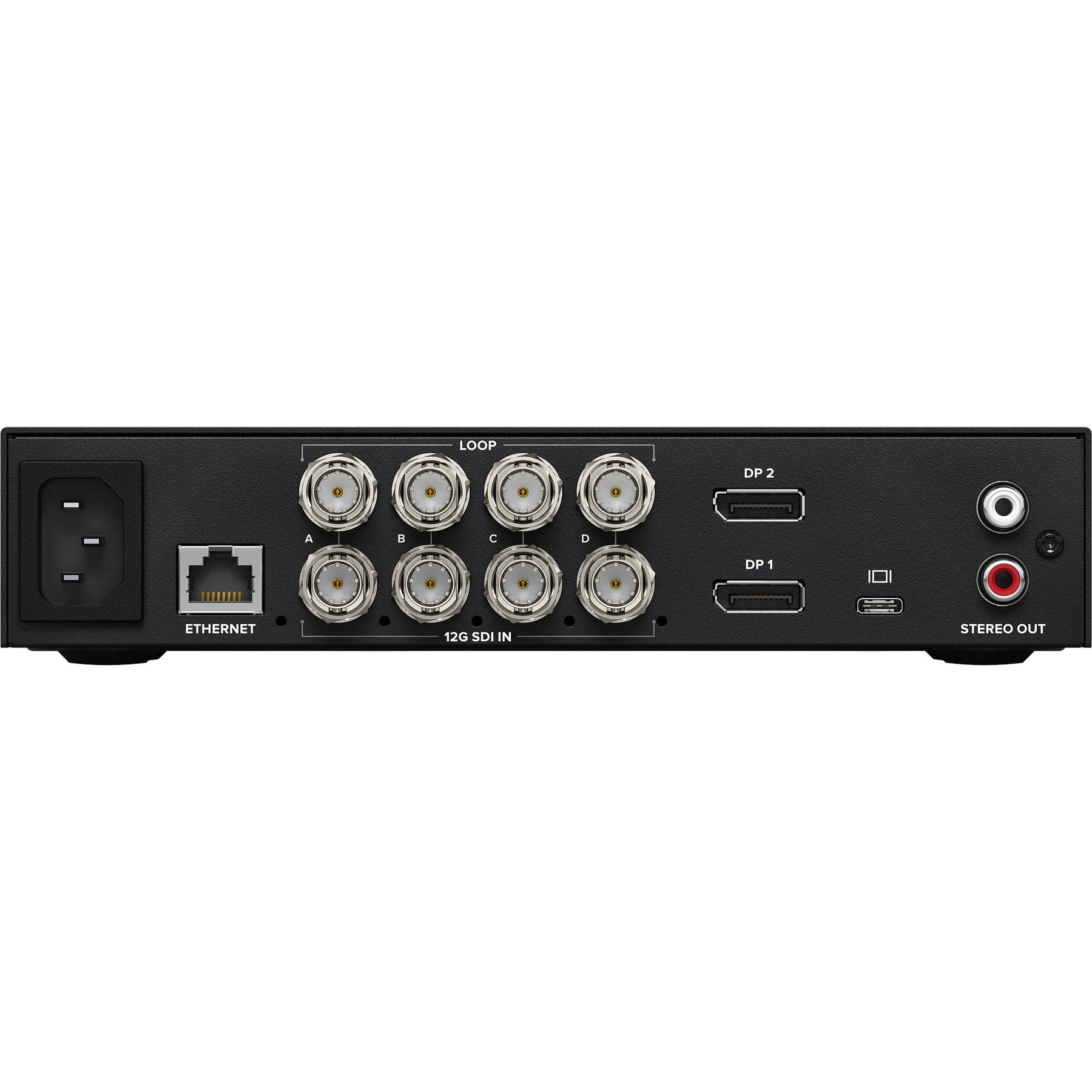

• DisplayPort Video Outputs: 2 x full size DisplayPort connectors. Single used for 4K video and both used for uncompressed 8K video. 1 x USB-C DisplayPort connector. Compatible with certified passive DisplayPort over USB-C cables. Active generic USB-C cables or active Thunderbolt cables are not compatible.
• Analog Audio Outputs: 2 channels analog audio via RCA connectors.
• Embedded Audio Support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs.
• Multi Rate Support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI.
• Updates and Configuration: Front USB-C or Ethernet.
• Reclocking: Yes
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
• 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
• SDI Video Rates: SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB.
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 5K and 6K Display Standards: Based on the EDID of the DisplayPort Monitor.
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
• DisplayPort Color Space: REC 709, REC 2020
• DisplayPort Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
• Scopes: Waveform, RGB/YUV Parade, Vector, Histogram
• Viewing Modes: Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules.
• Conversion: Output can be set to SDR, HLG or PQ
• Software Control: Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet.
• Internal Software Upgrade: Via included updater application.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit.
• Settings Control: 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.
• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Consumption: 35 Watts
• Operational Voltage Range: 100 - 240V AC
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing
• What's Included: Teranex Mini SDI to DisplayPort 8K HDR, SD card with software and manual
• Warranty: 1 year Limited Manufacturer’s Warranty.
