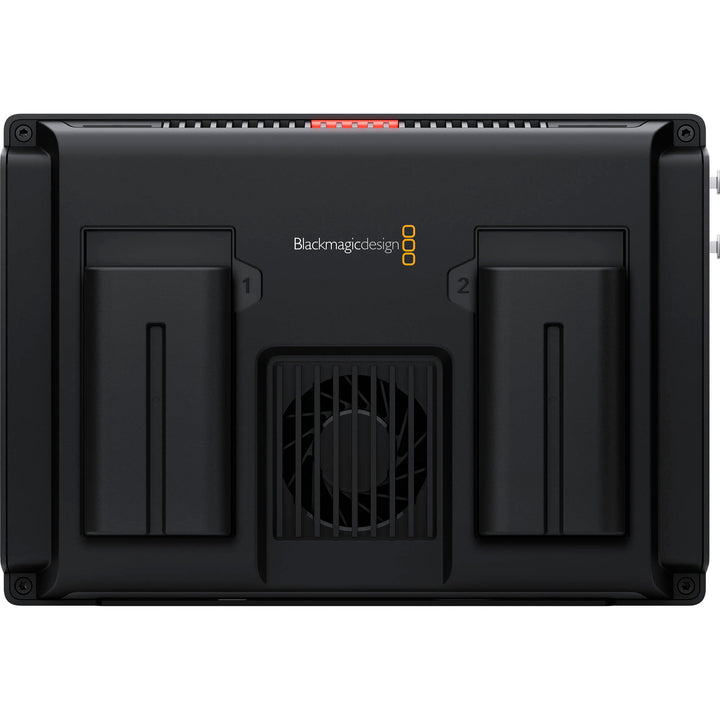

Blackmagic Design Video Assist 7 Inch 3G HDR Monitor

Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 7" Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. This monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. The Video Assist 3G 7" records to SDXC/SDHC memory cards via dual UHS-I SD card slots. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs. This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

Features:

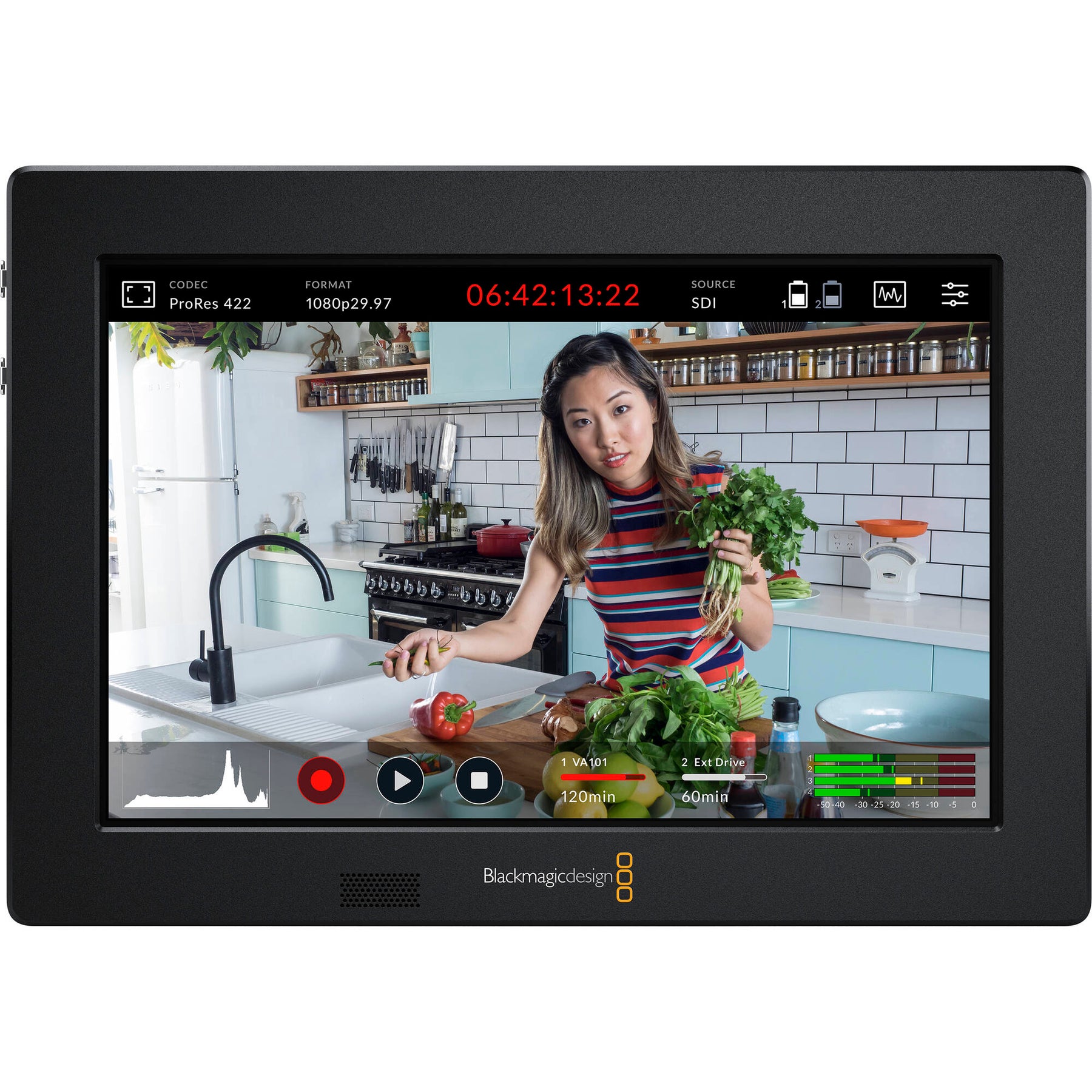

• 1920 x 1200 7" Touchscreen LCD
• HDMI & 3G-SDI Video Inputs/Outputs
• Records up to 1080p60 Video
• Stores to 2 x SDXC/SDHC Memory Cards
• 2.5mm LANC Port for Record Start & Stop
• Waveform, Vectorscope & Histogram
• Focus Peaking, False Color & Zebra
• 11 x Display Language Options

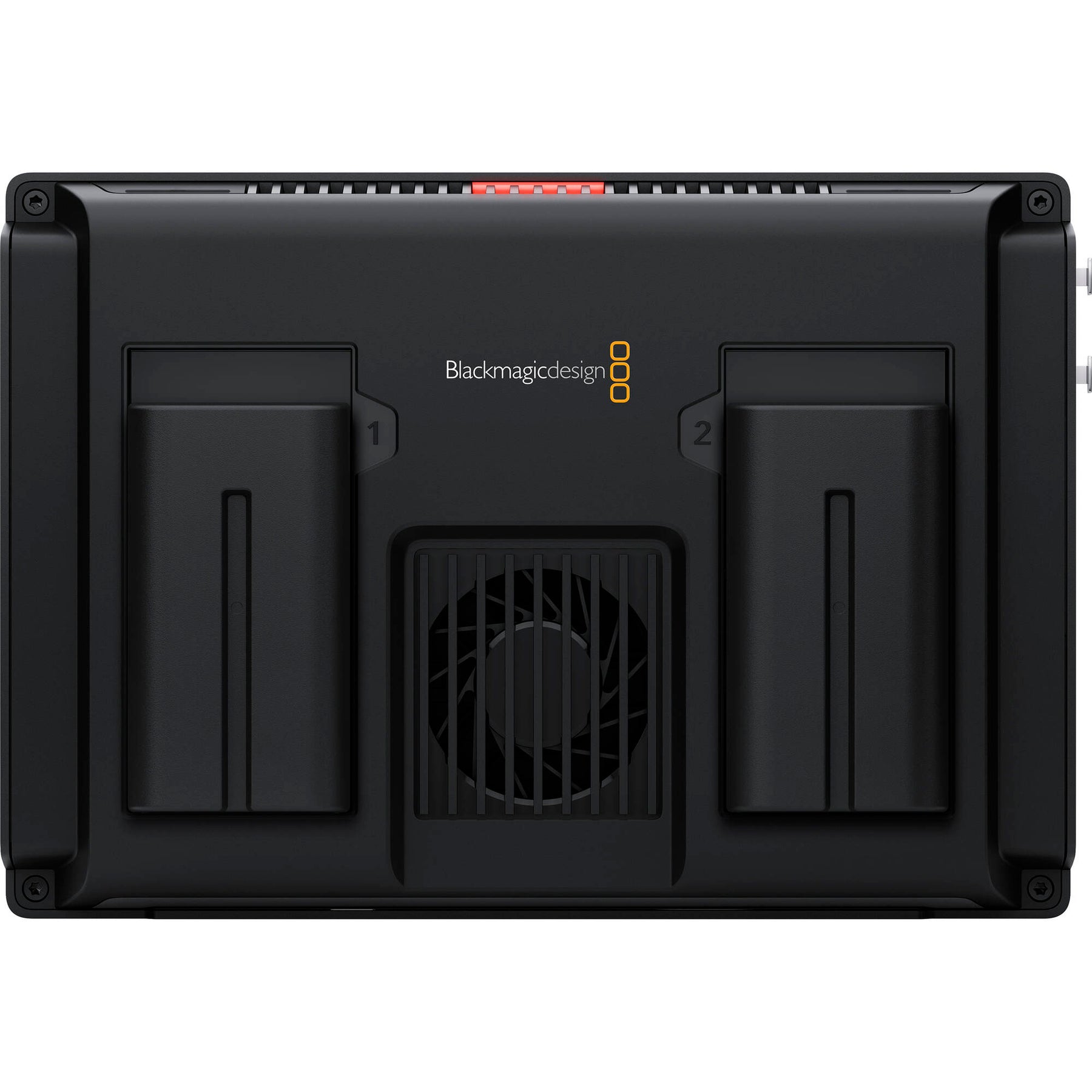

• Dual Sony L-Series Type Battery Slots
• AC Adapter Included

Specifications:

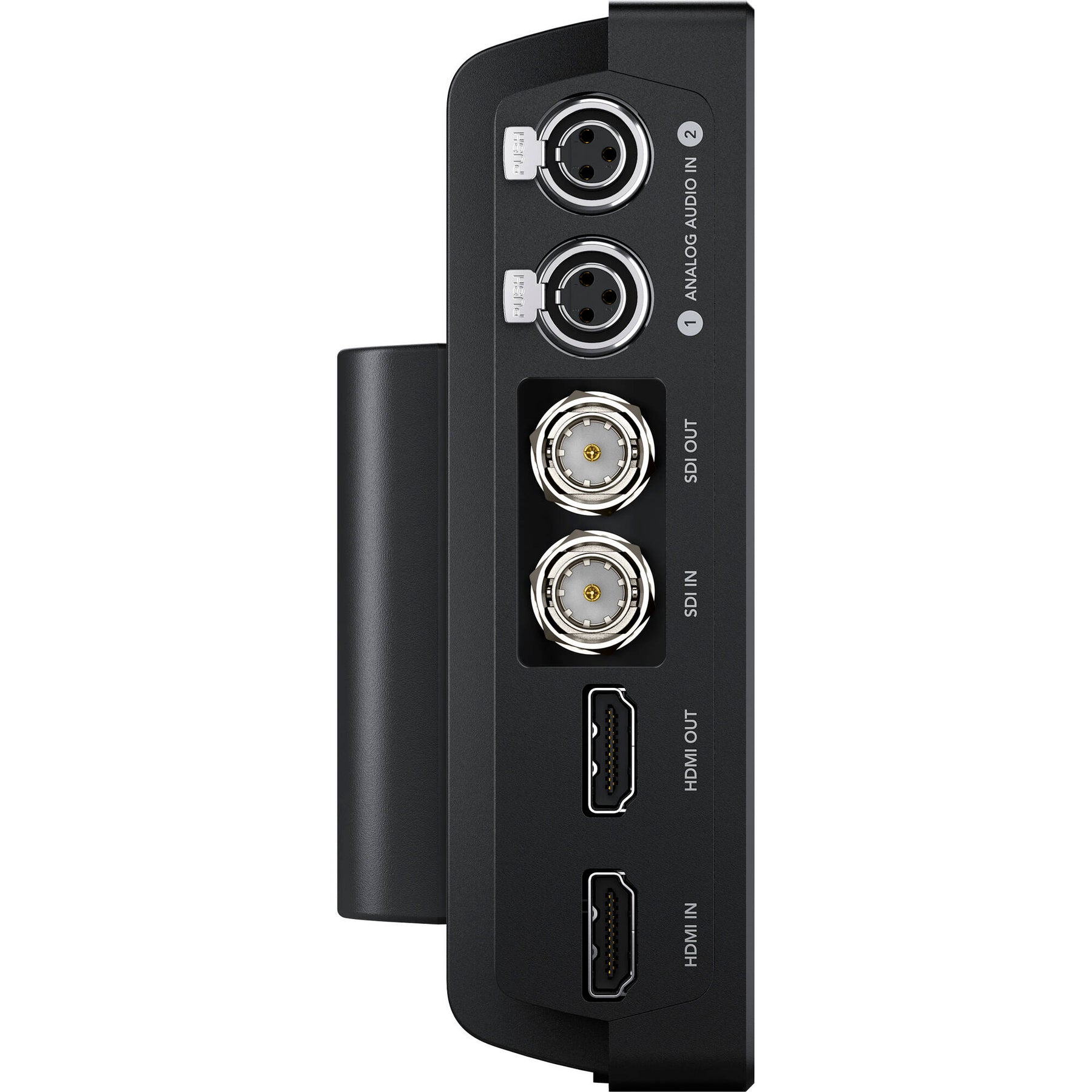

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G
• HDMI Video Inputs: 1
• HDMI Video Outputs: 1
• Analog Audio Inputs: 2 x balanced mini XLR with phantom power
• Analog Audio Outputs: 1 x 3.5mm headphone jack.
• Built in Speaker: Mono
• Screen Dimensions: 7 inch 1920 x 1200.
• Screen Brightness: 310nits
• SDI Audio Inputs: 16 channels embedded via SDI
• SDI Audio Outputs: 16 channels embedded via SDI
• HDMI Audio Inputs: 8 channels embedded via HDMI
• HDMI Audio Outputs: 8 channels embedded via HDMI
• Remote Control: 1 x 2.5mm LANC for Record Start and Stop.

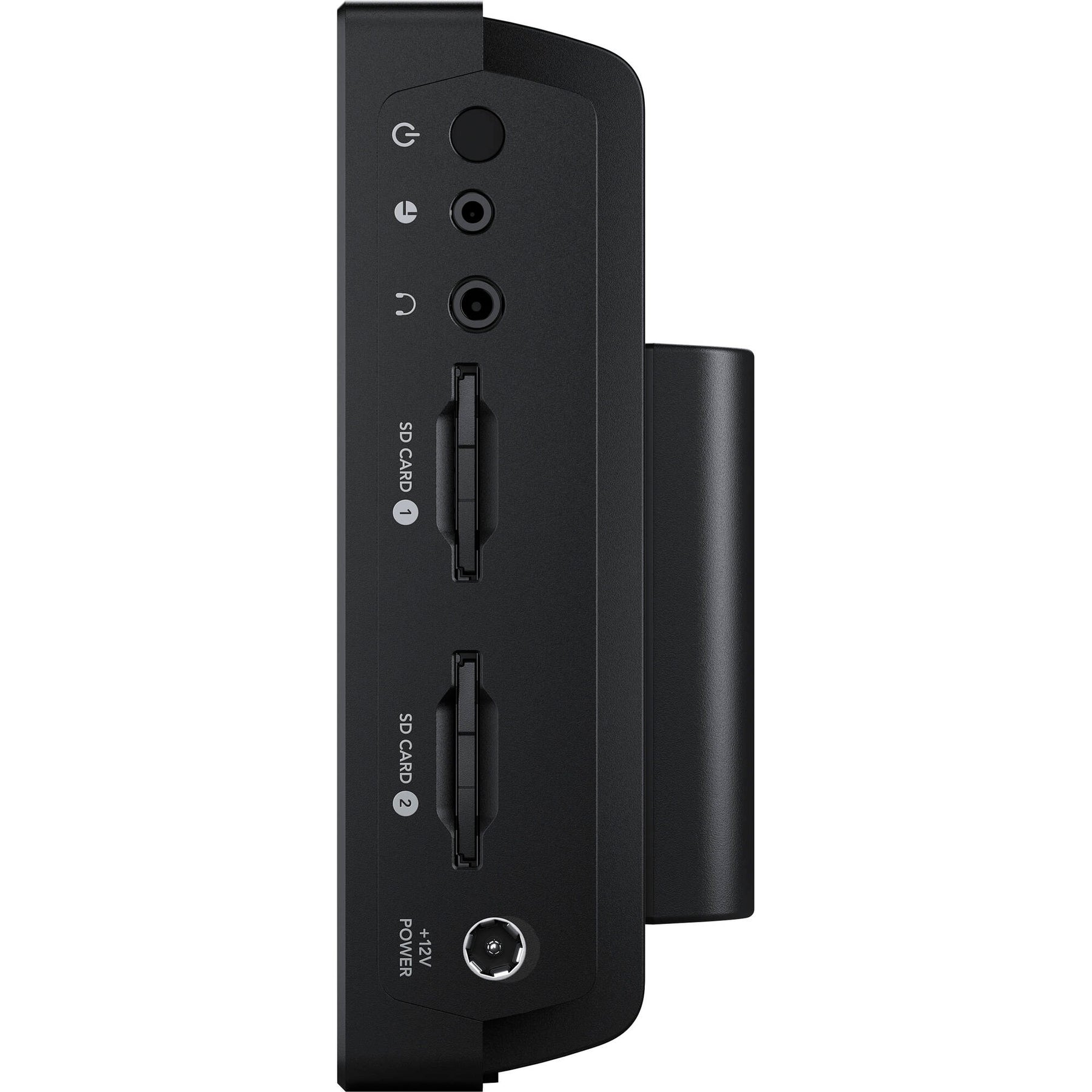

• SD Interface: Dual UHS-I SD slots.
• Storage Type: SDXC UHS-I and SDHC UHS-I SD cards.
• Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
• Computer Interface: 1 x USB Type‑C for initial setup, software updates and Video Assist Utility software control.
• SDI Video Standards: SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
• SDI Metadata Support: HD RP188
• Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709
• Multiple Rate Support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
• HDMI Video Standards: SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 10-bit
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Media: 2 x UHS-I SD for HD recording.
• Media Type: SDXC UHS-I and SDHC UHS-I SD cards.
• Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.
• Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
• External Control: LANC, SDI and HDMI start/stop, timecode run.
• Software Included: Blackmagic OS
• Scopes: Waveform, RGB Parade, Vector, Histogram.
• Viewing Modes: Scopes with picture in picture or picture overlay and opacity control.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
• Power Supply: 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• What's Included: Blackmagic Video Assist 7” 3G, Universal power supply with international adapters
• Warranty: 12 Month Limited Manufacturer’s Warranty.
