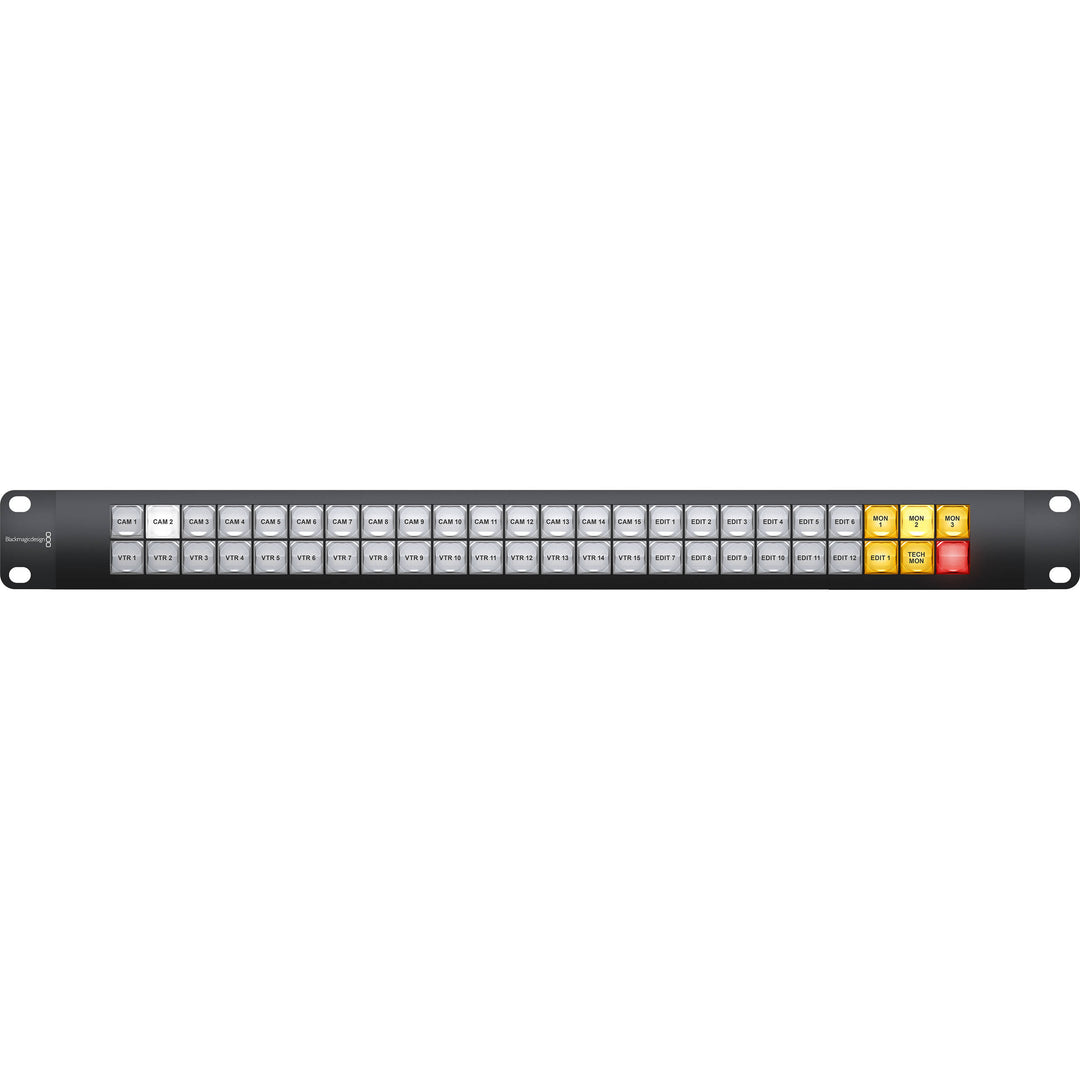

Overview of Blackmagic Design Videohub Smart Control for Router Control
The Videohub Smart Control Pro from Blackmagic Design is a network switching router with 48 programmable buttons for routing sources and destinations over a network. Housed in a 1 RU frame, the Smart Videohub is suitable for use in both large broadcast systems or portable racks for routing live productions over Ethernet. Simple push buttons on the front of the unit are configured to control source and destination as well as 10 assignable macro buttons and several configuration buttons. The buttons can be programmed via USB using the included software for Mac OS X and Windows. The unit also features power fail protection to preserve your button configurations when power is lost. The rear of the unit features an RJ45 Ethernet input with PoE to connect your sources and power the unit, or it can be powered with a separately available C13 power cable. There is also an Ethernet loop output without PoE to communicate with your destinations. Two RS-422 input and output ports for future implementation are also on the back as well as a USB Type-C port for software configuration and firmware upgrades.
Features:
- Routing Switcher
- 48 Programmable Buttons
- 10 Programmable Macro Buttons
- 1 RU Rackmount Size
- Push Buttons on Front Panel
- RS-422 Input and Output
- Ethernet with PoE for Remote Control
- Videohub Control Software Included
Specifications:
- Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
- RS-422: In and Out (for future implementation)
- Computer Interface: USB-C for configuration and software updates.
- Power: 100 - 240 AC
- Macro Capability: Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
- Hardware Control: 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
- Software: Internal Software upgrade via included firmware updater application via USB.
- Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.
- Physical Installation: 1 rack unit size. Less than 3 inches deep.
- Button Configuration: Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
- Power Fail Protection: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
- Power Supply: Internal 100 - 240 V AC
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- What's Included: Videohub Smart Control Pro
- Warranty: 12 Months Limited Warranty.
