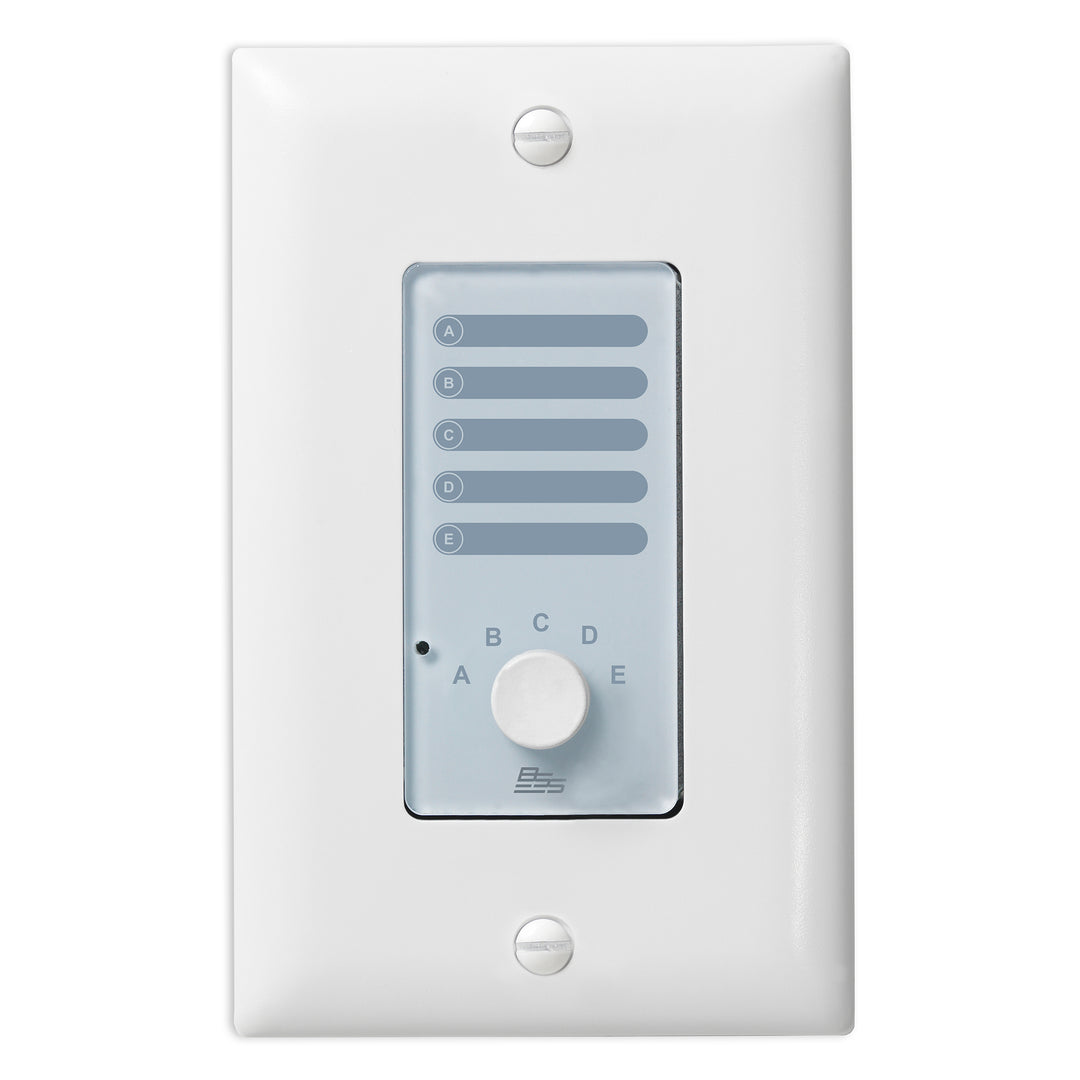

BSS AC-5S US (WHT) Analog Controller with 5-Position Source Selector (White)

The BSS Audio AC-5S-WHT-US is a versatile and user-friendly analog wall controller designed for seamless integration with BSS Audio Soundweb London devices. This single-gang, US Decora-form factor controller, finished in a clean white, features a five-position source selector that provides simple and intuitive control over audio systems in various applications. The AC-5S is specifically designed to connect to the General Purpose Inputs (GPI) found on Soundweb London devices, enabling straightforward and reliable control of source selection or preset recall functions. Ideal for installations where easy-to-use control is essential, the AC-5S-WHT-US offers a sleek and cost-effective solution for a wide range of environments.

The AC-5S controller utilizes a single five-position resistor ladder, making it particularly useful for selecting audio sources or recalling presets within an audio system. With its requirement of only one GPI per controller, the AC-5S allows for up to 12 controllers to be connected to a single Soundweb London device, or up to 36 controllers when connected to a Soundweb London BLU-GPX device. This scalability provides flexibility for installations of varying sizes, from small venues to large, complex systems.

Configuration of the AC-5S is straightforward and efficient, thanks to the HiQnet Audio Architect software. Parameters can be easily mapped to the physical controls using simple drag-and-drop operations, allowing for quick setup and customization. While the AC-5S is primarily designed for source selection or preset recall, it offers versatility for other control functions as well. The controller's compatibility with BSS Audio Soundweb London devices, combined with its elegant white finish and ease of use, makes the AC-5S-WHT-US an excellent choice for both new installations and system upgrades.

Features:

• Analog wall controller with a five-position source selector.
• Compatible with BSS Audio Soundweb London devices.
• Single-gang US Decora-form factor in white finish.
• Connects to General Purpose Inputs (GPI) on Soundweb London devices.
• Requires one GPI per controller, allowing up to 12 controllers per Soundweb London device.
• Configurable via HiQnet Audio Architect with drag-and-drop operations.
• Primarily used for source selection or preset recall.
• Sleek and cost-effective control solution for various audio installations.
• Recommended wiring: VW-1 Rated, 5V, 1mA
