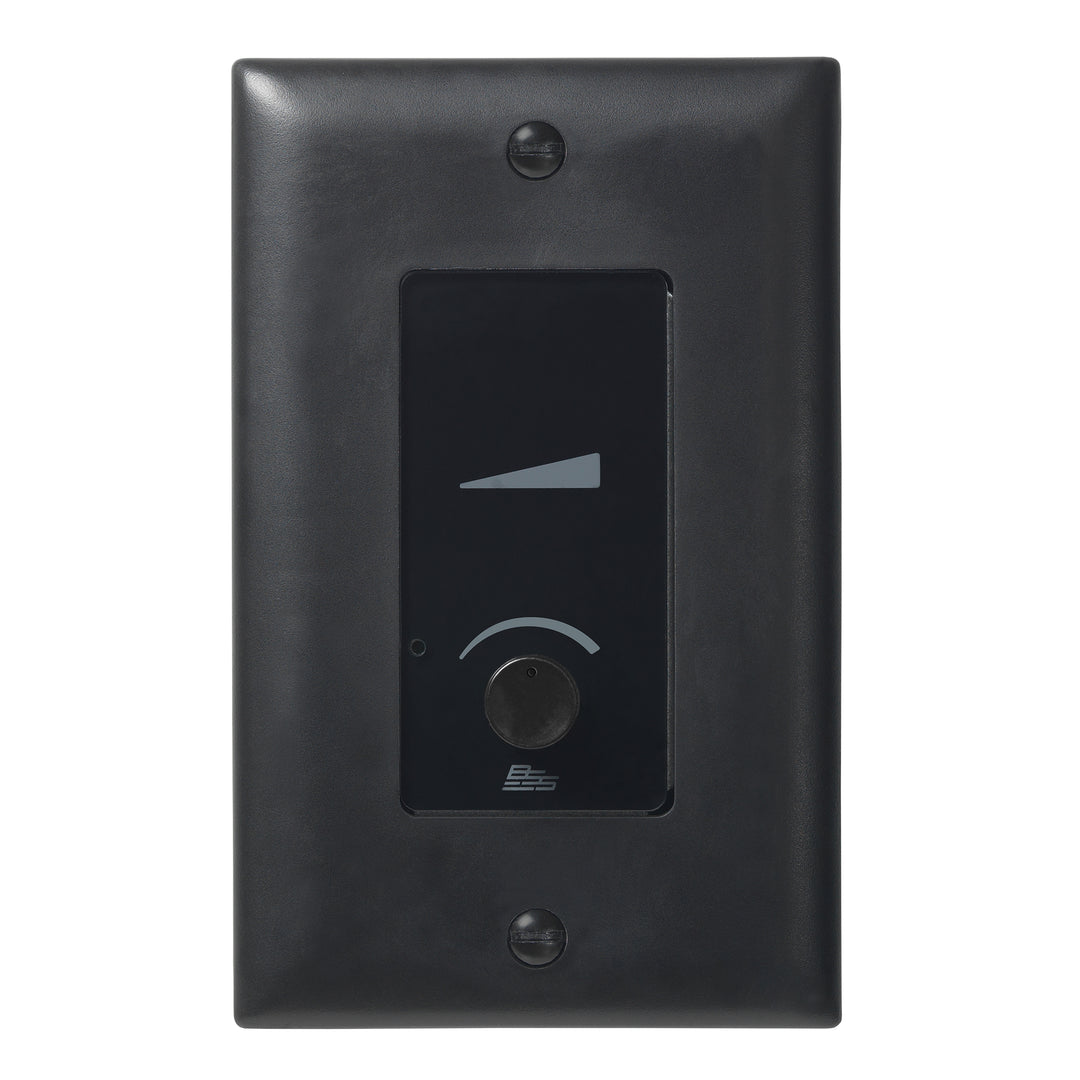

BSS AC-V US (BLK) Analog Controller with Volume (Black - US)
AC-V-BLK-US
Payment plans from Affirm, learn more
- BSS
- Shipping Calculated at checkout, most in stock products ship same day
The Soundweb Contrio AC-V and AC-5S are simple analog wall controllers designed for use with BSS Audio Soundweb London devices.
The AC-V and AC-5S are designed to connect to General Purpose Inputs (GPI) (also known as “Control Inputs”) found on Soundweb London devices. Most Soundweb London devices contain 12 GPI. The Soundweb London BLU-GPX contains 36 GPI.
The AC-V contains a single 47k Ohm logarithmic potentiometer which is useful for volume control, and requires one GPI. Therefore, up to 12 AC-V controllers can connect to a single Soundweb London device, and up to 36 AC-V controllers can connect to a single BLU-GPX.
The AC-5S contains a single five-position resistor ladder which is useful for source selection or preset recall.
The AC-V and AC-5S are configured using HiQnet Audio Architect via simple drag and drop operations. While almost any parameter can be mapped to the physical controls, the AC-V is most commonly used for volume control, whereas the AC-5S is most commonly used for source selection or preset recall.
- Analog Wall Controllers
- Cost-Effective Control Solution
- AC-V for Volume Control
- Compatible with BSS Audio Soundweb London devices
- Single-Gang Size
- Configured in Audio Architect via Drag-and-Drop
