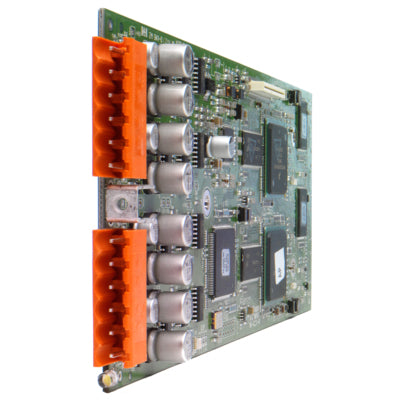

BSS BLUCARD-IN 4 analog input mic/line card for Soundweb London Chassis
BLU-CARD-IN
Regular price$709.99
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- BSS
- Shipping Calculated at checkout, most in stock products ship same day
The Soundweb London Analog Input Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to receive microphone / line level signals.
The Soundweb London Analog Input Card offers Phantom Power, configurable per channel and software controlled analog gain in 6dB steps from 0dB to 48dB.
The Analog Input Card has two Combicon connectors which are used as follows:
- Connector 1
- Balanced / Unbalanced Audio, Channel 1 - Mic/Line
- Balanced / Unbalanced Audio, Channel 2 - Mic/Line
- Connector 2
- Balanced / Unbalanced Audio, Channel 3 - Mic/Line
- Balanced / Unbalanced Audio, Channel 4 - Mic/Line
Connector [Mic/Line Combicon]
- Signal 4 - Pin [S + -]
- Signal 3 - Pin [S + -]
- Signal 2 - Pin [S + -]
- Signal 1 - Pin [S + -]
Balanced
- Hot: to +
- Cold: to -
- Shield: to S
Unbalanced
- Hot: to +
- Link to Shield: to -
- Shield: to S
- Analog Inputs: 4 mic/line
- Input Type: balanced/unbalanced
- Phantom Power: Yes
