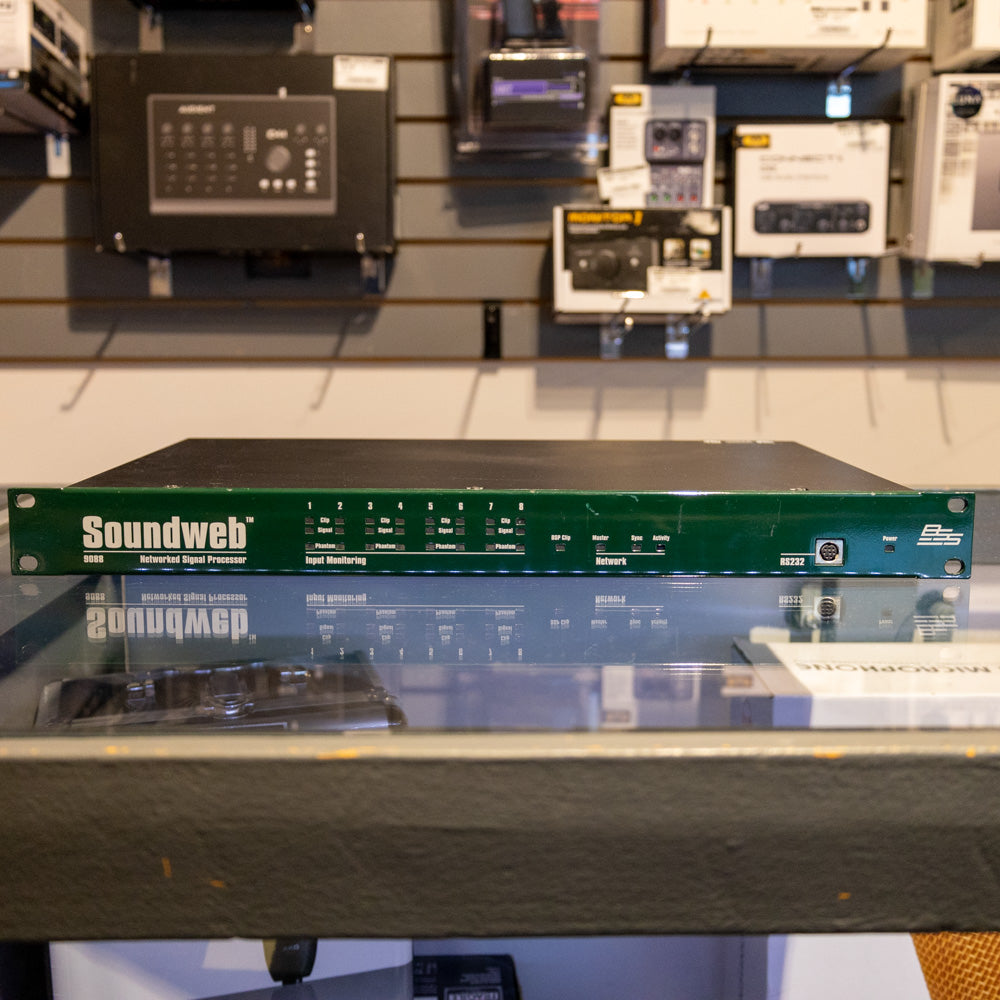

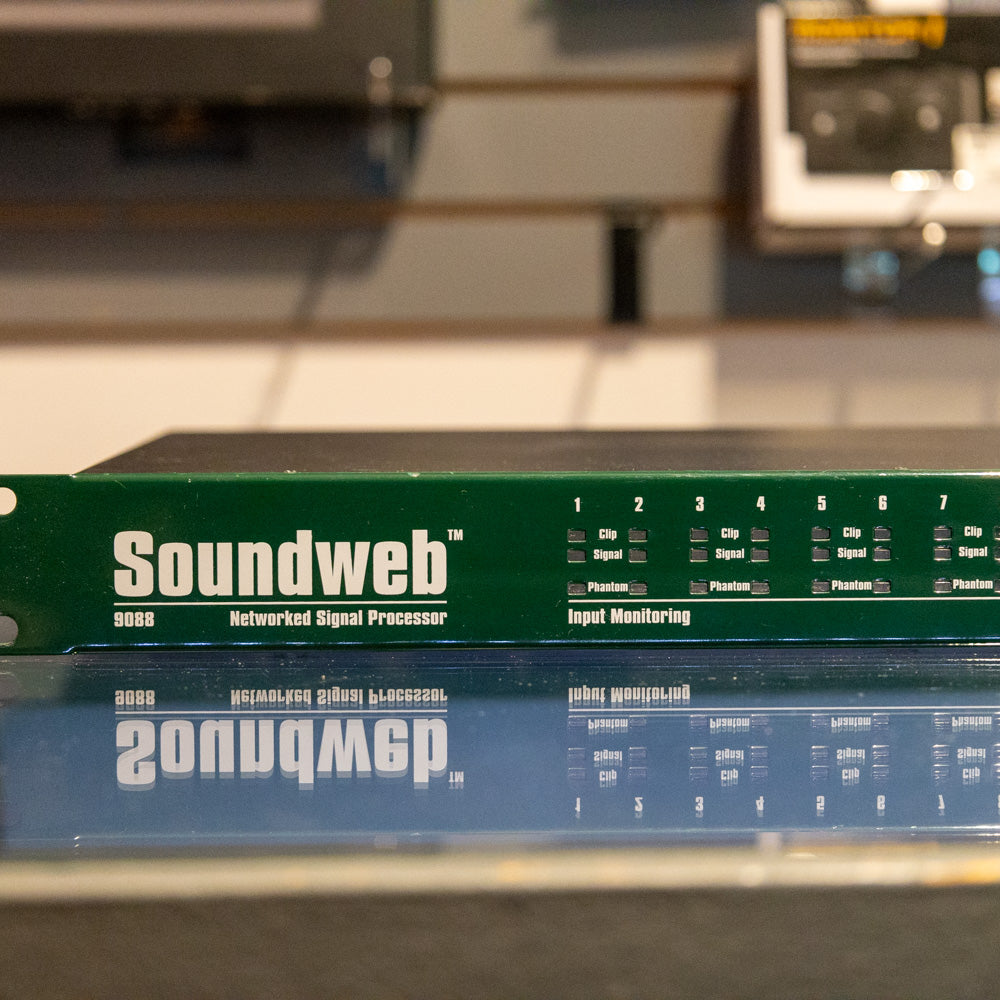

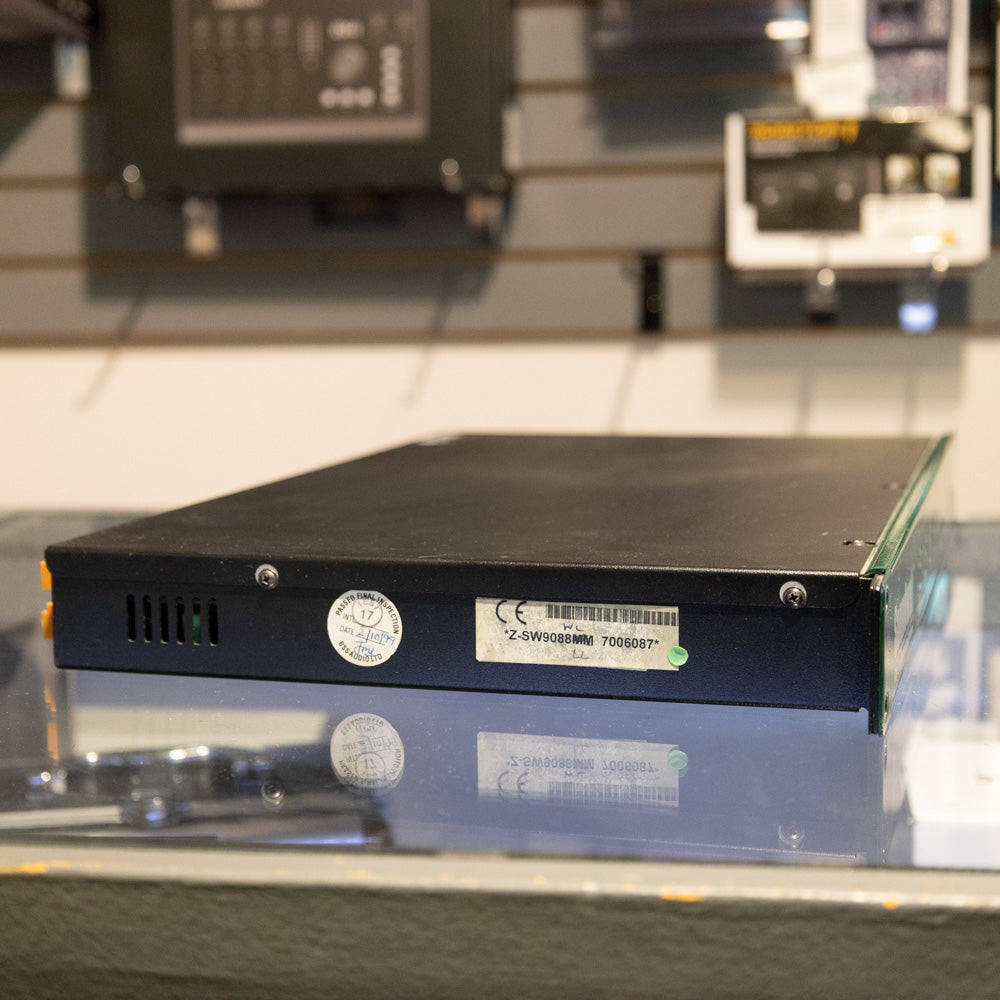

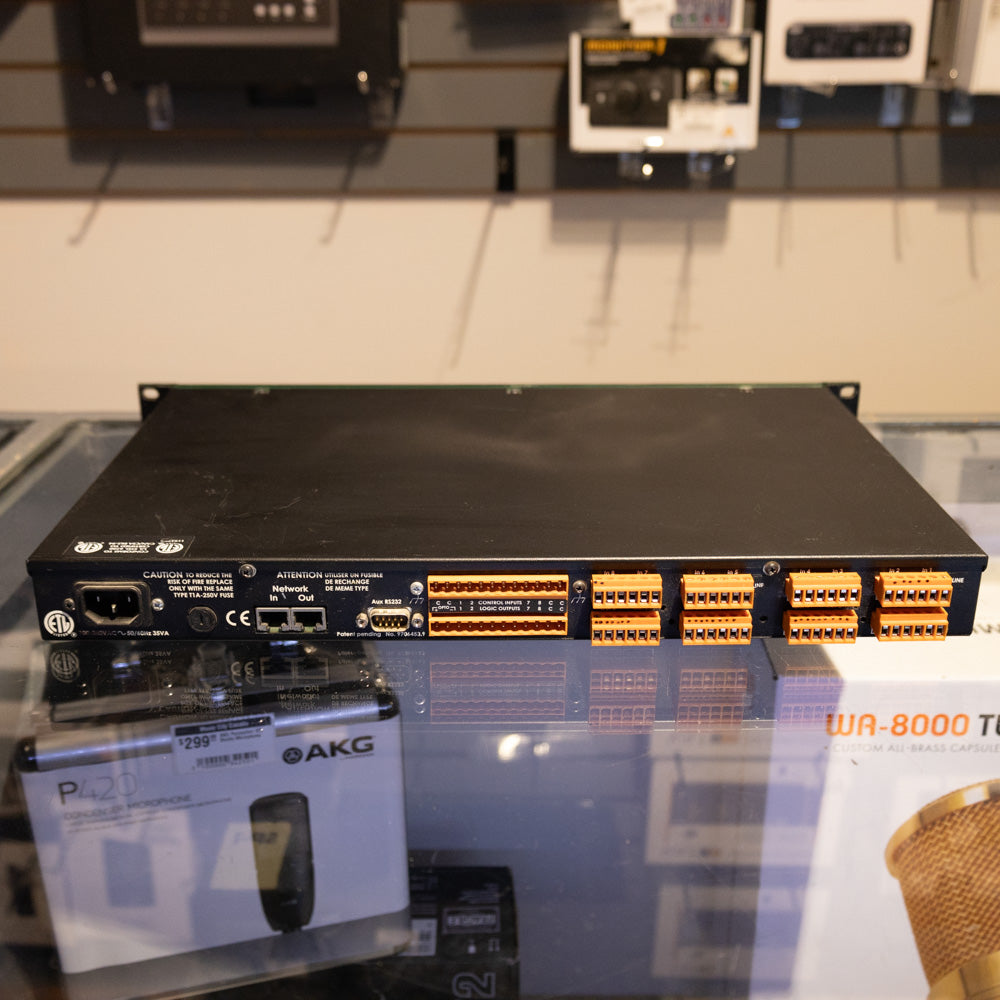

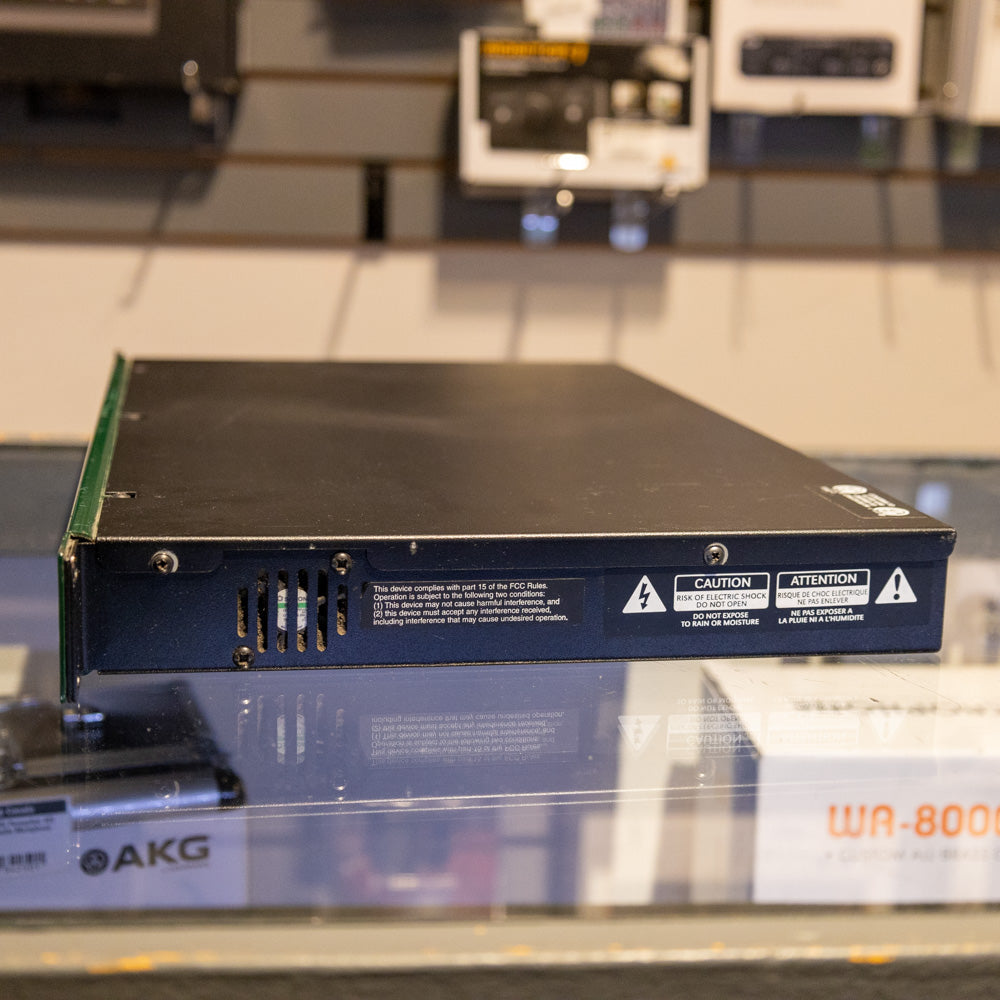

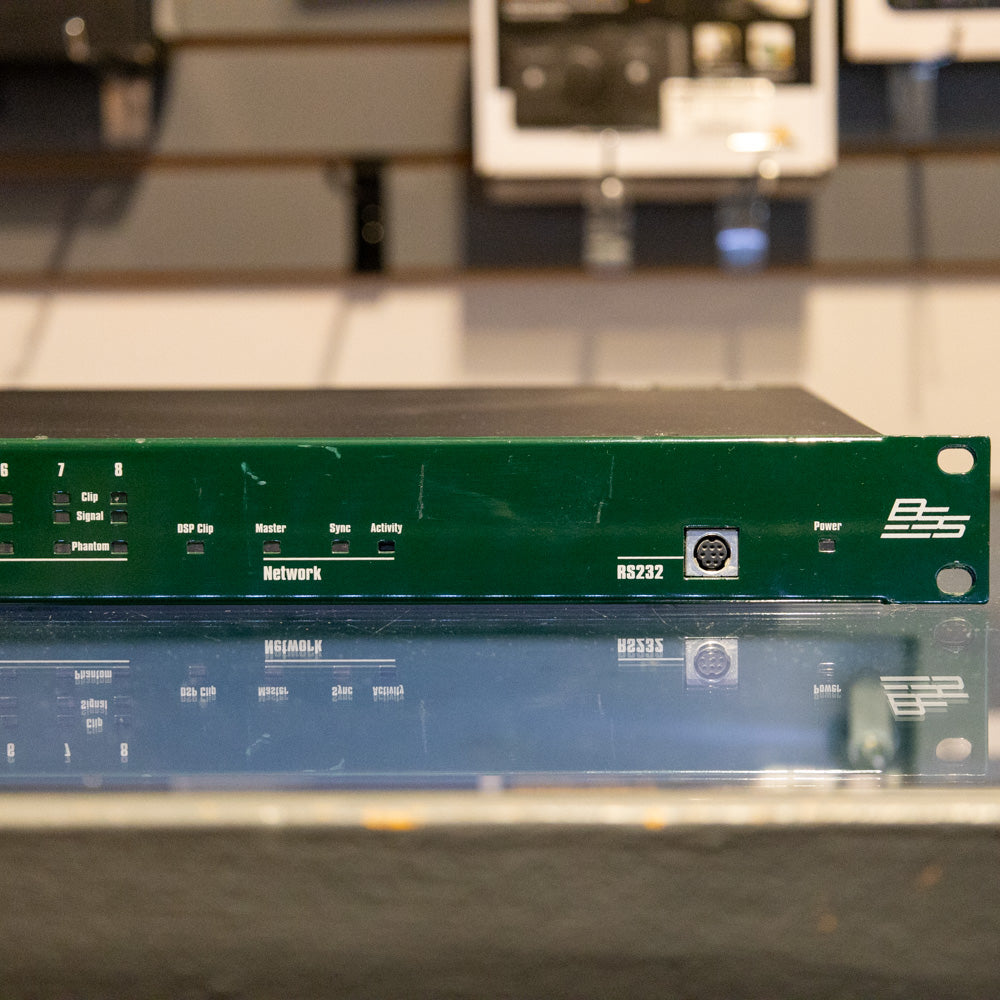

BSS Soundweb 9088 - Used
210000122689
Payment plans from Affirm, learn more
- BSS
- Shipping Calculated at checkout, most in stock products ship same day
Specifications:
Frequency response (+-0.5dB): 15Hz to 20KHz
THD: <0.01% (20Hz to 0KHz, +10dBu output)
Dynamic range:
- 100dB typ. (22Hz to 22KHz unweighted)
- 103dB typ. (A-weighted)
Maximum output level: +20dBu
Inter-channel Crosstalk: <-75dB
Maximum network cable length: 300m/1000ft

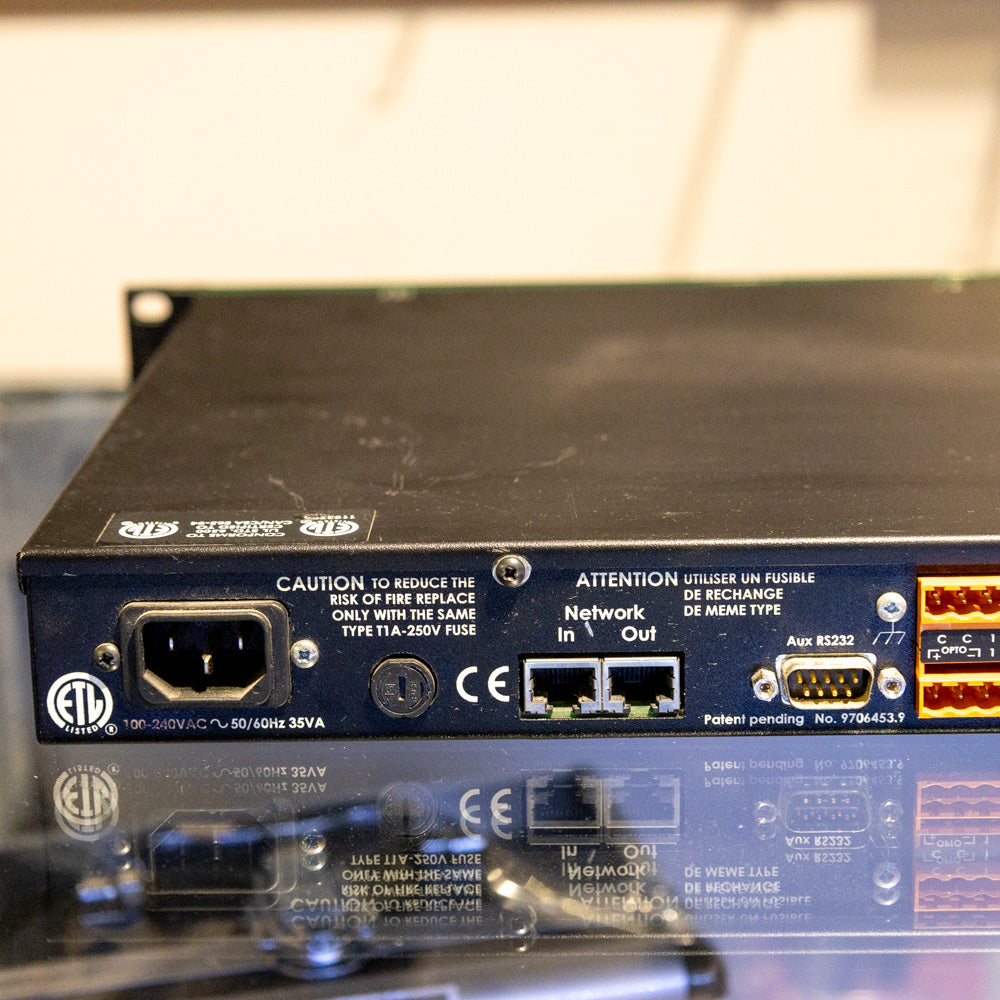

Power consumption: <35VA Mains Volts 85-270V 50/60Hz

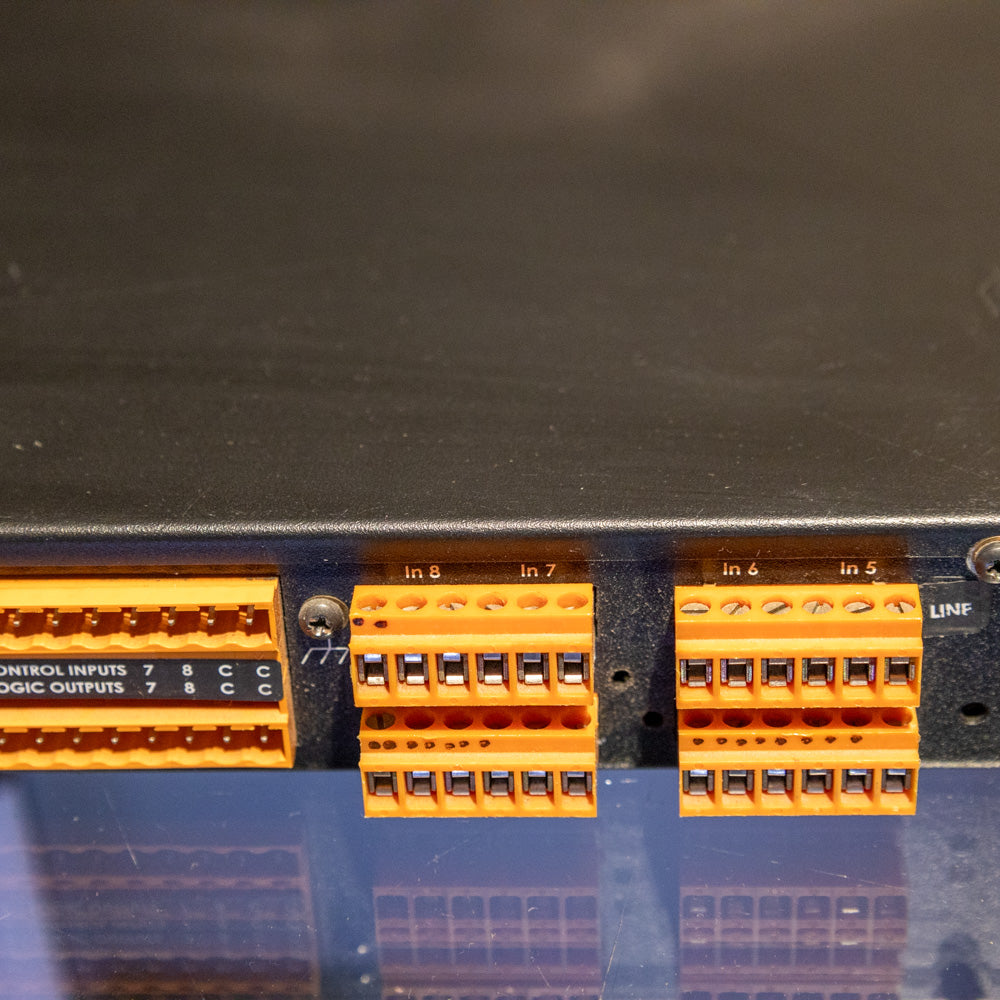

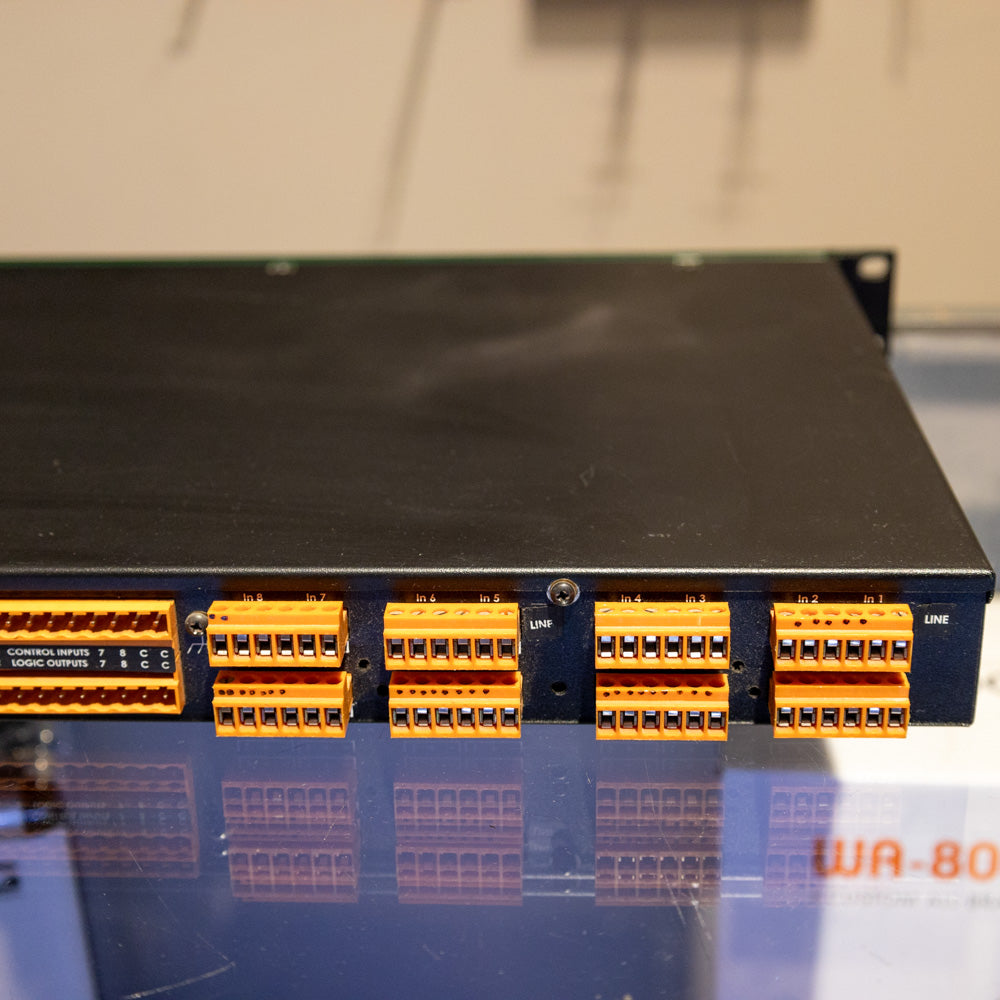

Line input card:
Input Impedance: 10kOhms
Maximum input level: +20dBu (+8dBu with 12dB gain)
Gain range: 0 or 12dB
Universal microphone/Line input card
Input impedance: 3.5kOhms
Maximum input level: +20dBu (with 0dB gain)
Gain range: 0 to 70dB
CMRR: >75dB at 1KHz
Equivalent Input Noise (EIN): <-128dBu type with 150 Ohms source
Phantom power: 48V nominal
Control ports:
Logic output voltage: 0 or +5V unloaded
Logic output impedance: 440 Ohm
Opto output series impedance: 220 Ohms (isolated)
Control input voltage: 0 to 4.5v
Control input impedance: 4.7kOhms to +5V
Opto Output current: 14mA max
Opto output withstanding voltage (off): 80V max.
Special Note: Special Note: This item is previously owned. Please see pictures for reference and feel free to contact us with any specific questions. Used products come with a 14 day trial period from the date of delivery. Consignment products come with a 7 day trial period from the date of delivery. All used and consignment sales are otherwise final.
