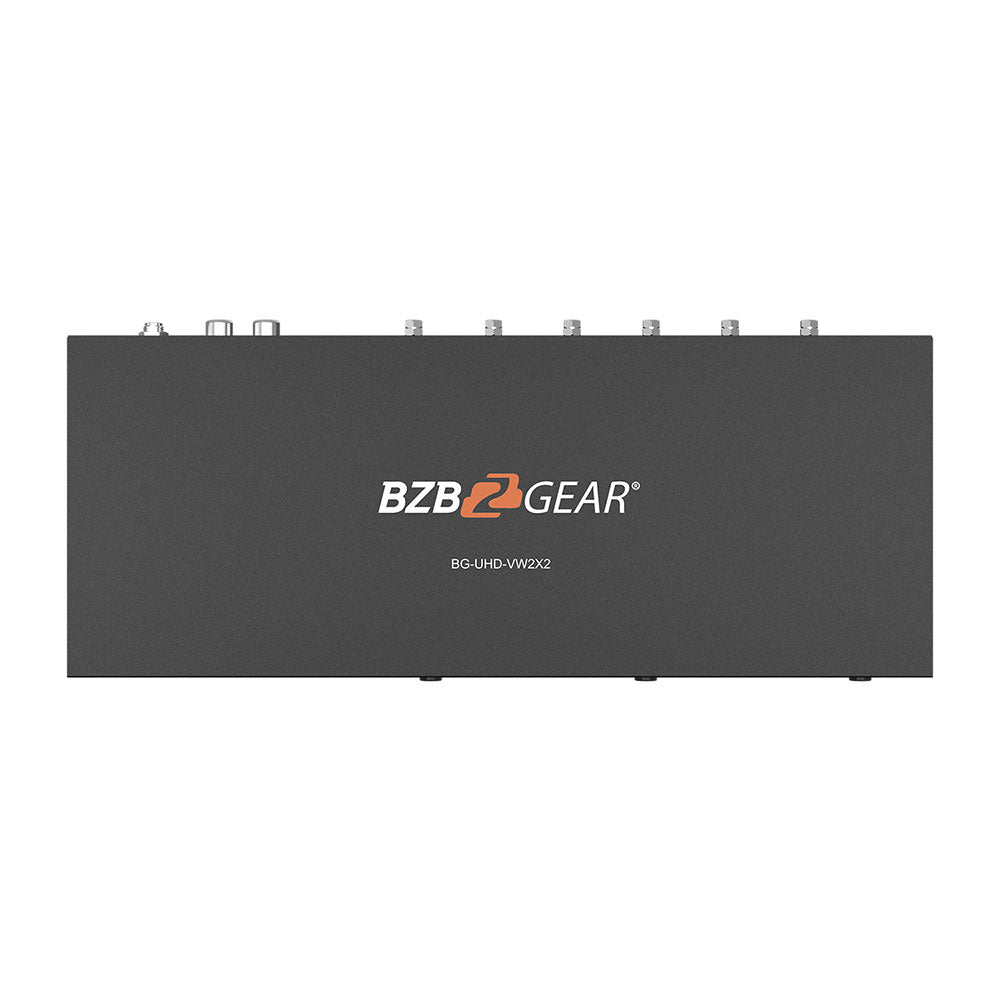

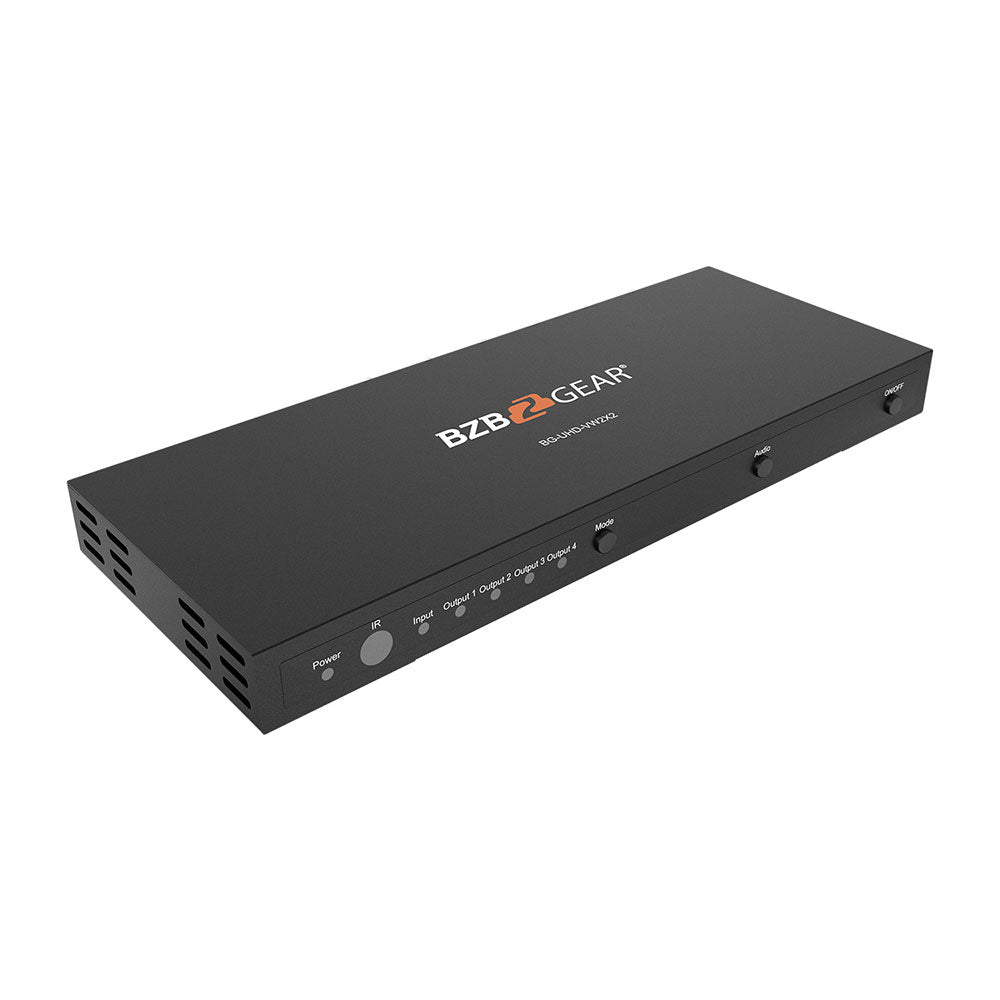

BZBGEAR - 2x2 4K 60Hz HDMI Video Wall controller with Audio
BG-UHD-VW2X2
Payment plans from Affirm, learn more
- BZB Gear
- Shipping Calculated at checkout, most in stock products ship same day
Video walls shouldn’t be difficult to create. That’s why the BG-UHD-VW2X2 video wall processor requires almost no configuration. All users need to do is plug in their devices, select the layout, and adjust for bezel correction with three simple button presses. If needed, 180° output rotation is an option available for inverted displays to help with bezel obstructions.
These features combine to make this video wall processor a great industry-compliant device with no-fuss setup. With its ease of use, this video wall processor is a great and affordable choice for any application that would benefit from an eye-catching video wall display.
Connectivity

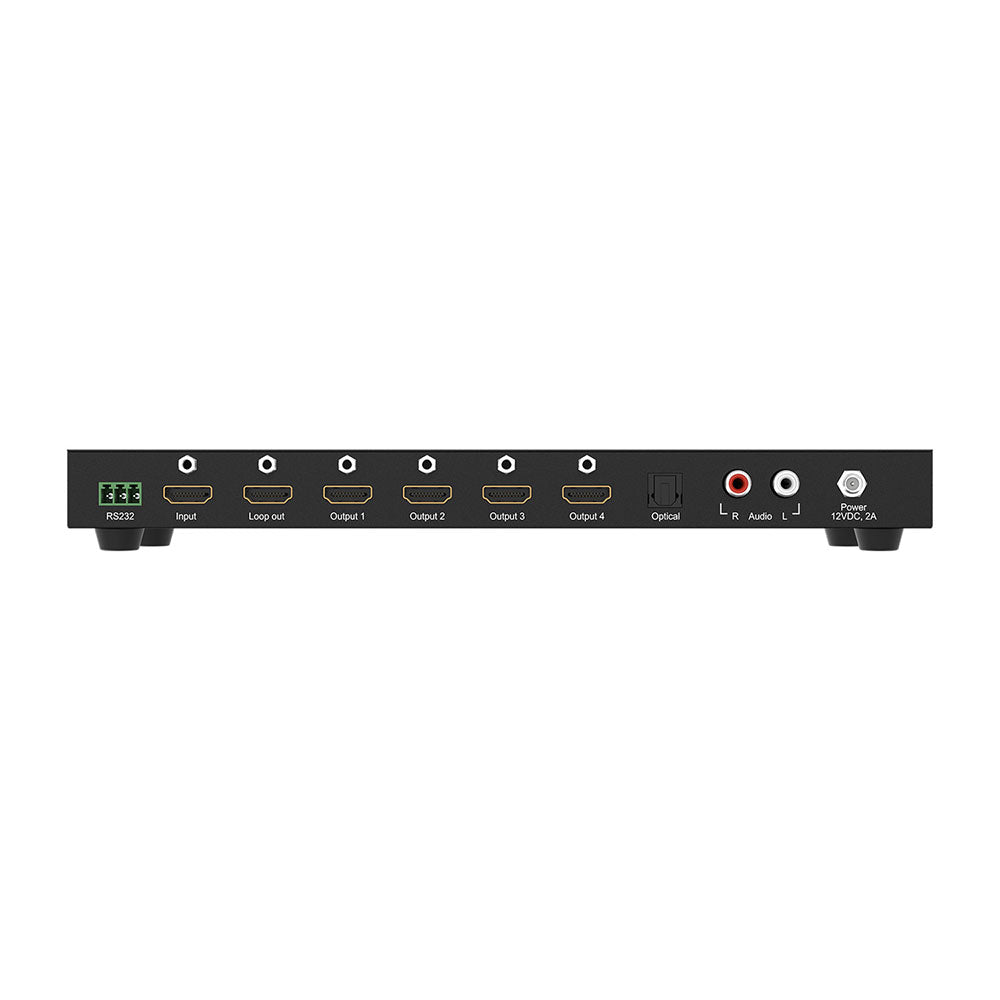

Simplicity is one of the BG-UHD-VW2X2’s greatest strengths. This video processor supports high resolution 4K@60Hz 4:4:4 input resolutions. The four HDMI outputs have a maximum resolution of 1080p@60Hz. This video processor is compliant with both HDCP 2.2 and HDMI 2.0. The device also supports loop out up to 4K@60Hz 4:4:4 for additional local display connectivity. For audio extraction, RCA and TOSLINK audio outputs are available.
Control

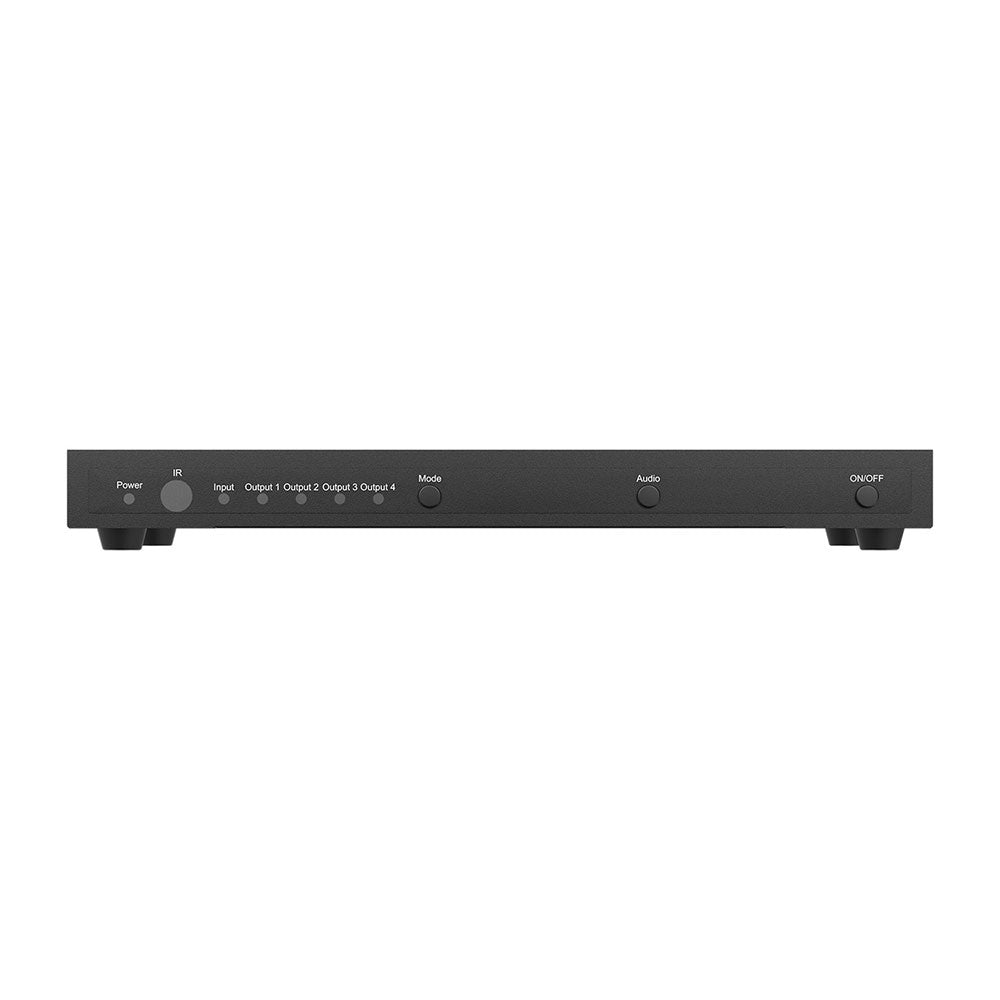

Operators have access to multiple control options for the BG-UHD-VW2X2, including an IR remote control, front panel buttons, and RS-232. On the IR remote, five preset bezel adjustments are available. Operators can also rotate the display 180° for inverted displays if needed. These configurations work for both commercial displays and for consumer-based TVs.
The BG-UHD-VWP-1X4 supports a variety of four-screen layouts, including 1x1, 2x2, 1x2 (H), 1x3 (H), 1x4(H), 2x1 (V), 3x1 (V), and 4x1 (V). Mirror mode (180°) is only available for 2x2 layouts.
