BZBGEAR - 3G SDI 1X4 SPLITTER
BG-3GS14
Payment plans from Affirm, learn more
- BZB Gear
- Shipping Calculated at checkout, most in stock products ship same day

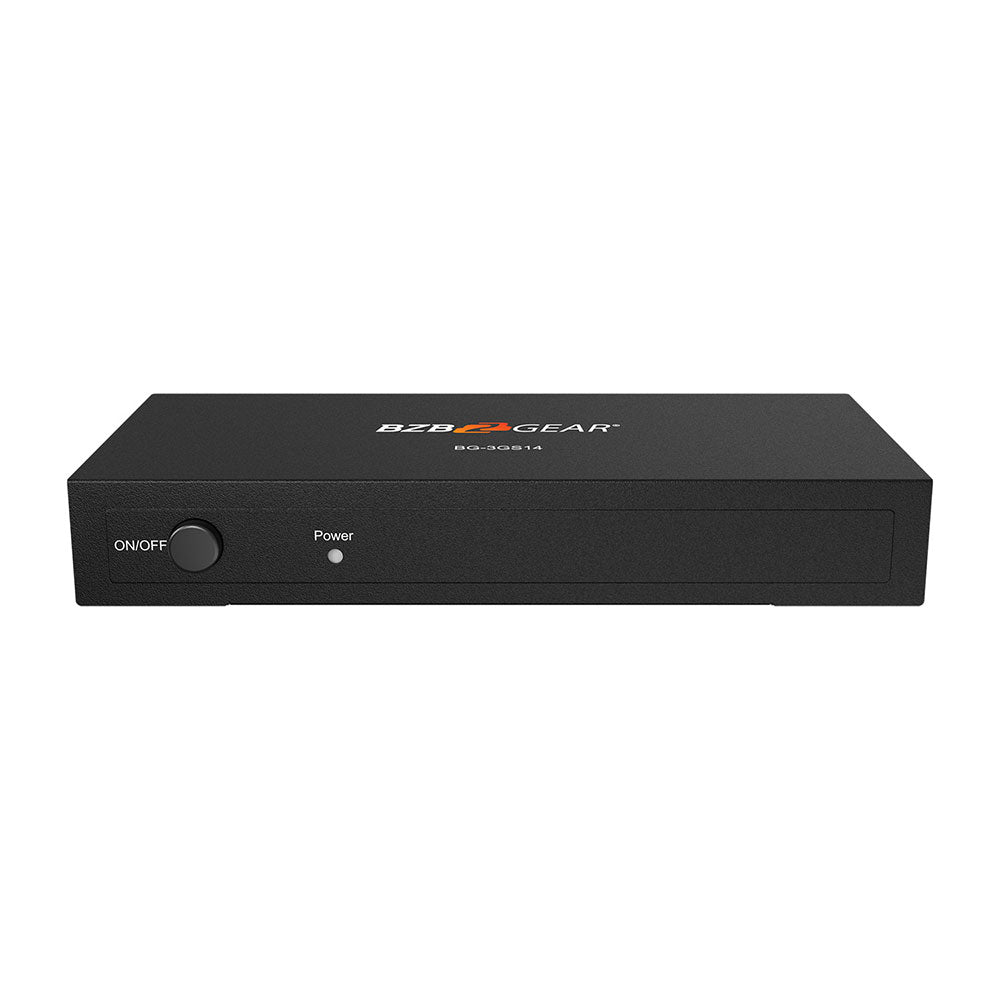

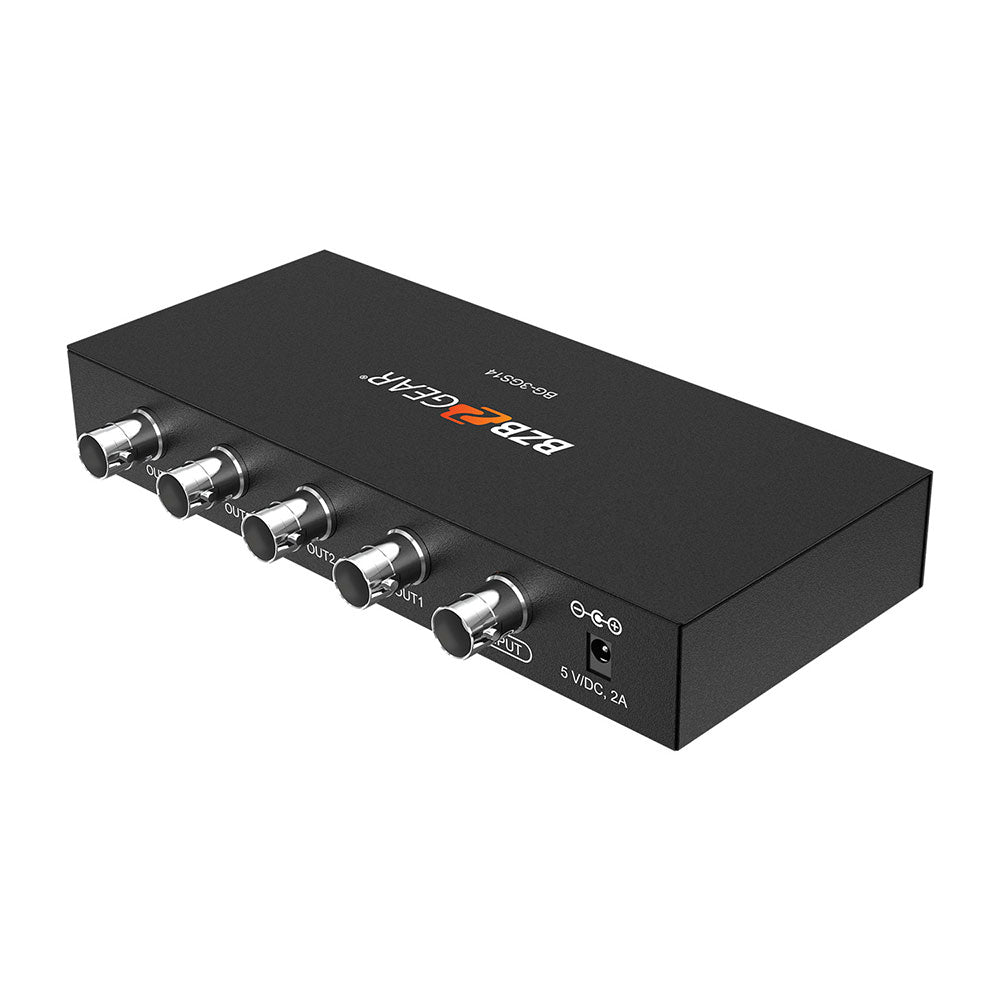

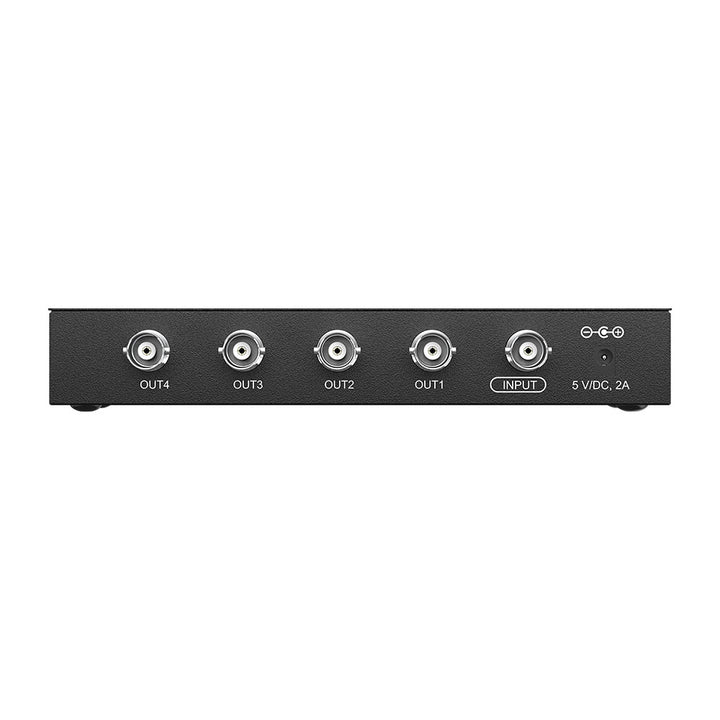

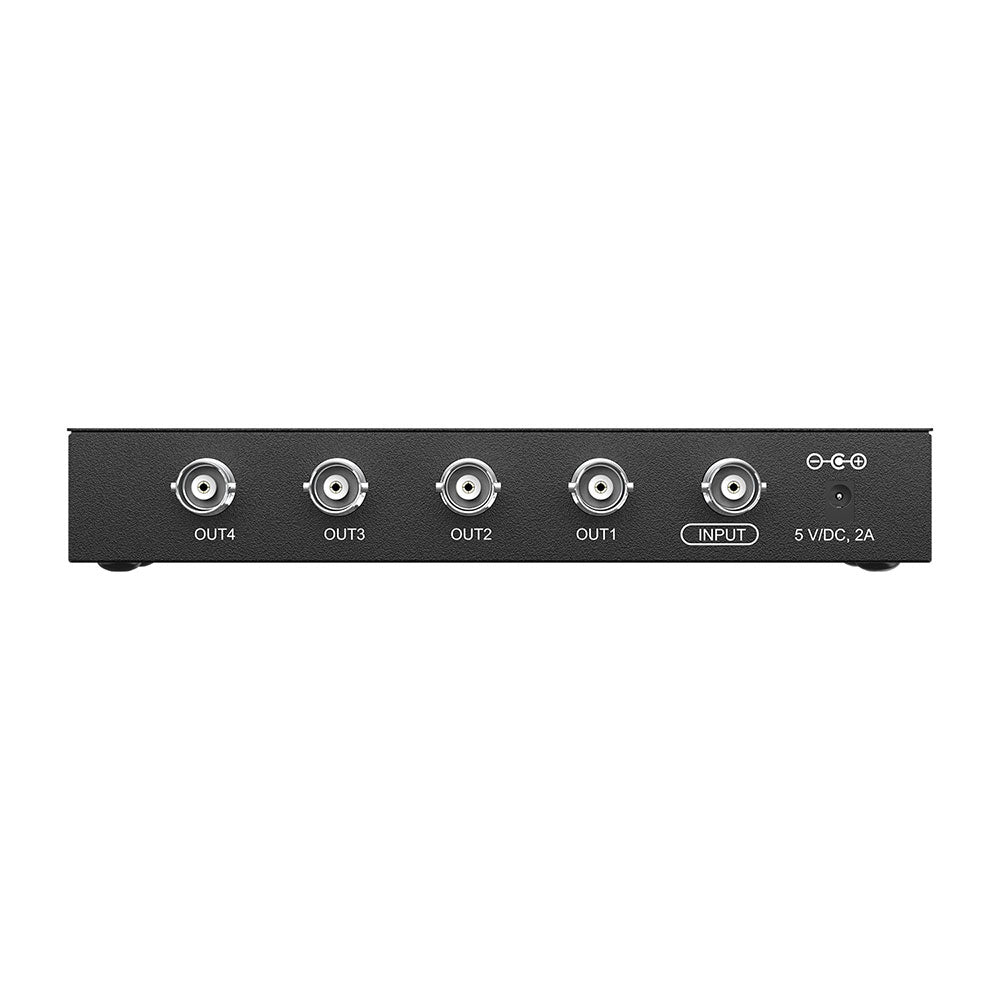

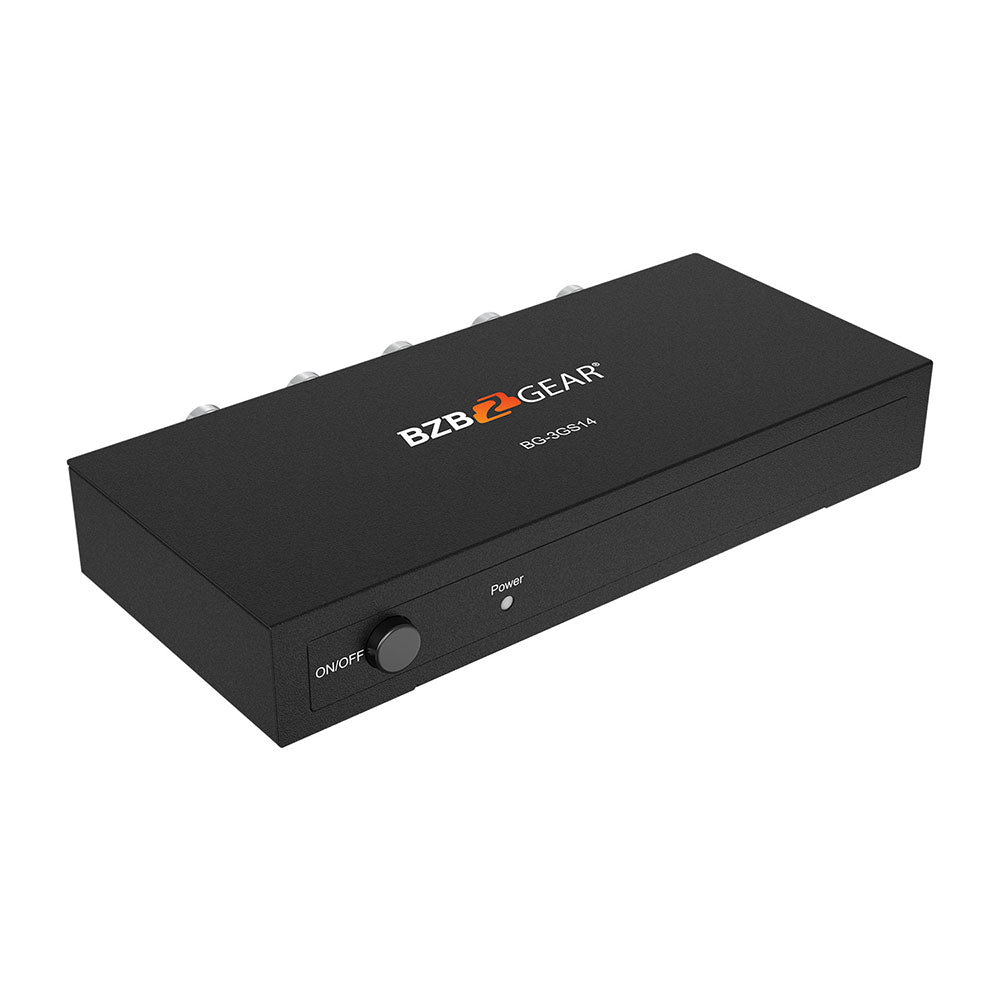

The BG-3GS14 is a 1x4 3G-SDI splitter that splits one SDI input to four SDI outputs simultaneously. With signal relocking feature it also extends video signal for a long distance. This reliable and powerful tool providing consistent connections in a variety of different scenarios, like adding multiple outputs for monitoring video feed on a separate displays, splitting the signal and cascading multiple displays for large video distribution system or just to extend SDI signal.
Connectivity and Features
The BG-3GS14 supports a maximum resolution of 1080p@60Hz with 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8 bit, 10 bit, and 12 bit.
This splitter can also maintain SD signals at ranges of up to 200m. For HD signals, this distance reduces to 120m. For 3G, this distance drops to 80m. Multiple video resolutions are also available with this unit, including SD 480i, 576i and 625i, HD 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60. The device also supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2 or 4:2:0 sampled.
Quality SDI connectors provides reliability due to their interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.
