BZBGEAR - 4K UHD HDMI 2.0 3x3 Video Wall Processor with HDCP 2.2 and IP/RS232 Control

This 3x3 4K video wall processor is a great fit for anyone looking to create video walls that can switch between two sources. This device also features matrix switch mode, which enables operators to switch between sources for each of the nine displays. The processor is capable of generating dual video walls with various orientations.

Connectivity & Features

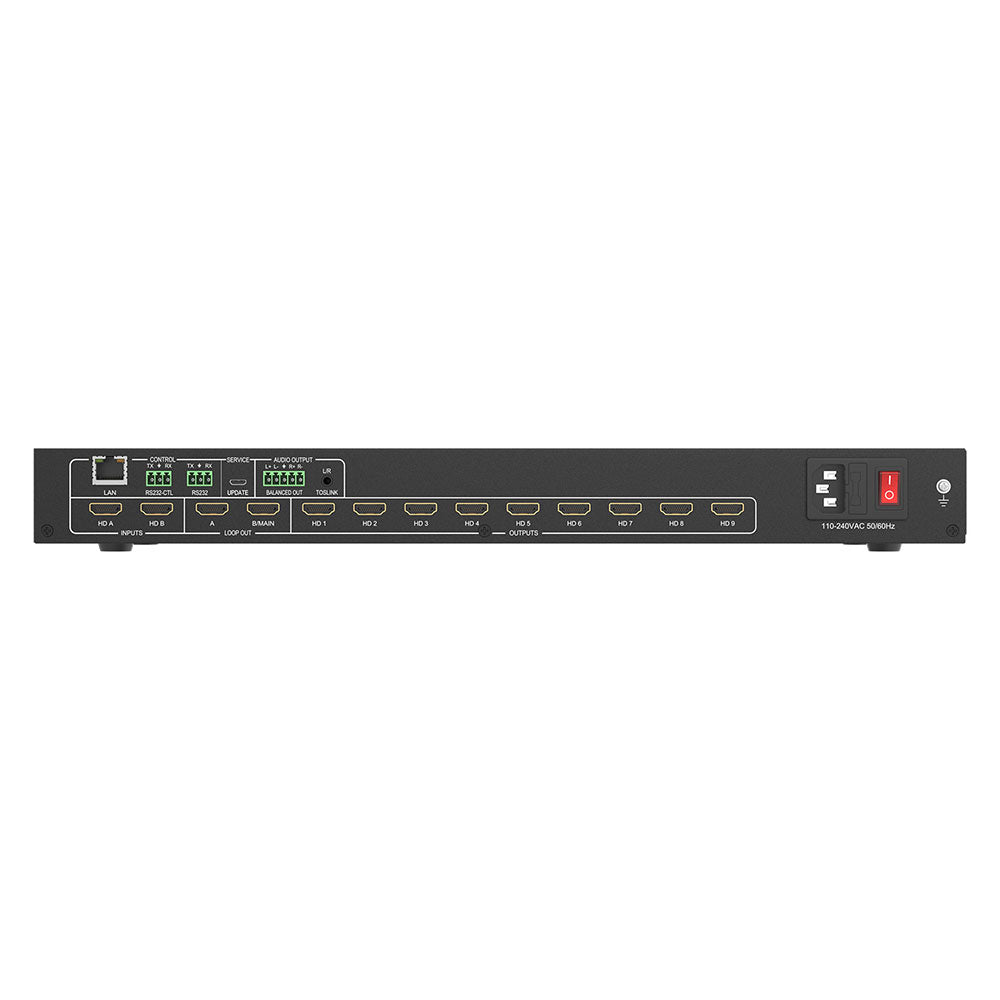

With two HDMI inputs, the BG-UHD-VW29 can support input resolutions of up to 4K@60Hz. The nine HDMI outputs support 1080p@60Hz resolution. The HDMI ports on this device are HDMI 2.0 and HDCP 2.2/1.4 compliant. Each HDMI connection supports 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio formats. Two HDMI loop outs provide expanded connectivity.

The processor also features a balanced 5-pin phoenix connector as well as 3.5mm stereo TOSLINK audio outputs for audio extraction. In addition to supporting 3x3 video walls, the processor can enable operators to utilize picture in picture (PIP) features. Operators can also reconfigure the processor to support dual video walls in orientations such as 2x2, 1x3, and 1x3.

The flexibility of the BG-UHD-VW29’s features and connectivity make it a great choice for a variety of situations. The superior quality supported by the processor will enable anyone to create video walls with eye-catching results.

Control

The BG-UHD-VW29 can be configured and controlled using a PC Utility that supports IP and RS-232 connections. HDMI CEC provides power and volume control for compatible monitors. The PC Utility features 16 available predefined EDID options. The PC Utility also allows input and output adjustments to the video wall, including dual-mode bezel compensation and 180° image rotation.

The versatility of control that operators have over the BG-UHD-VW29 makes it a great choice for anyone looking to create high quality, versatile video walls.
