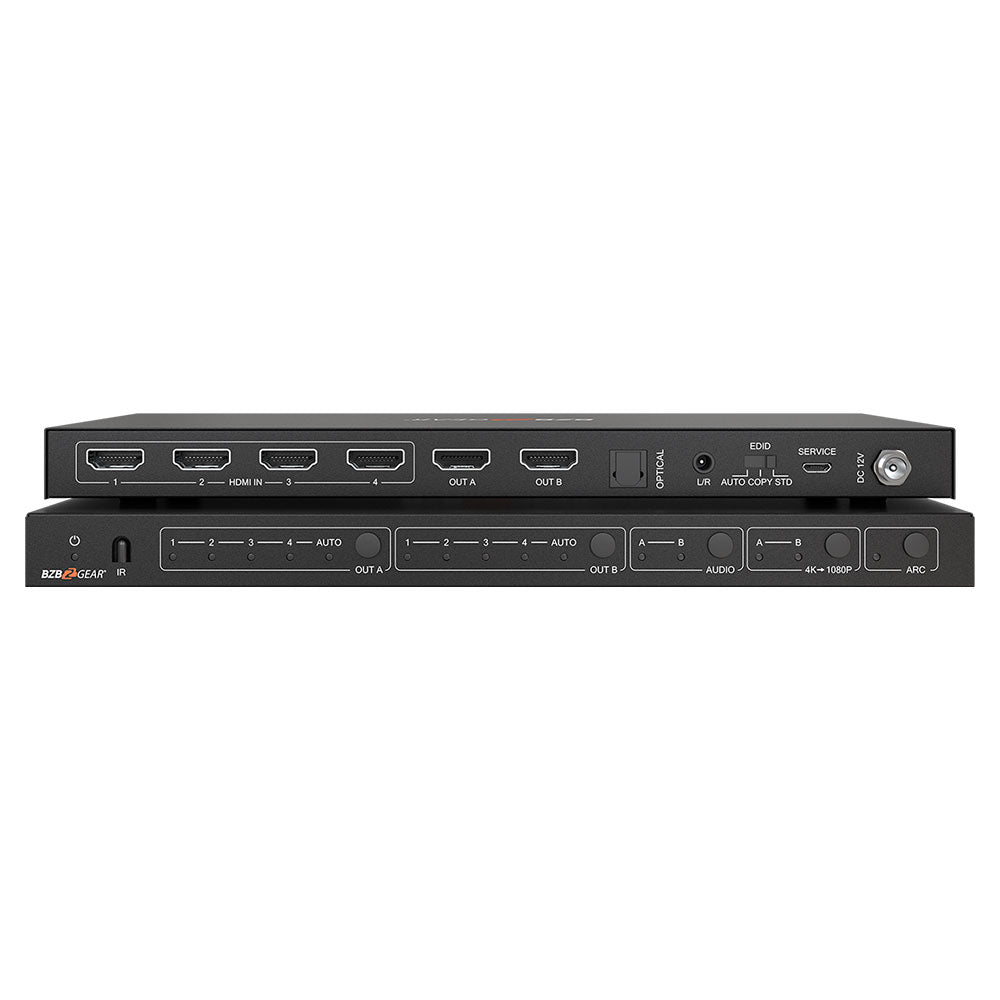

BZBGEAR - 4X2 HDMI 4K 60Hz 18Gps Matrix Switcher with Audio/Downscaling Support
BG-UHD-42M
Payment plans from Affirm, learn more
- BZB Gear
- Shipping Calculated at checkout, most in stock products ship same day
The BG-UHD-42M is a 4K HDMI matrix switch with four HDMI inputs and two HDMI outputs. This unit can be used to route any of the four HDMI inputs to either of the two HDMI outputs. This matrix is a great choice for anyone looking to share up to four 4K sources between two TVs. Applications include conference rooms, sports bars, restaurants, and auditoriums.
Connectivity and Features
The BG-UHD-42M supports a maximum resolution of 4K@60Hz 4:4:4. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this device are HDMI 2.0a and HDCP 2.2 compliant. Both HDMI outputs support downscaling from 4K to 1080p, ensuring compatibility with legacy displays.
Dolby Vision, HDR 10+, HLG, and CEC are supported. With optical and analog outputs, the BG-UHD-42M provides audio de-embedding from each HDMI input. Audio Return Channel (ARC) is supported.
Control

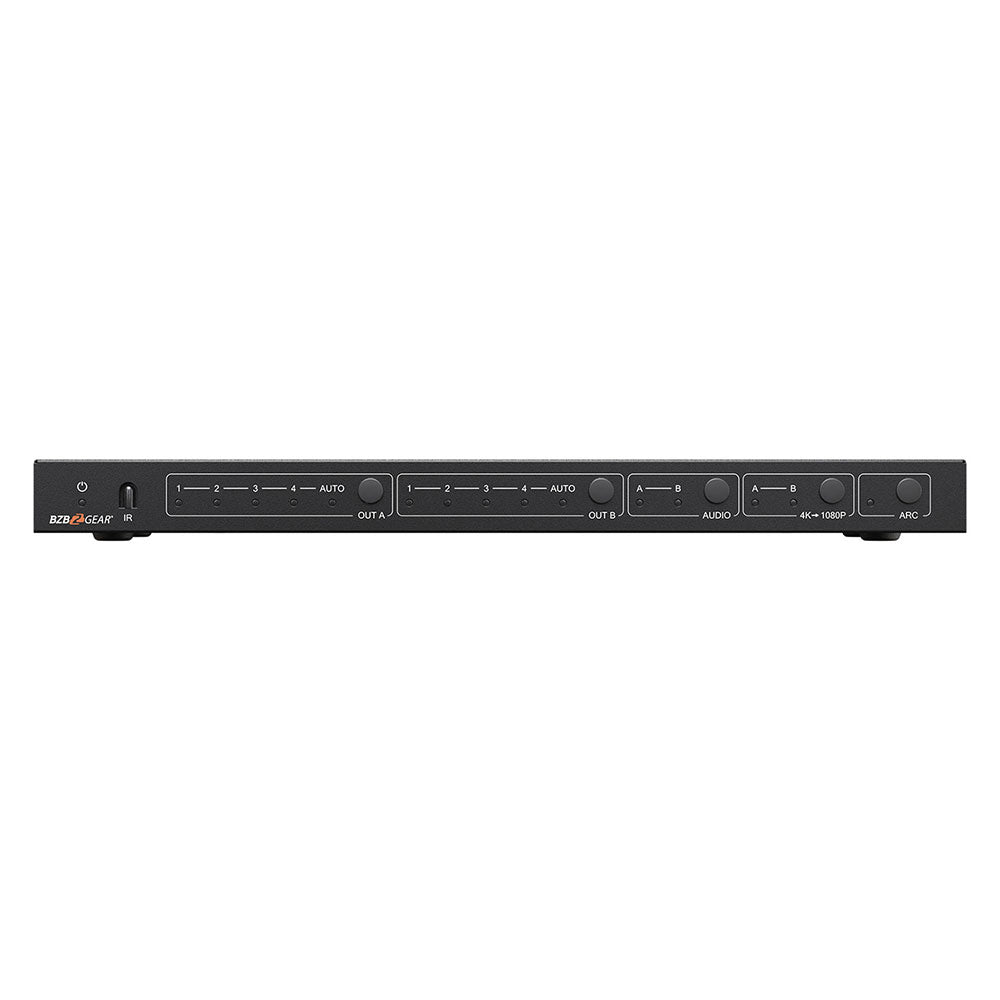

The advanced EDID management of the BG-UHD-42M increases reliability and makes it easy to overcome HDMI connectivity issues. The matrix can be controlled using the front panel buttons or with the included IR remote control.
