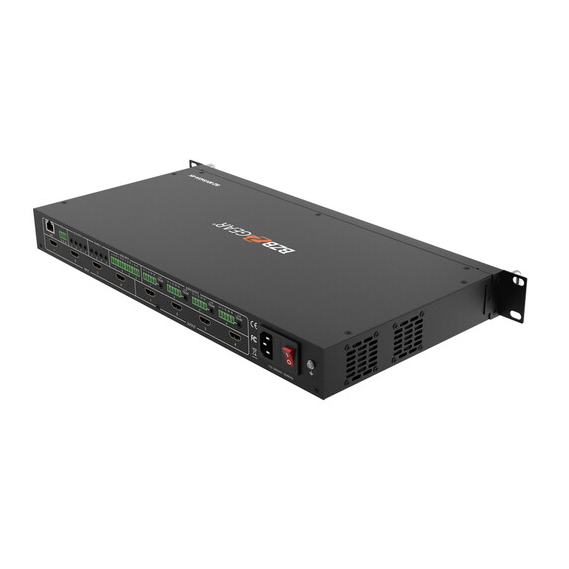

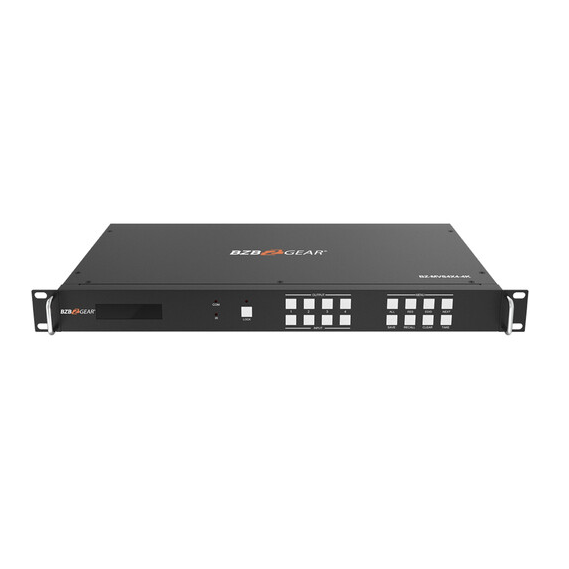

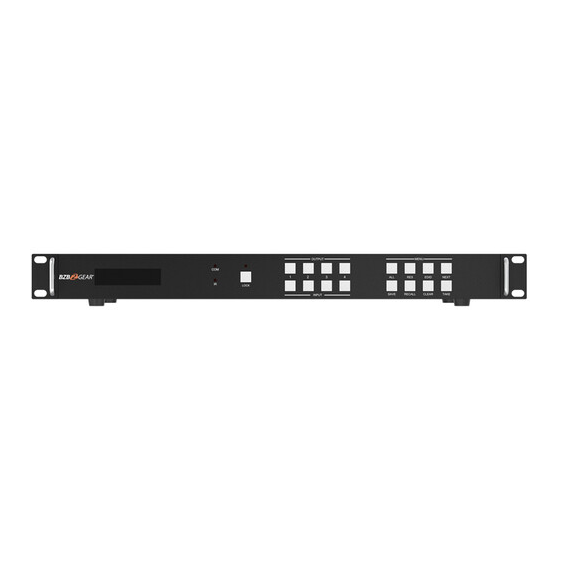

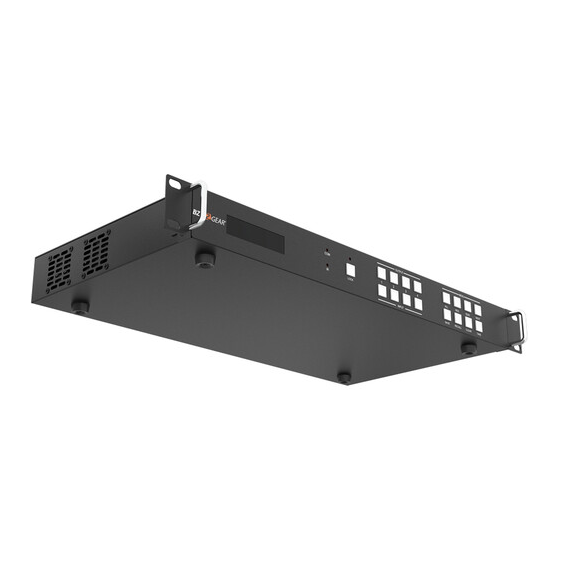

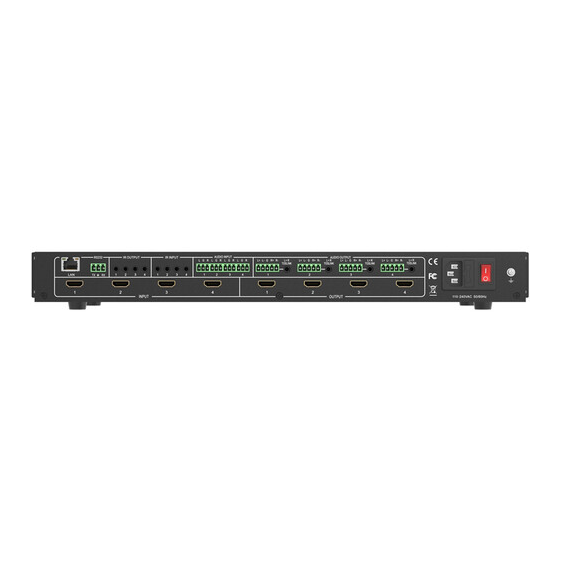

BZBGEAR 4X4 4K 18Gbps UHD HDMI Video Wall Processor & Seamless Matrix Switcher with Scaler/IR/Audio/IP and RS-232

Add a matrix switcher to your video wall, event space, or video distribution environment with this 4x4 HDMI 4K Video Wall Processor Matrix Switcher/Scaler from BZB Gear. The switching/scaling matrix allows you to connect up to four HDMI 2.0 sources with up to UHD 4K60 resolution to four individual 4K displays.

This unit supports HDCP 2.2, EDID management, and can be controlled via IR remote as well as via RS-232 or IP control over a LAN. There are also four terminal block analog audio inputs to insert audio into your HDMI signal, and there are four terminal block analog outputs to extract embedded audio from your HDMI inputs for output to a mixer or speaker system.

Key FeaturesHDMI 2.0 and HDCP 2.2 compliant, EDID management supportSupports 18 Gb/s video bandwidthSeamless switching, video wall functionHDMI audio extraction and audio insertion from analog inputsResolution support up to UHD 4K60Supports audio matrix and IR matrix functionRS-232, IP, IR, and front-panel button matrix controlsSupports EDID and CEC managementFront-panel, WebGUI, IP, IR remote, and RS-232 control
