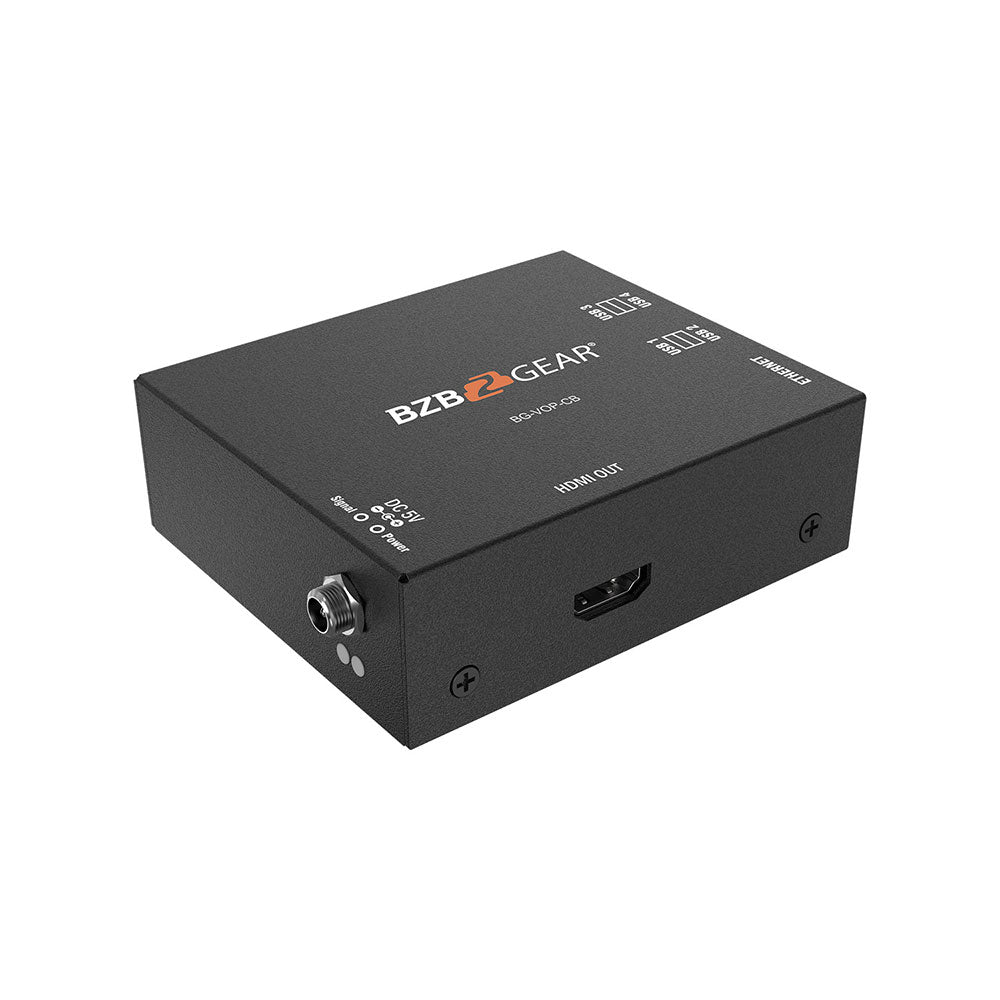

BZBGEAR - Smart Controller for HDMI over IP series

The BG-VOP-CB Smart Controller provides system management for BZBGEAR’s BG-VOP-MT transceivers. In addition to managing devices and serving as the gateway for the web interface, this TAA-Compliant unit allows users to monitor the IP-based BG-VOP-MT transceivers in real time. This device features high expandability allowing even a single unit can serve up to 1024 transceivers at the same time.

With a web-based GUI on your desktop computer, users can drag and drop any source to any connected display, build video walls, and create custom on-screen displays (OSD).

Connectivity

The BG-VOP-CB is capable of continuous system monitoring and self-recovery. This includes real-time event notifications and alerts. A free iOS app is available for mobile control as well. With a simple easy to use interface, this app allows easy control of basic system functions such as mapping and preset recall.

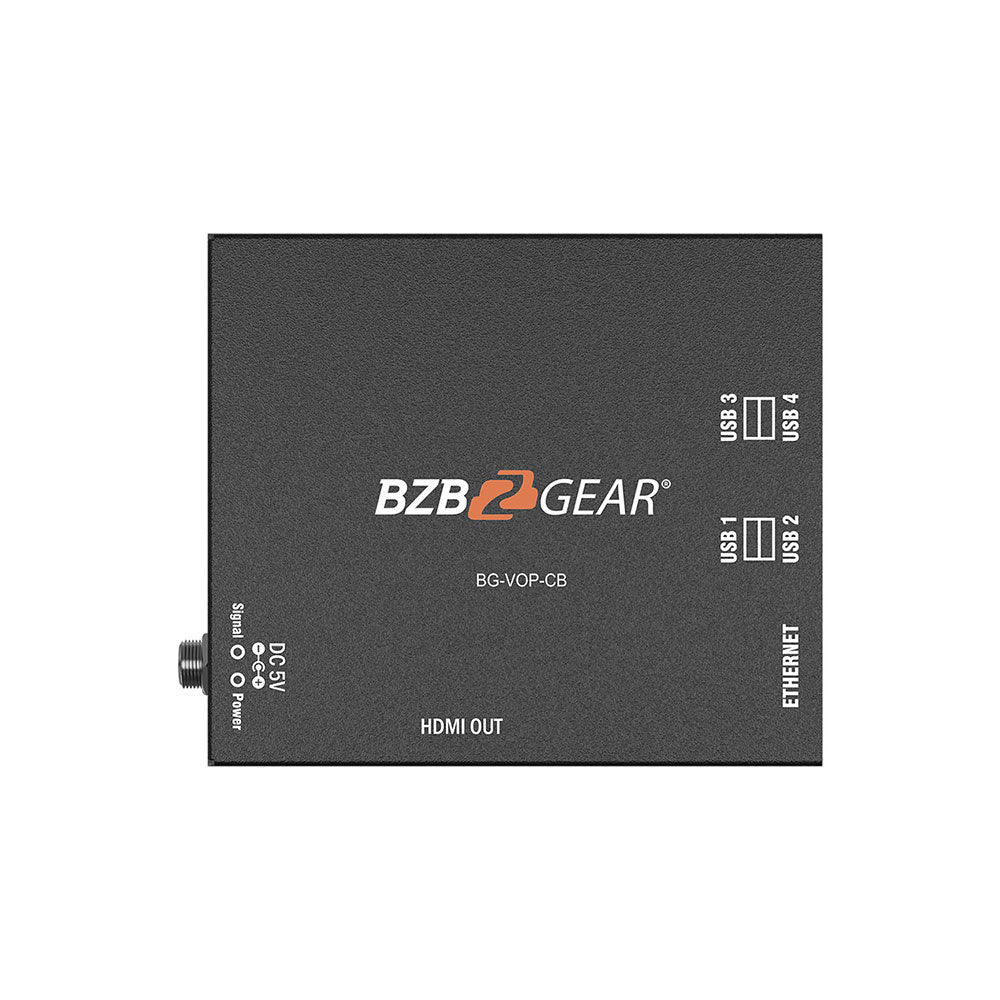

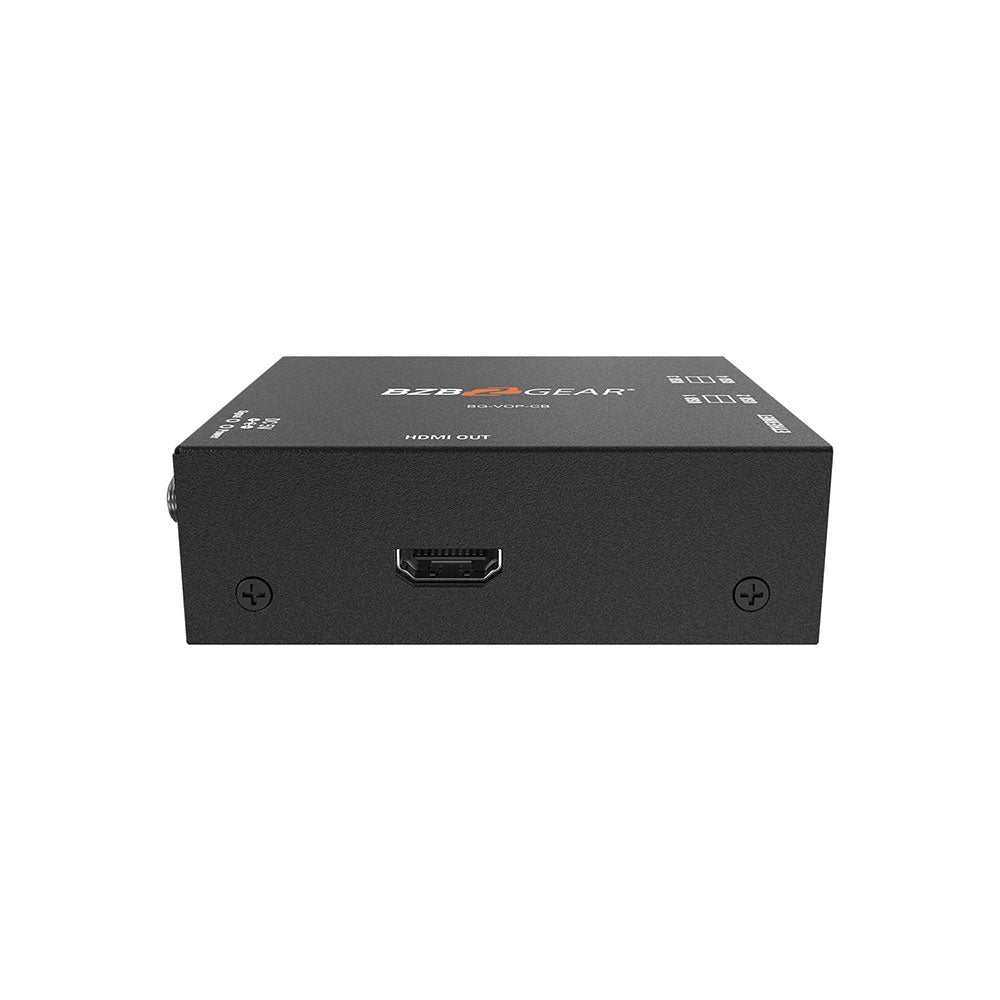

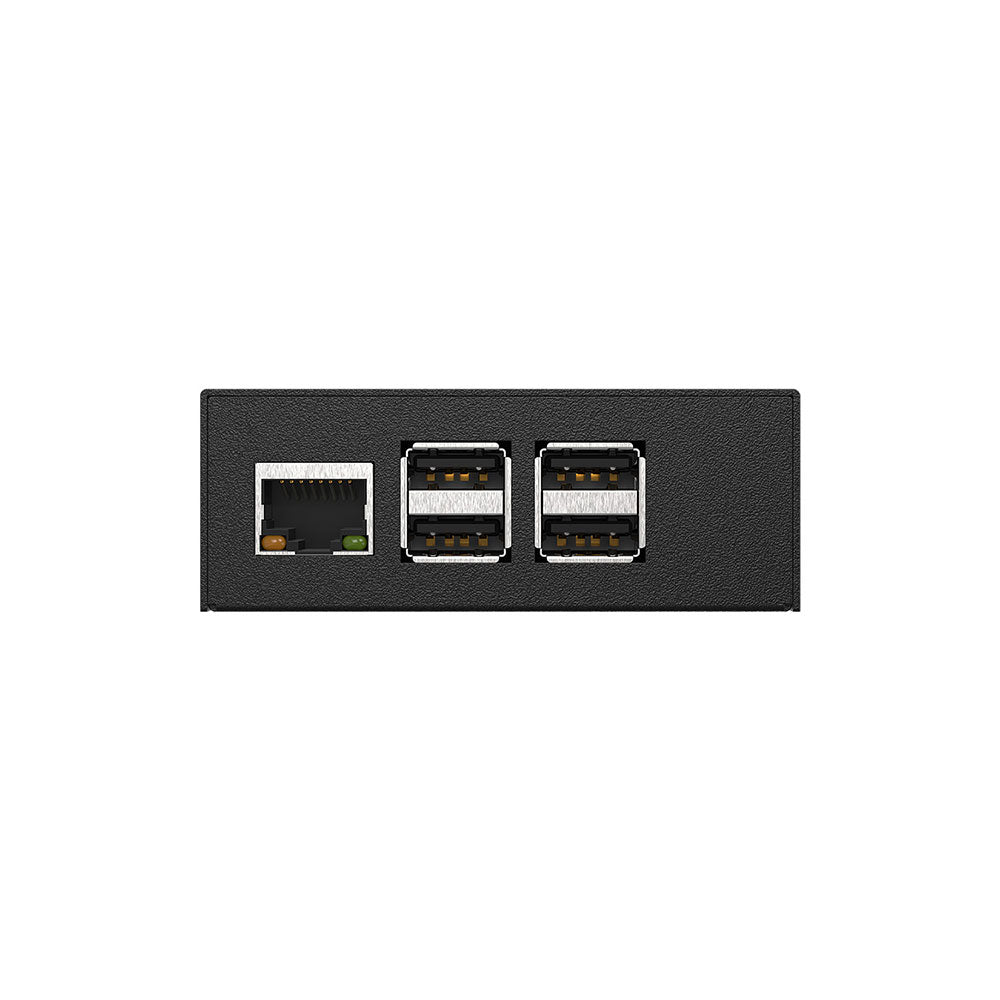

This unit uses a 5V DC power adapter, an HDMI connector, and an Ethernet port for system connectivity. The simple connections allow stress-free installation and servicing.

Storage and Ergonomics

In case of temperature fluctuations in the operating environment, the BG-VOP-CB can safely operate between temperatures of 0~40°C [32~104°F]. The compact form factor makes placement easy with dimensions of just 90 x 78 x 29 mm.

Additional Details

Please review our guide on AVoIP Network Switch Requirements, which is essential for ensuring the reliable functionality of the device.

Given its features, interface, and ease of use, the BG-VOP-CB provides a reliable and cost-effective IP video solution for audio-visual professionals. It’s also perfectly suited for distributing audio-visual features across large campus areas with multiple buildings.
