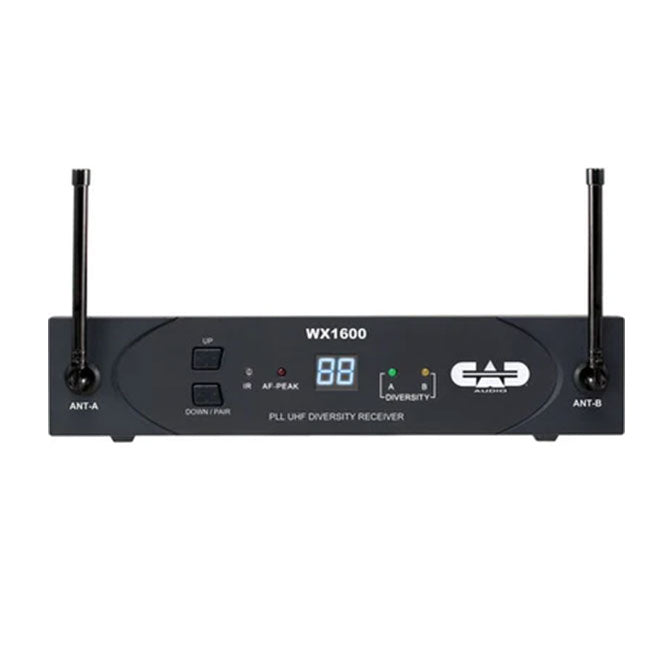

CAD Audio RX1600G - UHF Receiver for WX1600 Wireless System

After extensive research and development, CAD Audio presents the RX1600 UHF 100-Channel Frequency Agile Receiver, a state-of-the-art device designed specifically for capturing high-quality audio in a variety of settings. This versatile receiver is ideal for use in diverse venues, catering to the needs of singers, public speakers, and theatrical performances, among others.

The RX1600 UHF Receiver is engineered with a broad frequency response of 40Hz to 15kHz, ensuring the capture of a wide range of sound frequencies. This feature, coupled with an impressive dynamic range of 109dB, guarantees the delivery of clear, crisp, and detailed audio, regardless of the environment.

One of the standout features of this receiver is its Scan-Link Technology. This innovative feature performs an instantaneous scan of the RF environment, automatically linking to the receiver for optimal performance. This ensures a seamless and uninterrupted audio experience, free from potential interference.

Another key feature is the CADLock, which provides automatic tone-encoded squelch to eliminate any unauthorized interference. This ensures that your audio remains clear and undisturbed, even in the most challenging of RF environments.

The RX1600 UHF Receiver operates within the Frequency Band Band G - 542 to 564 MHz, providing a wide and flexible range for various audio applications.

To top it all off, the RX1600 UHF Receiver is housed in a robust metal chassis. This durable shielded enclosure not only protects the internal components but also includes rack ears for easy mounting. This makes the RX1600 UHF Receiver a reliable and durable choice for all your audio needs.

In conclusion, the RX1600 UHF 100-Channel Frequency Agile Receiver from CAD Audio is a sophisticated, high-performance device that offers unparalleled audio capture capabilities, making it a valuable addition to any professional audio setup.

Features:

• UHF Frequency Band
• 40Hz to 15kHz Frequency Response
• 100-Channel Frequency Agile
• Automatic Channel Configuration
• 1/4" and XLR Outputs on Receiver
• Metal Chassis Receiver

Specifications:

Channels: 100

Frequency Range: Band G: 542-564 MHz

Audio Frequency Response: 40Hz to 15kHz

Dynamic Range: >109 dB

Maximum Output Level (Balanced): -3dBV

Output Impedance:

• Balanced: 350ohms
• Unbalaced: 250ohms

Outputs:

• 1x 1/4" (6.3mm)
• 1x XLRM

Power Requirements: 12-15V DC, <500 mA

Dimensions: 9.5 x 4.5 x 1.6" (24.1 x 11.4 x 4cm)

Weight: 12.3oz (348.7g)
