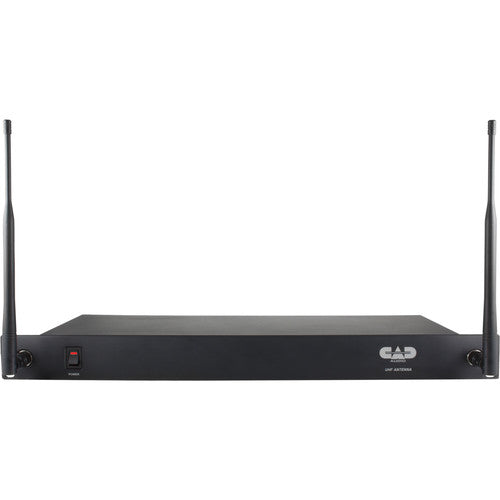

Overview of CAD Audio DA4090 - Wide Antenna System & Power Distribution System

The DA4090 is a high quality antenna distribution solution for use in pro audio applications such as live performance - musical/theatrical – HOW and audio-video integration.

Designed with a net 0dB amplification thereby eliminating split-attenuation - Minimal amplification is applied to reduce the risk of unwanted intermodulation interference.
Integrated DC power distribution conveniently distributes 12VDC to drive up to four CAD Audio receivers.

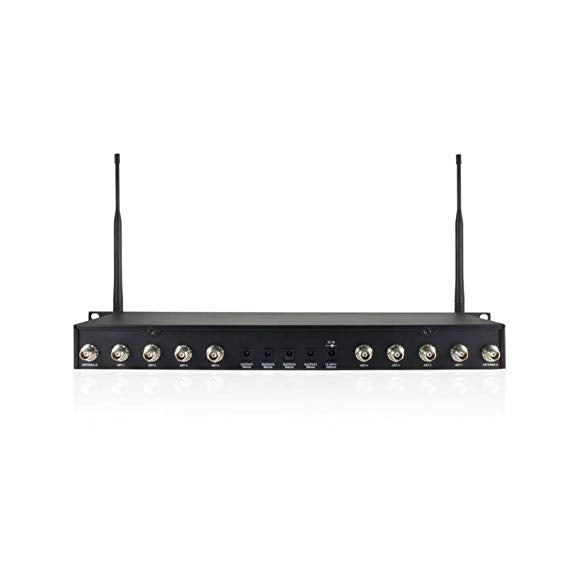

All antenna connectors are BNC-type for easy plug and play compatibility.
The DA4090 comes complete with RF patch cables for four receivers, rack ears and the appropriate power cables.

Specifications:

  • Frequency Range: UHF 470 - 960MHz
  • Impedance: 50Ω
  • Gain: 0dB
  • AC Power: 100 - 240V, 60Hz
  • DC Output DC: 12 - 15V, 3.6A
  • Antenna Power: 12V
  • Dimensions: 16-1/2” x 7-13/16” x 1-3/4”
  • Weight: 3lbs 7oz (1.56kg)
